V2 Truss End Adapter Plates
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry

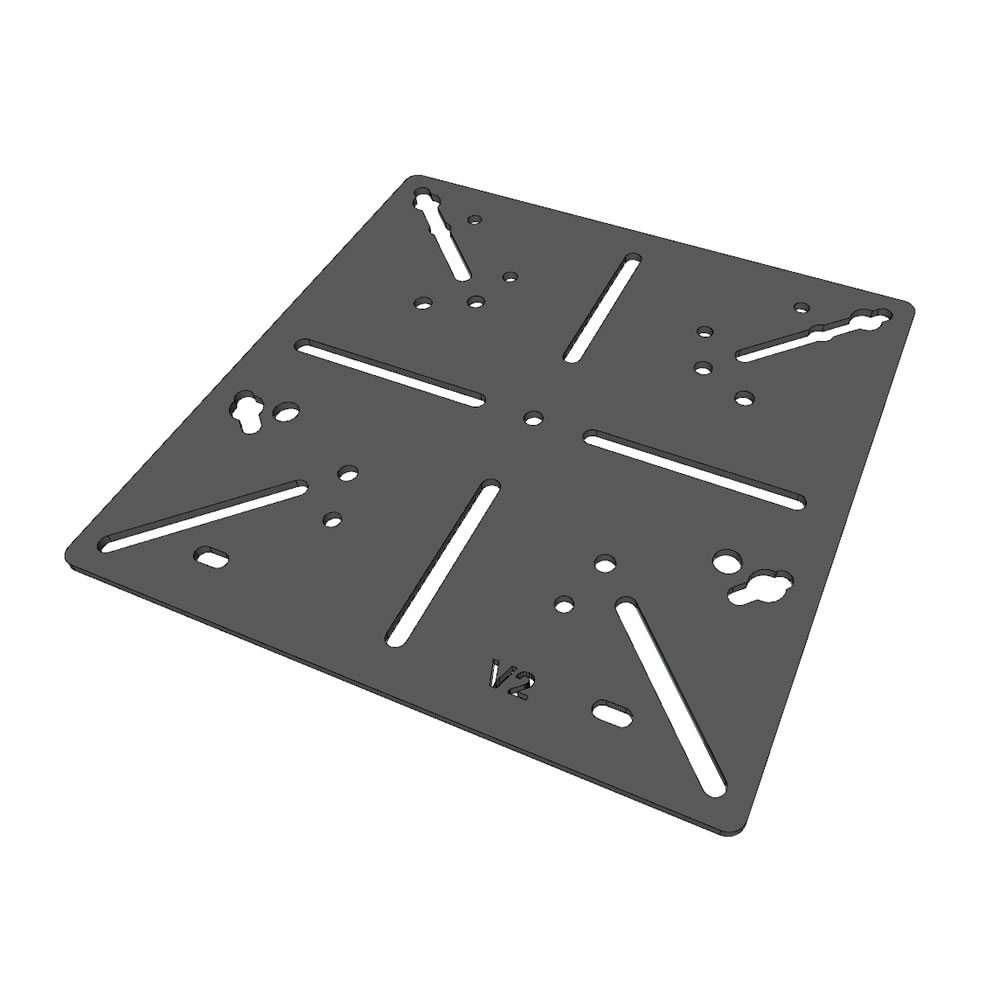

Truss tower / drop end plate adapters suitable for attaching a range of moving lights and static fixtures.

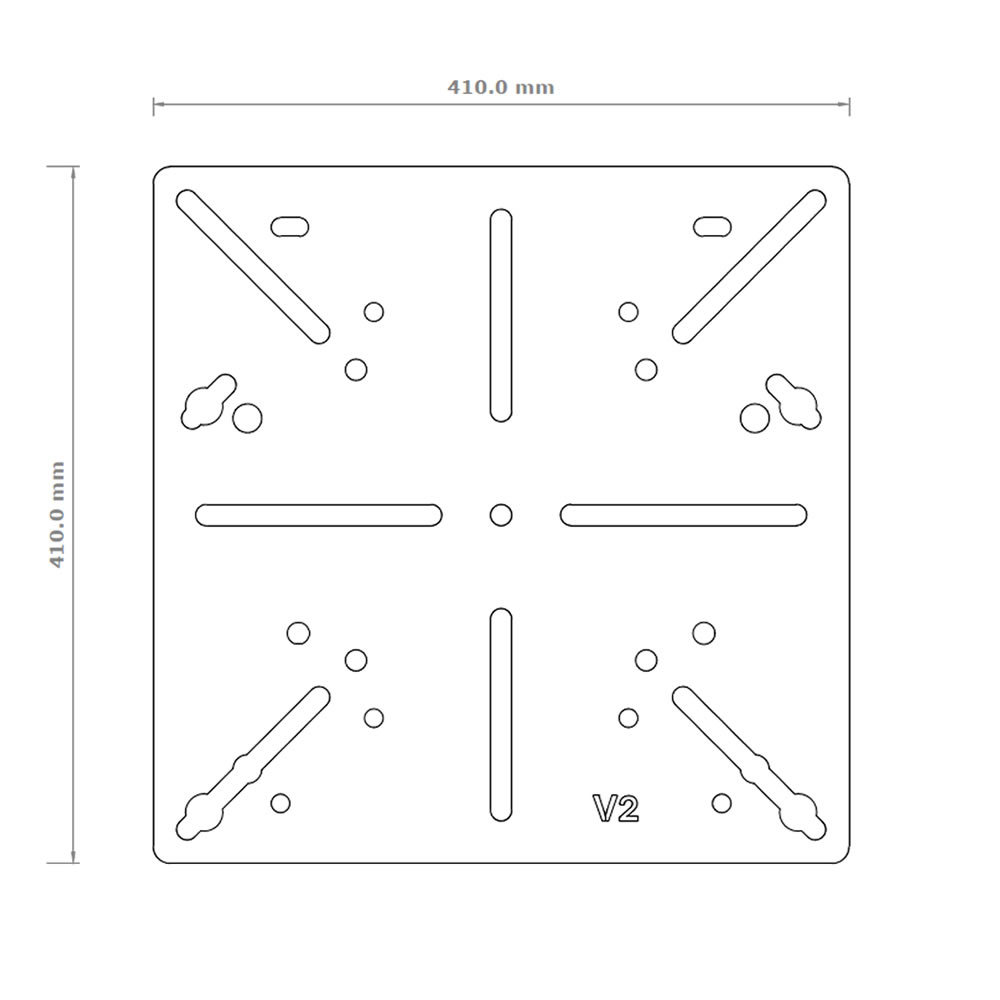

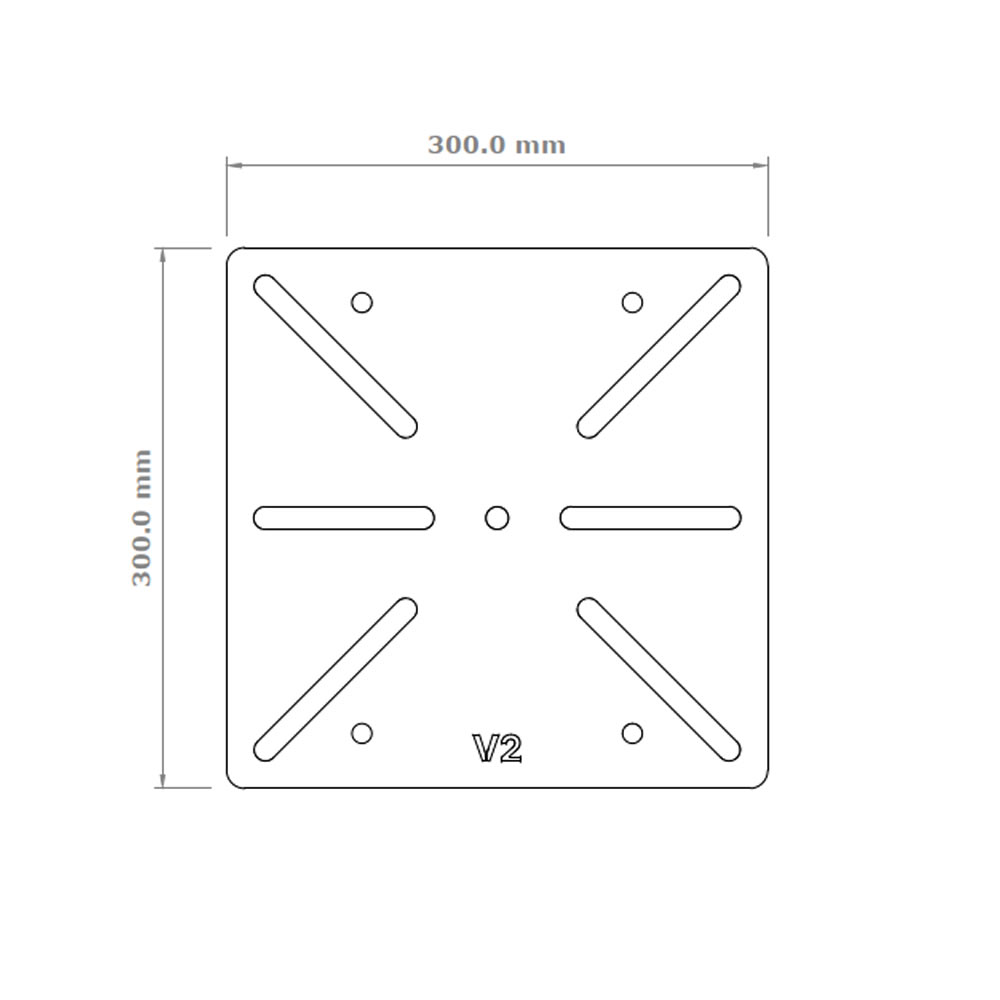

Available in 400mm and 300mm sizes these are compatible with a range of truss types, including:
Half Eggs / Forks
- Litec QX30 Box
- Litec QX40 Box
- Litec TX30 30cm Triangular
- Litec RF40 Rectangular
- Prolyte H30V 30cm Box
- Prolyte H40V 40cm Box
- Prolyte X30D 30cm Triangular
- Prolyte S36 Rectangular
- Prolyte H40R Rectangular
- Slick Mini Beam Rectangular
- JTE Supertruss 30cm Box
Bolted
- GP 12" / 30cm Box
- GP 15" / 38cm Box
- GP 20.5" / 52cm Box
- Litec QX30 Box
- Litec QX40 Box
Spec sheets & CAD blocks available on request.
Truss Specs
- Truss mounting slots: 12mm
- Rectangular Truss Holes: 20mm
Moving Light Mounting
- Omega Clamp Spacing: 85 - 340mm
Weight
- 400mm - 6kg
- 300mm - 2.5kg
Spec sheets & CAD blocks available on request.
