MDG ATMe Haze Generator
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry

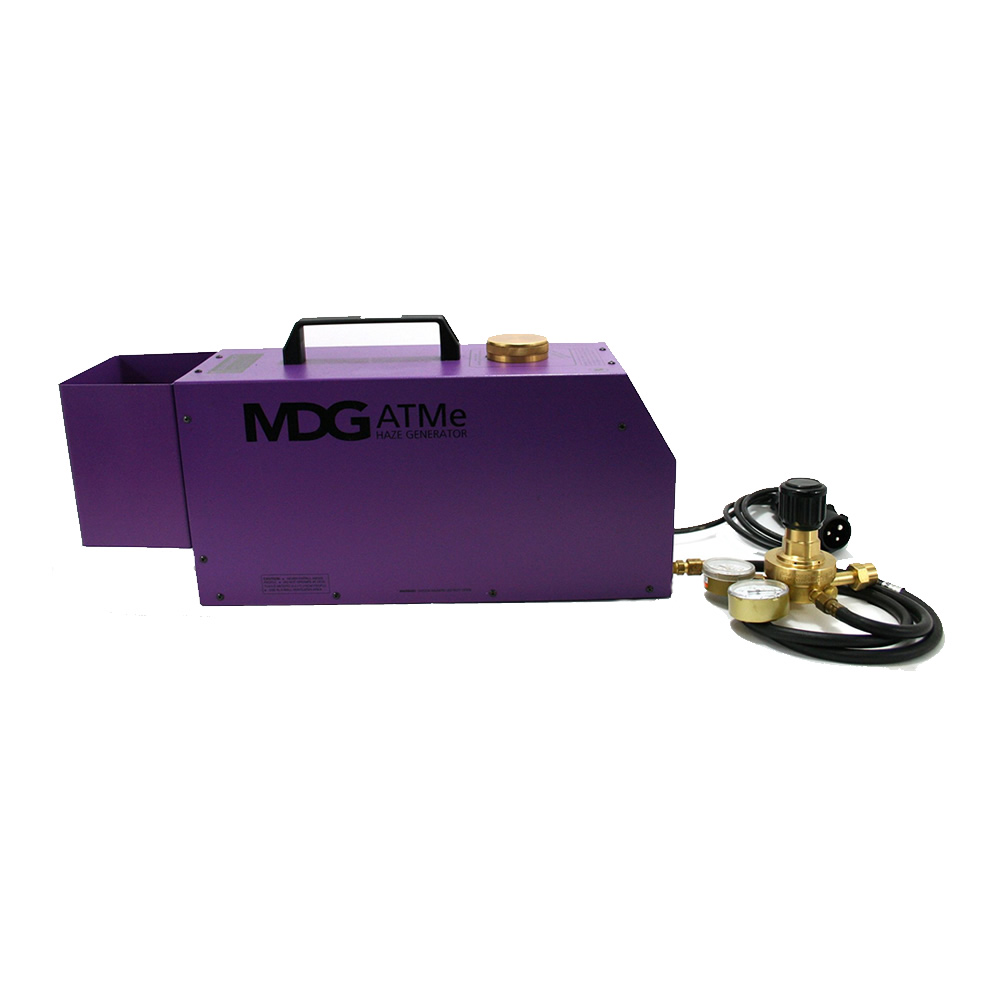

The MDG ATMe high output haze generator is the evolution of the time-honoured MDG ATMOSPHERE APS, the industry's standard CO2 driven hazer for almost two decades.
The ATMe features increased haze output with lower power, fluid and CO2 consumption.
DMX on-board, with clear LCD user display showing current haze status and gas pressure levels.
The ATMe unit unlike the older Atmosphere APS will internally vary the CO2 pressure required to achieve the desired have level, either locally or via DMX.
| AC Power | |
| Input Voltage: | 100-250 VAC, 50/60Hz |
| Power: | 715W |
| Current: | 2.9A @ 240V |
| Connector: | 16A Ceeform |
|
| |
| Fluid | |
| Type: | MDG Neutral Fog Fluid ONLY M.S.D.S. available on request |
| Capacity: | 2.5L |
| Consumption: | 100 ml per hour at 40 psi 55 ml per hour at 20 psi |
| Particle size: | 0.5 to 0.7 microns |
|
| |
| Gas | |
| Type: | Industrial Grade CO2 |
| Pressure: | 60 psi |
| Consumption: | 0.36 kg per hour at 40 psi 0.18 kg per hour at 20 psi |
| Environmental | |

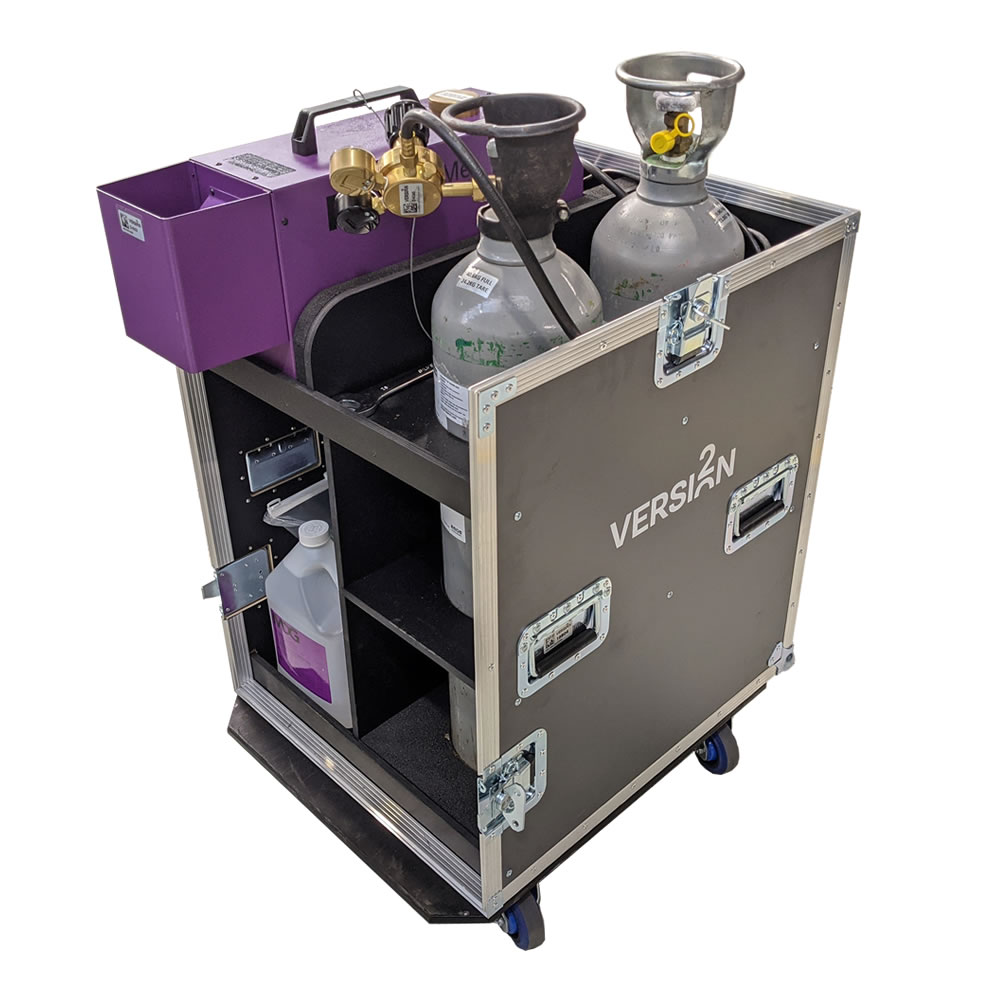

| Size: | Flight Case – 841 x 911 x 540mm |
| Weight: | 130Kg approx. with 2x Cylinders |
| Fan noise levels: | 45dBA (Theatre Mode Off) |
