Luminex Luminode 12 Art-Net / sACN Node

Luminex Luminode 12 Art-Net / sACN Node


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

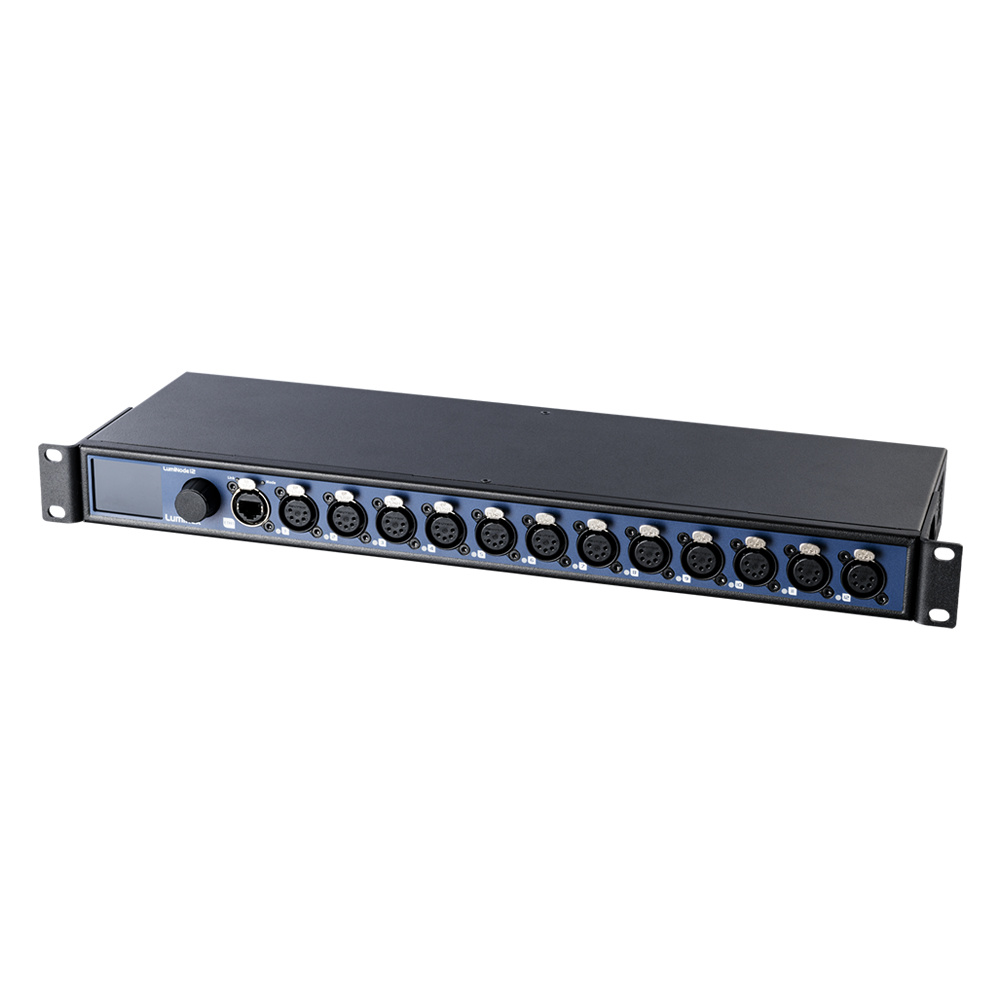

The LumiNode 12 is the 12 port node from the LumiNode range. The unit serves 16 processing engines and 12 DMX outlets, that can be used as input or output. It also offers two 1 Gbps Ethernet ports (front and rear) for an easy network connection and a graphical display for better settings and visualization. This unit is the ideal companion for high density port count per 19″ rack space with lots of processing power.

The LumiNode series is a new range of network converter, inheriting more than a decade of experience from the Luminex Ethernet-DMX converter design and manufacturing.
In the past, most of the people were designing their system according to the number of universes and DMX ports they would need on their lighting control system. But today, with the ever-increasing number of lighting-controlled devices fitted with an Ethernet port, there is a need for more processing power and data handling flexibility. This is where the Luminode series steps in.
Instead of assigning universes to a port, the user can now select any incoming data, handle it the way they need, and send it back to the network, or to a DMX port. All the data handling will bepowered by process engines.

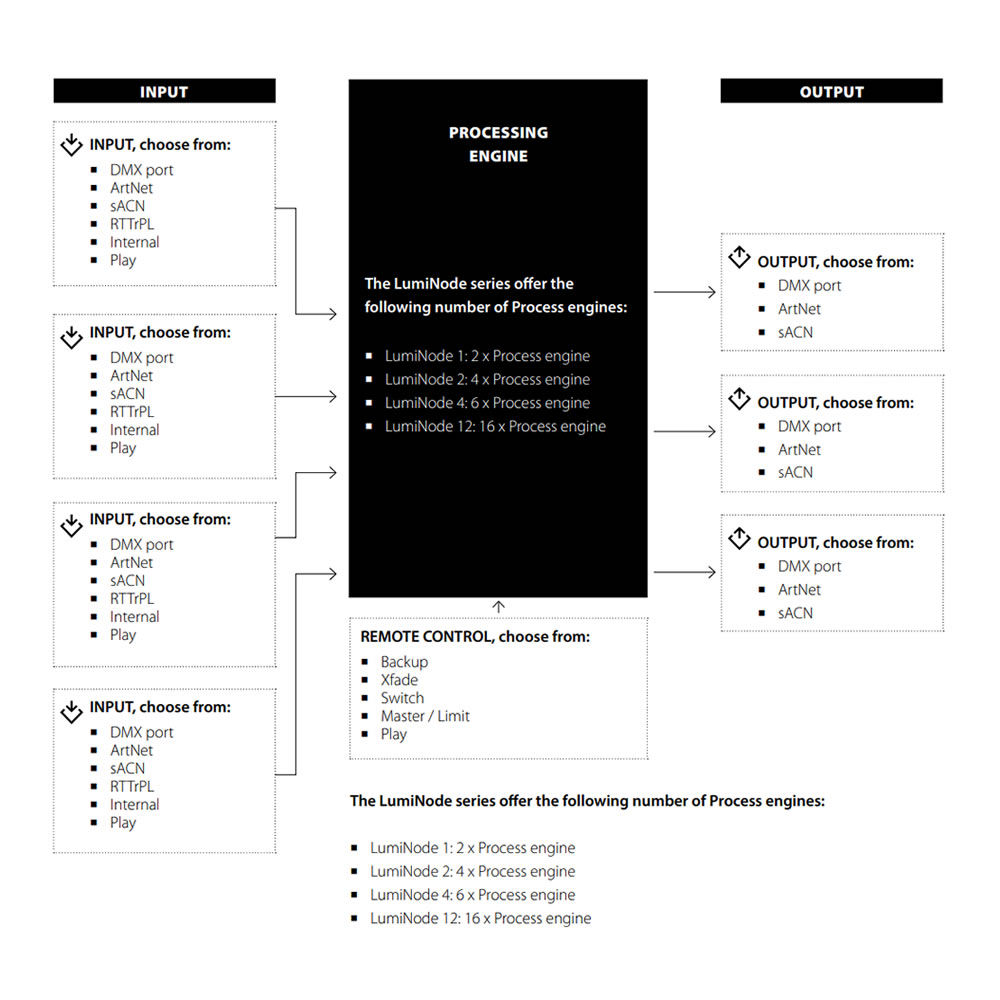

    Process engines

    16

    Merging engine

    HTP, LTP, Backup, Switch, X-Fade, Custom

    Softpatch

    Yes

    Trigger system

    Yes

    ReRoute

    Yes

    Profile Manager

    Yes

    Snapshot

    Yes

    Monitoring software

    LumiNet Monitor V2 (free)

    DMX Port Direction

    Input or output (configurable)

    DMX port isolation

    Optical and galvanic isolation per port

    DMX Port termination/biasing

    Yes

    DMX timing

    Framerate: 10-40fps – break: 176-352µs

    Ethernet port speed

    1Gbps

    Port sensing

    Auto-negociation, MDI / MDIX

    DMX connectivity

    12x gold plated Neutrik 5 pin XLR (female)

    Ethernet connectivity

    2x shielded Neutrik Ethercon connector

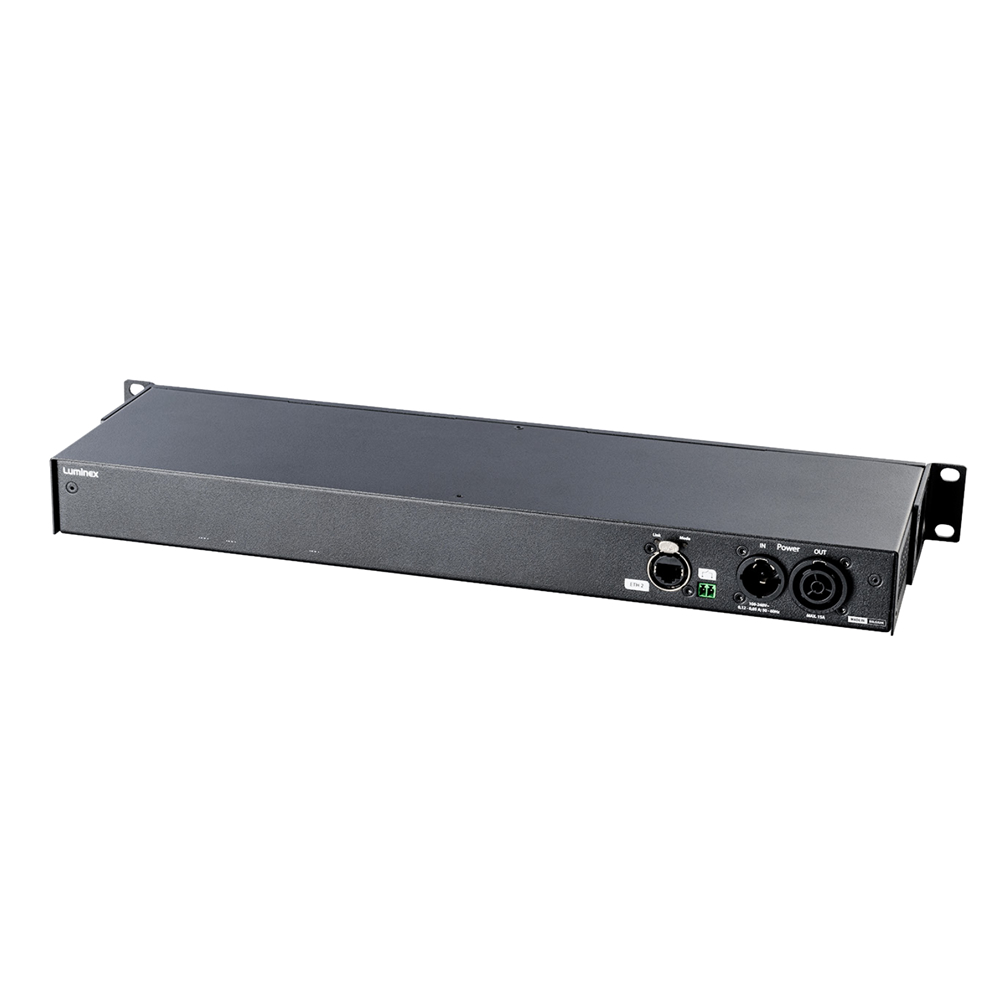

    Power connectivity

    1x Neutrik powerCON TRUE1 In/Out, Ethernet (PoE)

    Power input

    100-240VAC 50-60Hz, PoE (802.3af)

    Power consumption

    Max. 13W

    PoE powered

    Yes IEEE 802.3af (class 0 rated)

    DMX protocols

    DMX512 (1986 & 1990), DMX512-A ANSI E1.11, RDM ANSI E1.20

    Ethernet protocols

    Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)

    Certificates/Approvals

    cSGSus Mark, CE, CB certificate

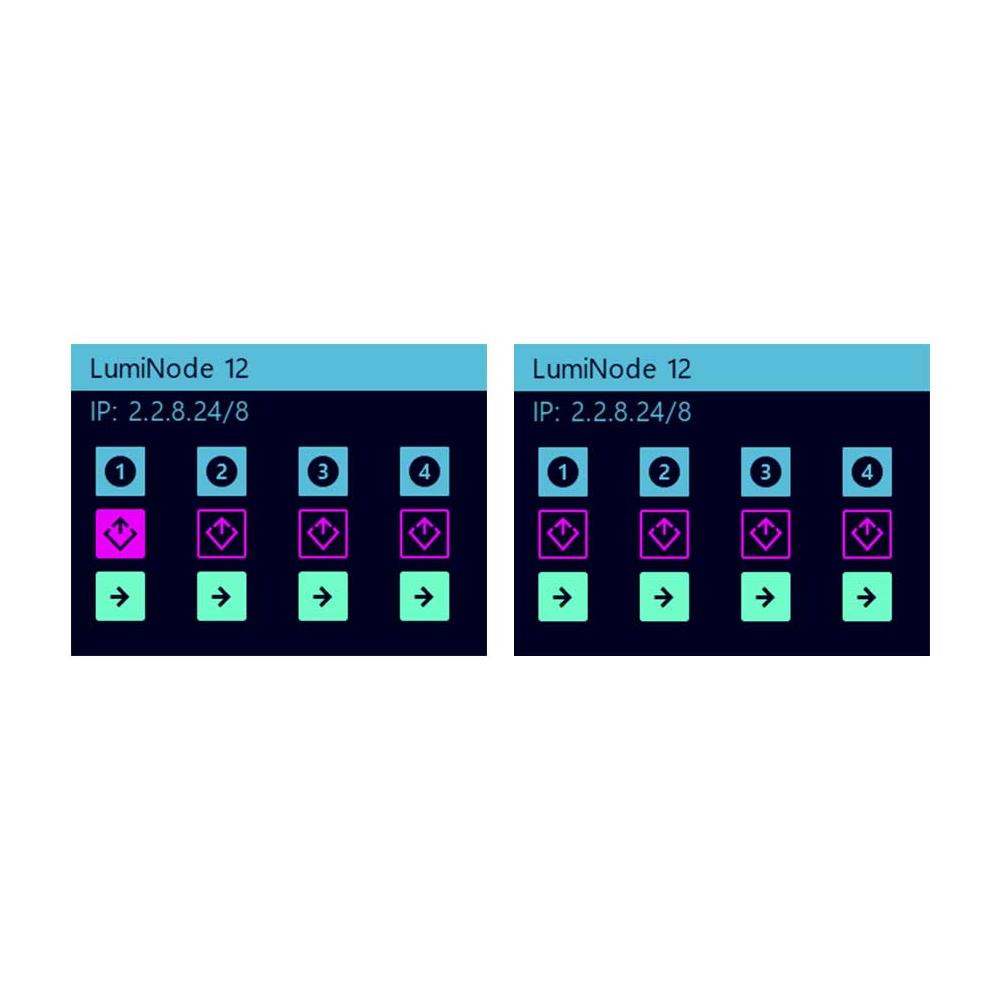

    Display and jog

    Yes

    Status LEDs

    Ethernet Port link/activity LED and mode LED, DMX Port DMX/RDM LED

    Mounting

    Rack

    Enclosure

    Robust metal housing

    Dimensions (W x D x H)

    482 x 183 x 44 mm (19" x 7,2" x 1,73")

    Weight

    2,4 kg

    Packaging

    530 x 330 x 80 mm (21" x 13" x 3,15")

    Environment

    Operating temperature: 0 tot +50°C, Storage temperature: -10 tot +70°C, Humidity (non condensing): 5 to 95% RH

    URL

    https://www.luminex.be/products/luminode/luminode12/

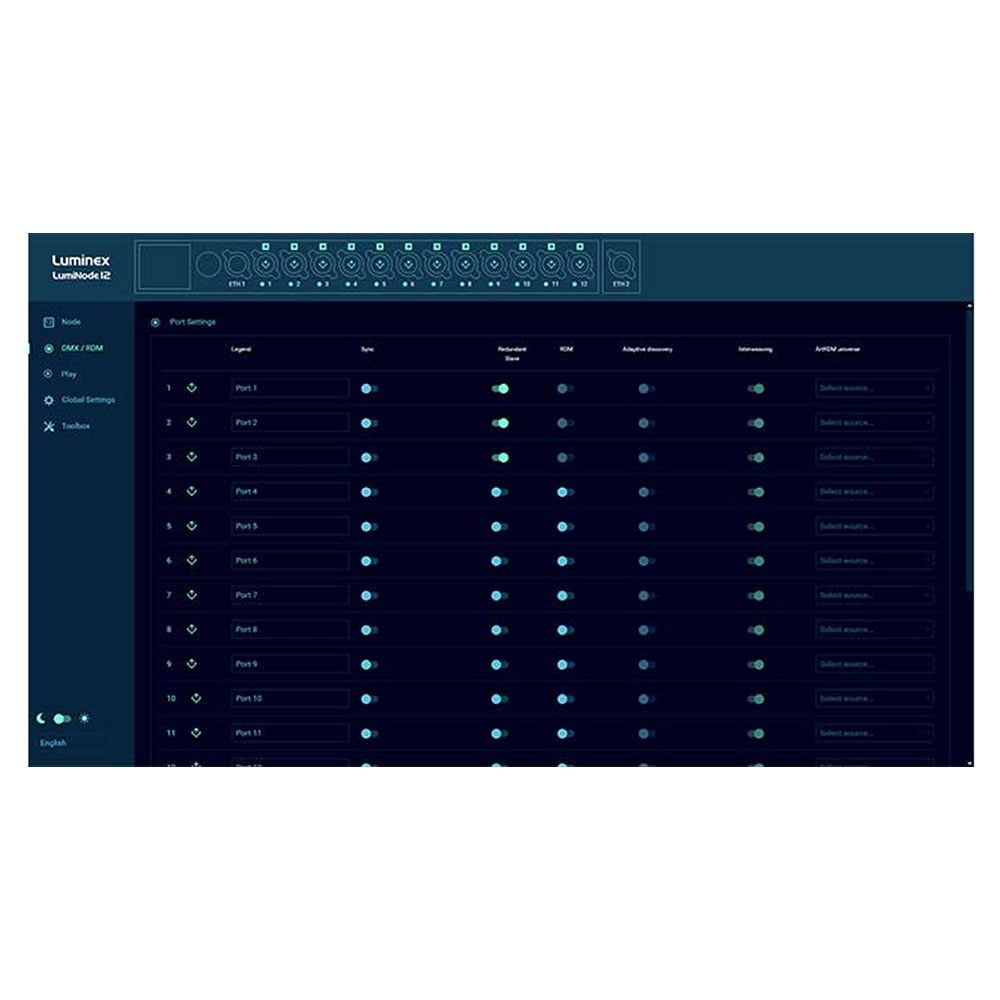

    Configuration

    Through the built-in web server or with the front end display menu

    Product codes

    LU 01 00072 (LumiNode 12 with PoE input)

    Position

    1

    EMC

    EN55032 class A, EN55035, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, FCC Part 15 CFR 47 class A, ICES-003 Issue 6

    Safety approvals

    IEC 60950-1, EN 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 62368-1, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, CE

    Green

    RoHS, Reach
