Chauvet COLORdash Batten Quad 12 RGBA

Chauvet COLORdash Batten Quad 12 RGBA


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

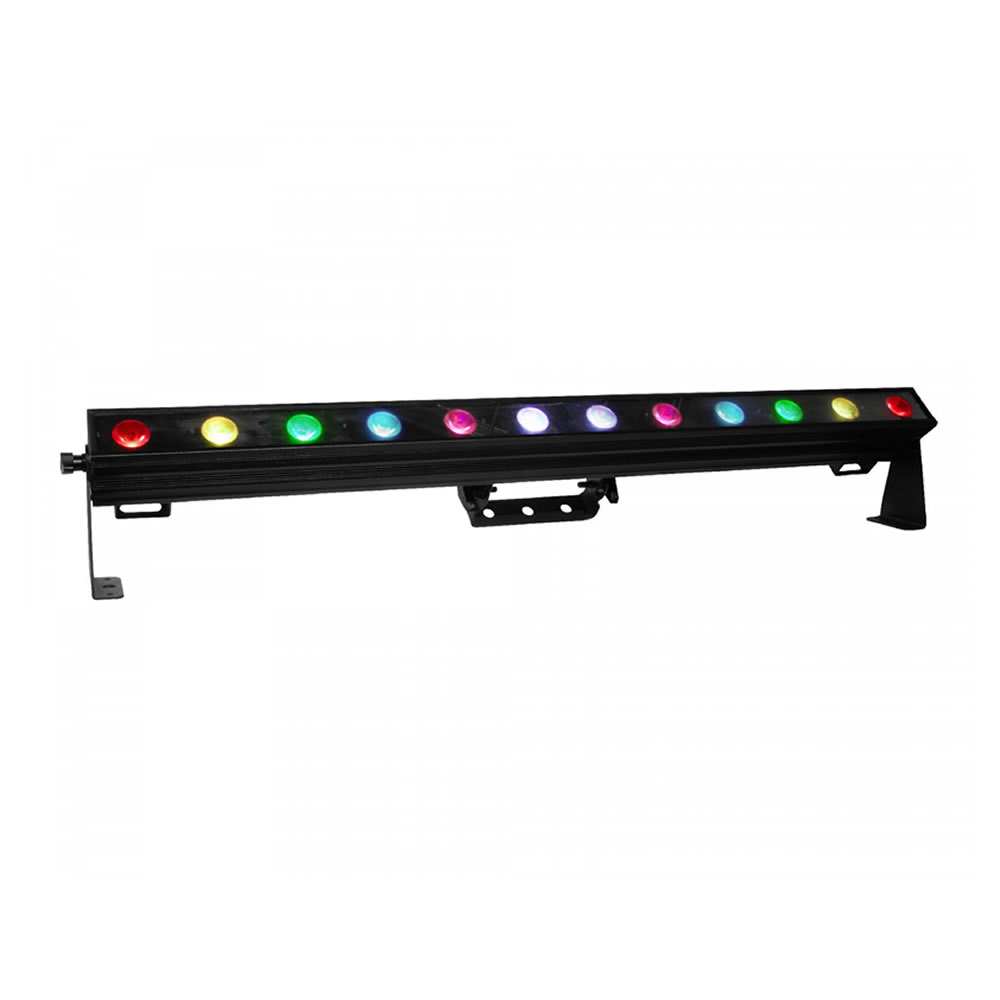

COLORdash Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, secure Neutrik® powerCON® power in and out.

  • Built-in auto and custom programs recalled via DMX or Master/Slave
  • Metal construction for added durability
  • Individual pixel control
  • Silent flicker-free operation
  • Mount multiple units in stack or end-to-end to maintain pixel pitch

OPTICAL

  • Light Source: 12 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Installed Optics: 20°
  • Beam Angle: 22°
  • Field Angle: 31°
  • Illuminance: 539 lux @ 5 m
  • PWM Frequency: 600 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

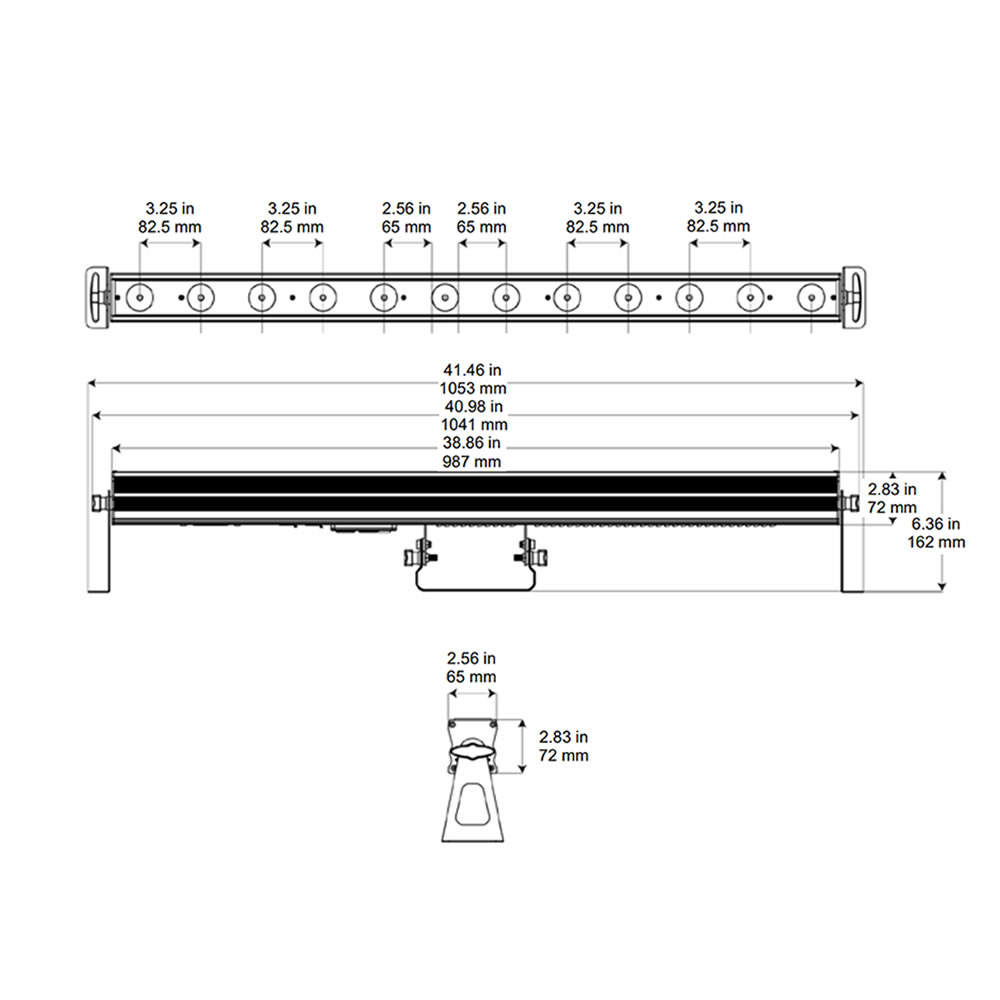

  • Dimensions: 41 x 3.2 x 6.5 in (1041 x 82 x 164 mm)
  • Weight: 10.6 lb (4.8 kg)
  • Exterior Color: Black

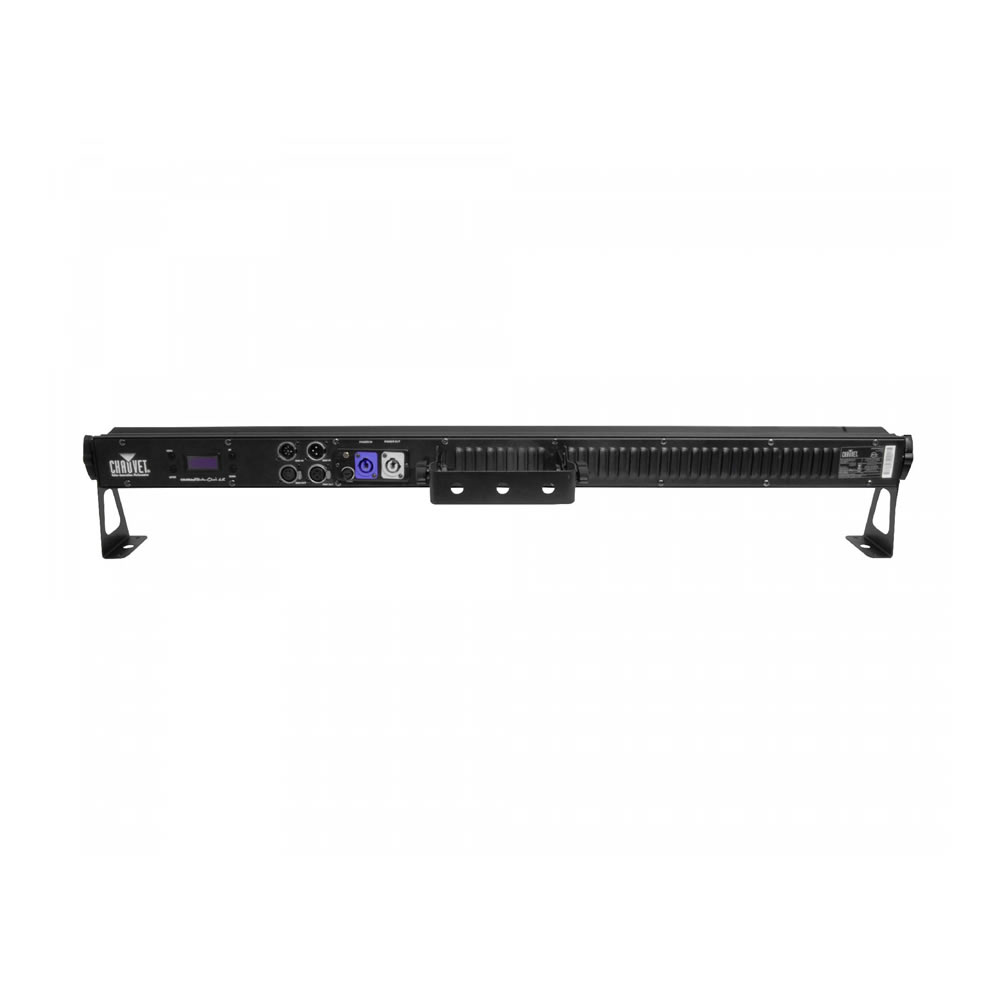

CONNECTIONS

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (signal): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 4, 6, 10, 48 or 52
  • Modes/Personalities: 5 personalities (4CH, 6CH, 10CH, 48CH, 52CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
  • Power and Current: 175 W, 1.45 A @ 120 V, 60 Hz
  • Power and Current: 168 W, 0.81 A @ 208 V, 60 Hz
  • Power and Current: 175 W, 0.76 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
