Chauvet COLORdash Accent Quad LED Spot

Chauvet COLORdash Accent Quad LED Spot


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

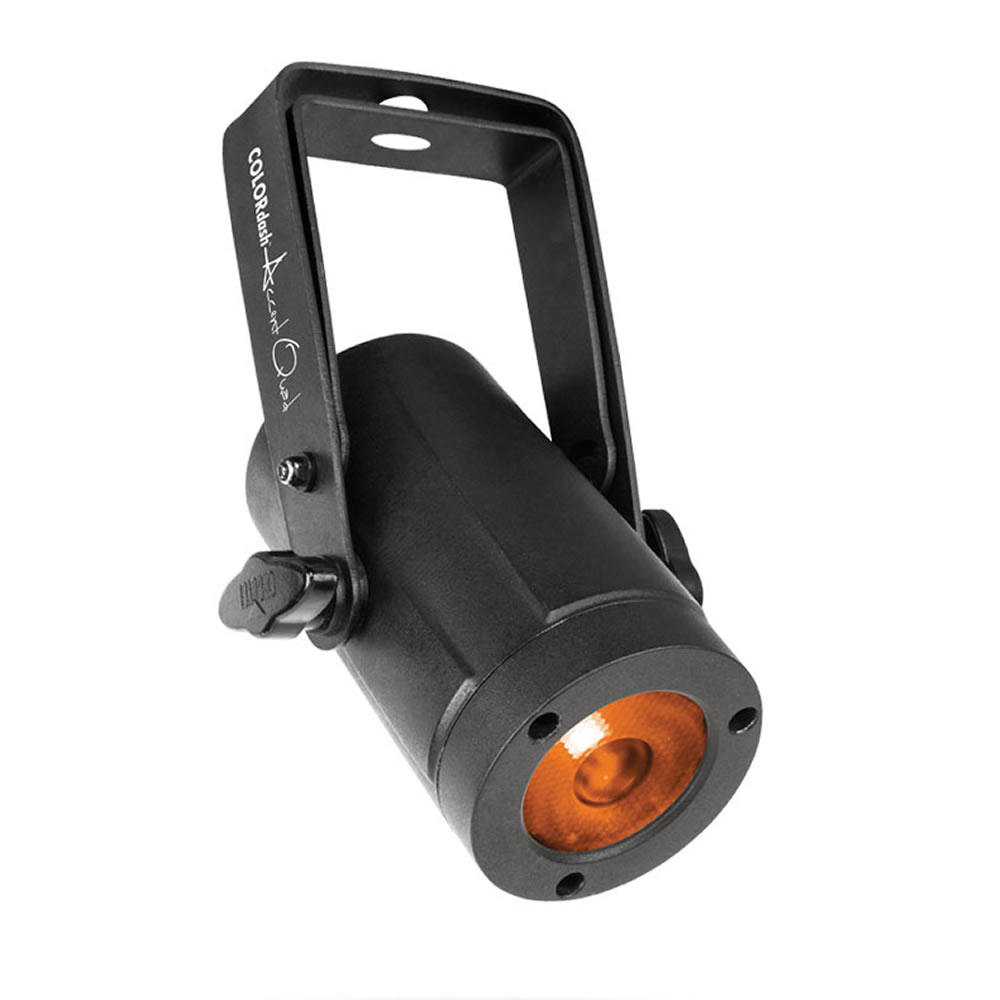

Colordash Accent Quad delivers a tremendous punch of evenly mixed light into tight locations.

Powered by a 10 W quad-color (RGBA) LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. An onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.#

  • RGBA color mixing via DMX or manually
  • Extremely compact with excellent output
  • Variable electronic dimmer (0–100%)
  • Simple and complex DMX channel profiles for programming versatility
  • Double-bracketed yoke doubles as floor stand

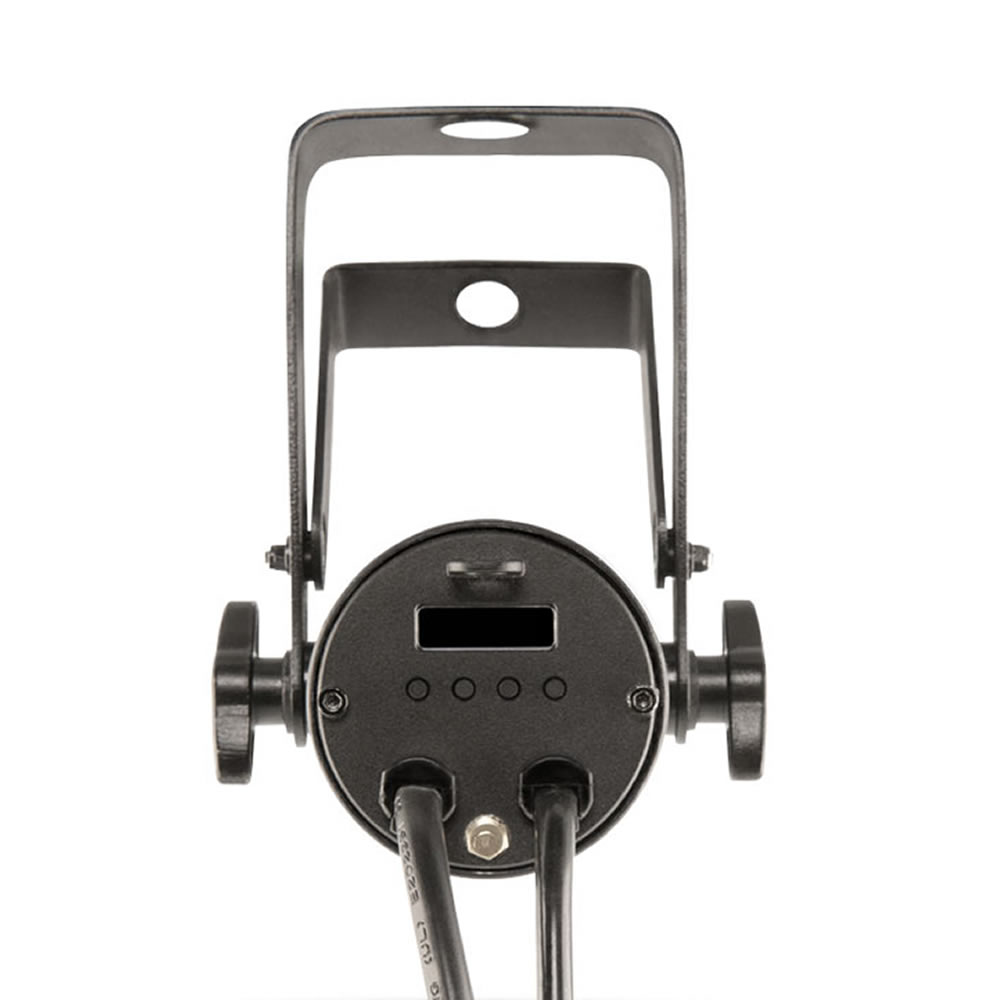

  • Easy to use OLED digital display

OPTICAL

  • Light Source: 1 LED (quad-color RGBA) 10 W, (700 mA), 50,000 hours life expectancy
  • Beam Angle: 15°
  • Field Angle: 29°
  • Illuminance (total): 140 lux @ 5 m
  • PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 33 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

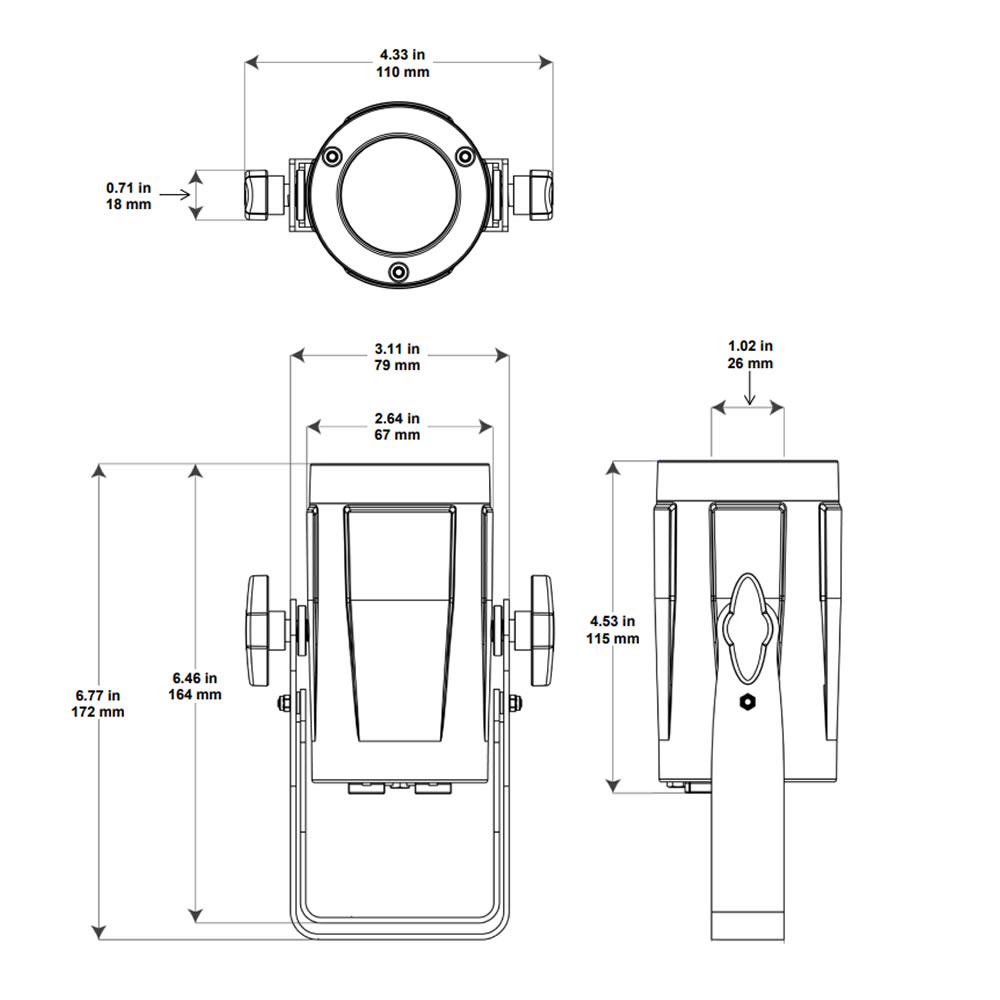

  • Dimensions: 4.3 x 2.6 x 6.8 in (110 x 67 x 172 mm)
  • Weight: 1.8 lb (0.8 kg)
  • Exterior Color: Black

CONNECTIONS

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR DMX input and output cable whips
  • Cable Length (power): 3.5 ft (1.07 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 4, 6 or 10
  • Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 14 W, 0.20 A @ 120 V, 60 Hz
  • Power and Current: 14 W, 0.13 A @ 208 V, 60 Hz
  • Power and Current: 13 W, 0.12 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
