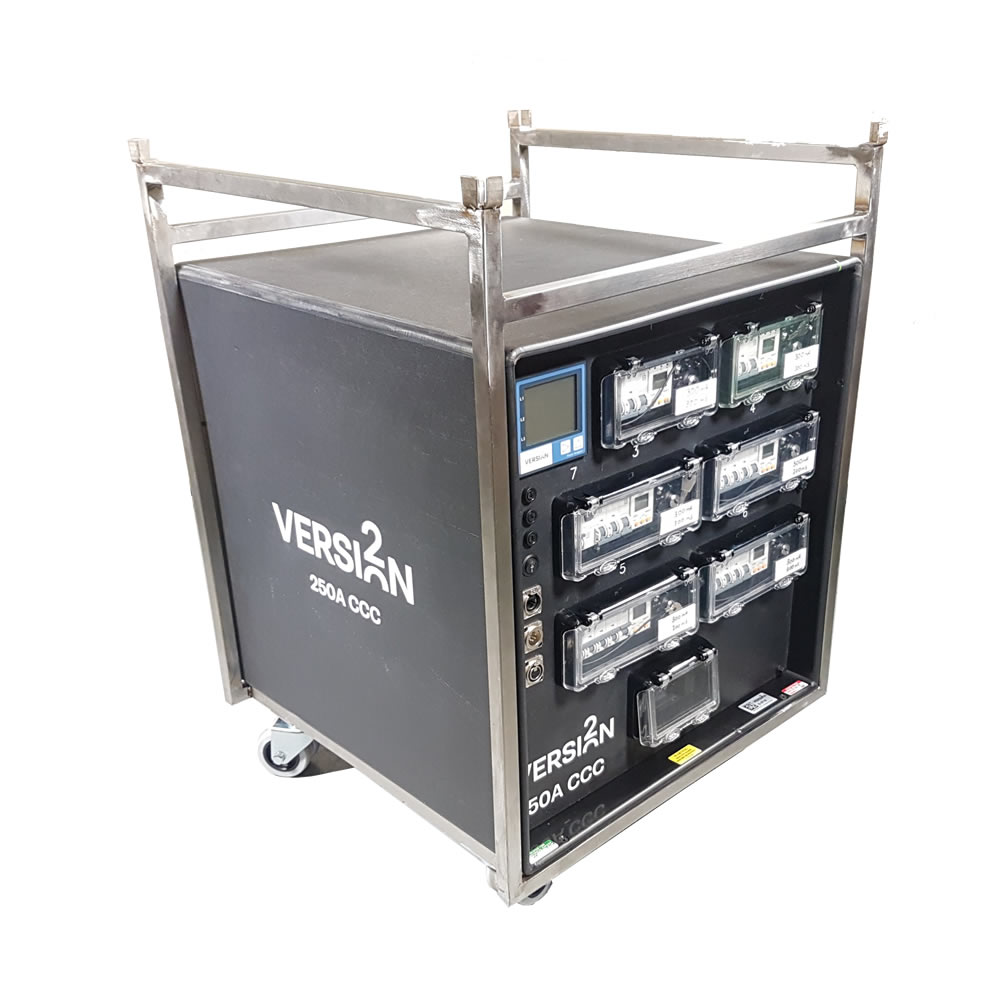

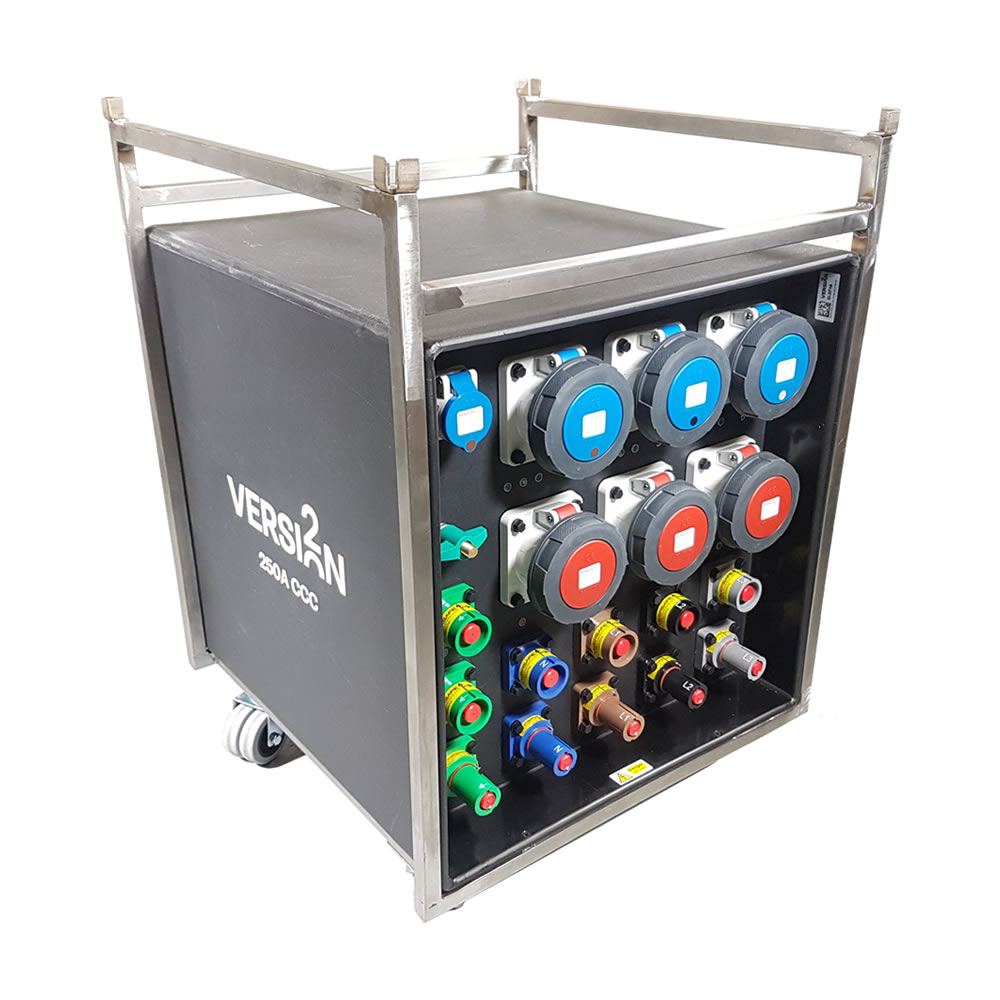

250A CCC Distro (3X 63A 3Ø, 3X 63A 1Ø)
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
Part of the Version 2 SMARTdistro stacking frame range of power distribution, designed to meet and exceed the requirements of BS7909.
Input
- 400A Powerlock Set
Output
- 400A Powerlock Set (Unprotected loop out)
- 3x 63A 3Ø Ceeform
- 3x 63A 1Ø Ceeform
- 1x 16A Ceeform
Protection
- Powerlock - 250A 4P MCCB (time / current adjustable)
- 63A 3Ø - 4P C Type MCB with key switchable and adjustable RCD shunt trip
- 63A 1Ø - DP C Type MCB with key switchable and adjustable RCD shunt trip
- 16A - 30mA DP RCBO
Other Features
- Additional Powerlock earth connector & earth stud
- LED panel lighting
- Version 2 SMARTdistro monitoring with network & modbus connections
Default RCD Trip Settings:
- 400A Powerlock - 480mA - 1000ms
- 125A Ceeform 1&3 Ø - 480mA - 500ms
- 63A Ceeform 3Ø - 300mA - 300ms
- 63A Ceeform 1Ø - 100mA - 100ms
- 32A Ceeform 1&3 Ø - 30mA - no delay
- 16A Ceeform - 30mA - no delay
