Tungsten Fresnel 300W (Manual)

Tungsten Fresnel 300W (Manual)

Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938

Send Hire Enquiry
Send Hire Enquiry

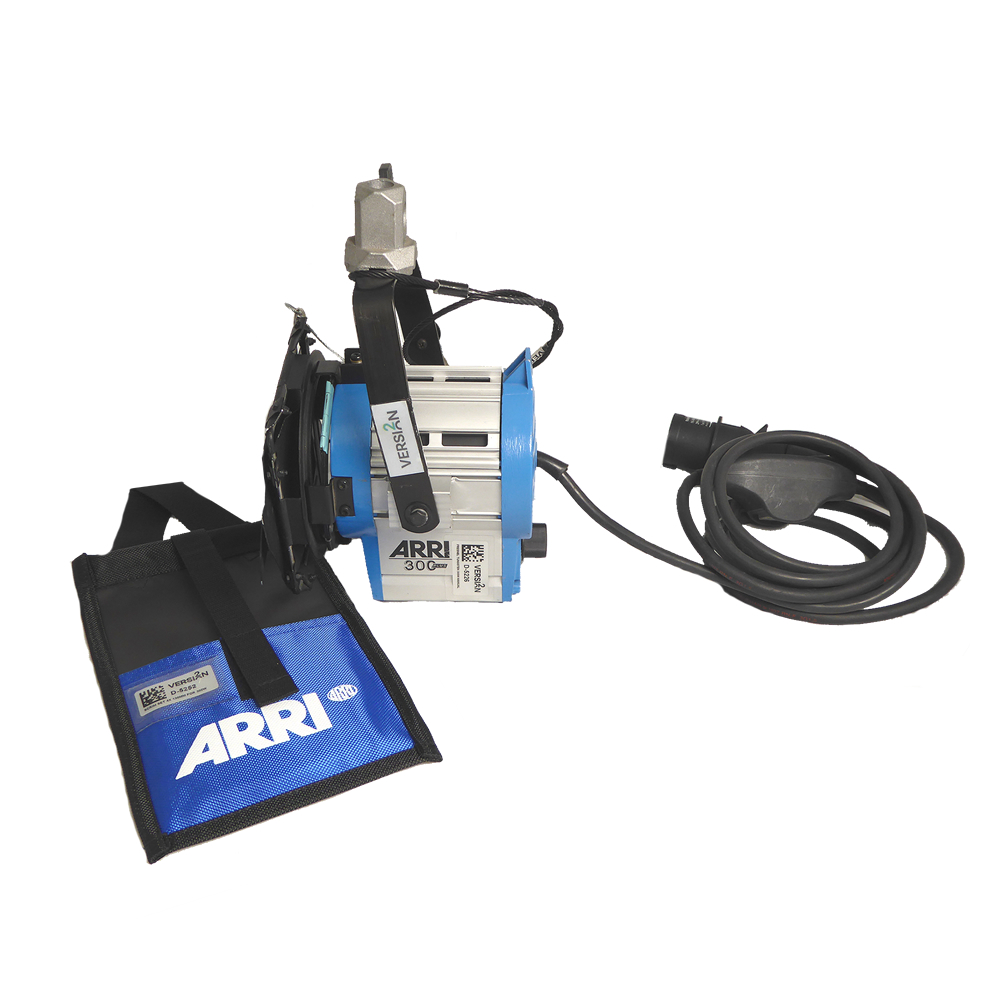

The ARRI Fresnel series is ideal for use where compact, lightweight tungsten Fresnel spotlights are required, especially in small studios where grid height is a problem.

Classic ARRI construction, using corrosion-resistant, extruded, die cast aluminium, maximises body strength while maintaining the light weight of a location fixture. Despite the small size of ARRI Fresnels, their short focal length, wide angle lenses produce impressive light output and good light distribution over the full beam area.

  • High quality lenses and reflectors for excellent optical performance
  • Compact size and lightweight
  • Robust construction of rust-resistant, extruded, die cast aluminium
  • Easy and convenient operation
  • Quick and easy service access
  • Extensive range of accessories

Comes complete with Scrim Kit containing: Single Full, Single 1/2, Double Full, Double 1/2

Lamphead Type:Fresnel, 300 W
Reflector Type:Spherical specular high purity aluminum
Lamp Type:CP81 FSL 300 W / 230 V ; CP81 FKW 300 W / 120 V
Power Consumption:300 W
Voltage Range:230 V / 120 V
Lamp Base:GY9.5
Dimmability:Yes, 0 to 100 % via external dimming system
Cable Options:bare ends, Schuko plug
Correlated Color Temperature:3,200 K
Beam Angle:14° to 53°
Product Weight:1.8 kg / 4 lbs
Shipping Weight:2.9 kg / 6.4 lbs

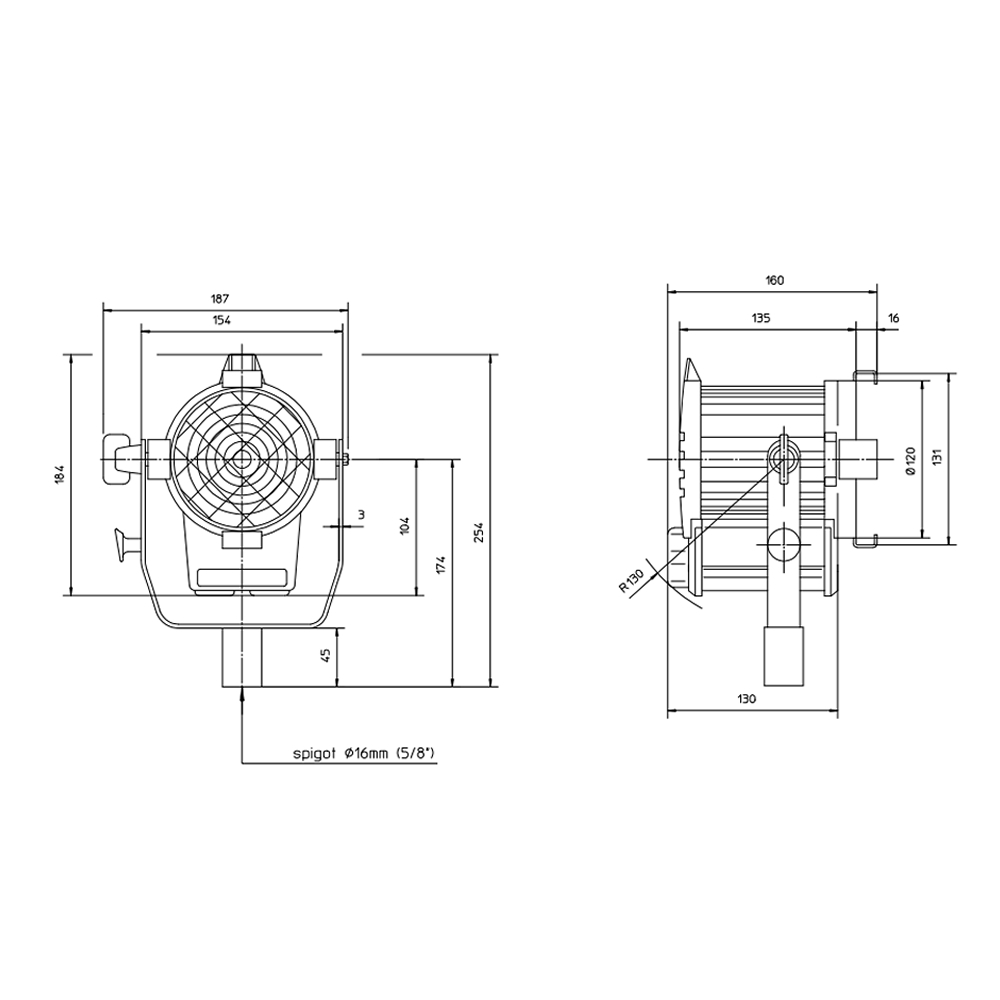

Product Size (H x W x L):233 x 187 x 160 mm / 9.17 x 8.7 x 6.3"
Shipping Size (H x W x L):275 x 190 x 240 mm / 10.8 x 7.5 x 9.5"
Lens Diameter:80 mm / 3.15"
Accessory Diameter:130 mm / 5.12" (Scrim)
Barndoor:130 mm / 5.12"
Mounting:Socket 16 mm / 5/8" (0.63")
Protection Class / IP Rating:I / IP20
Certifications:CE, CB, GS, cNRTLus
