Robe RoboSpot System

Robe RoboSpot System


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

RoboSpot BaseStation

Introducing the revolutionary RoboSpot follow spot system, a device that allows follow spot operators to remotely control up to 12 fixtures simultaneously without the safety concerns and impracticality of placing personnel at the top venues such as stadiums, indoor arenas, concert halls, theatres, TV and film sets. Stunning visual displays are now possible with as many as 12 perfectly synchronised fixtures following a performer across the stage.

With the RoboSpot follow spot system it is no longer necessary to send operators into the rafters of venues to operate heavy and cumbersome traditional follow spot fixtures that take up valuable space in the world’s live entertainment venues. Operators can now safely control multiple fixtures such as the BMFL range of products (exc. BMFL Wash), Esprite, T1 Profile, T1 Profile FS, DL7S, DL4S, iPointe, MegaPointe, Pointe, Viva CMY, SilverScan, Tarrantula, Spiider and LEDBeam 150 from any location within the venue, reducing set-up times and operating costs.

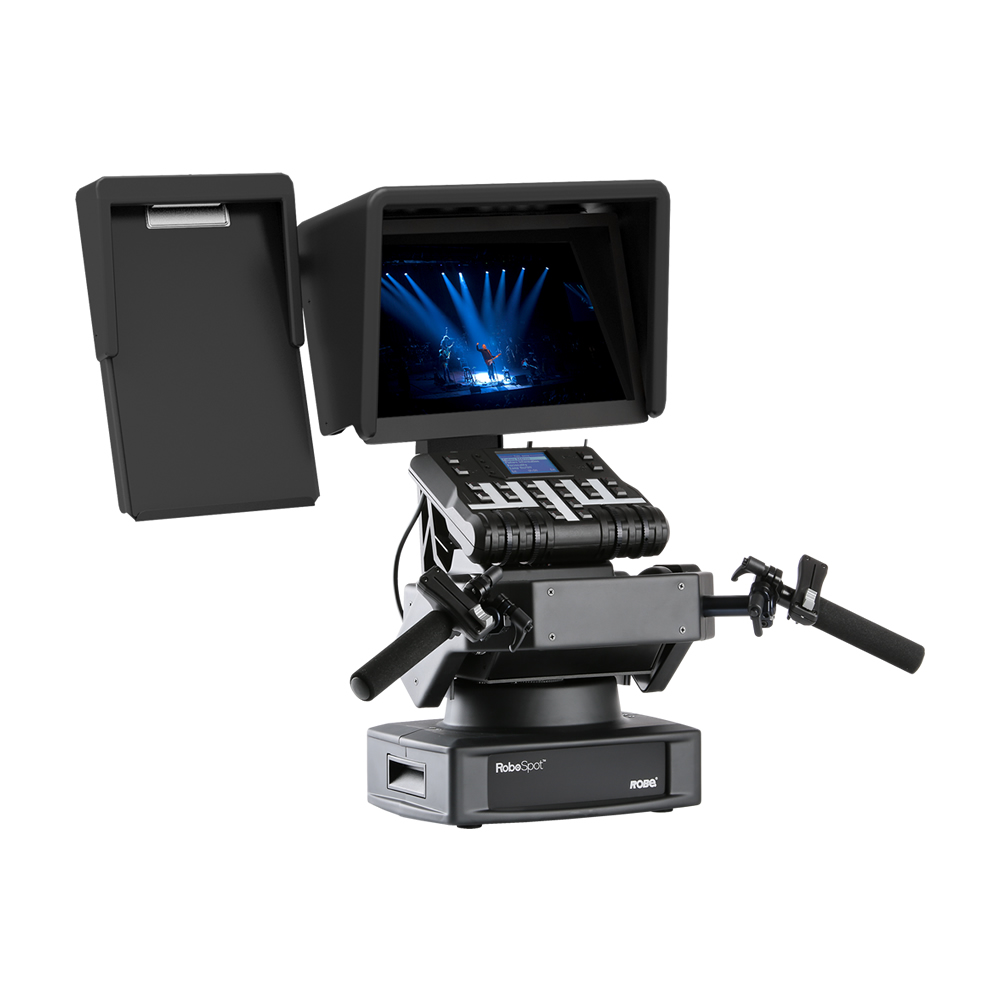

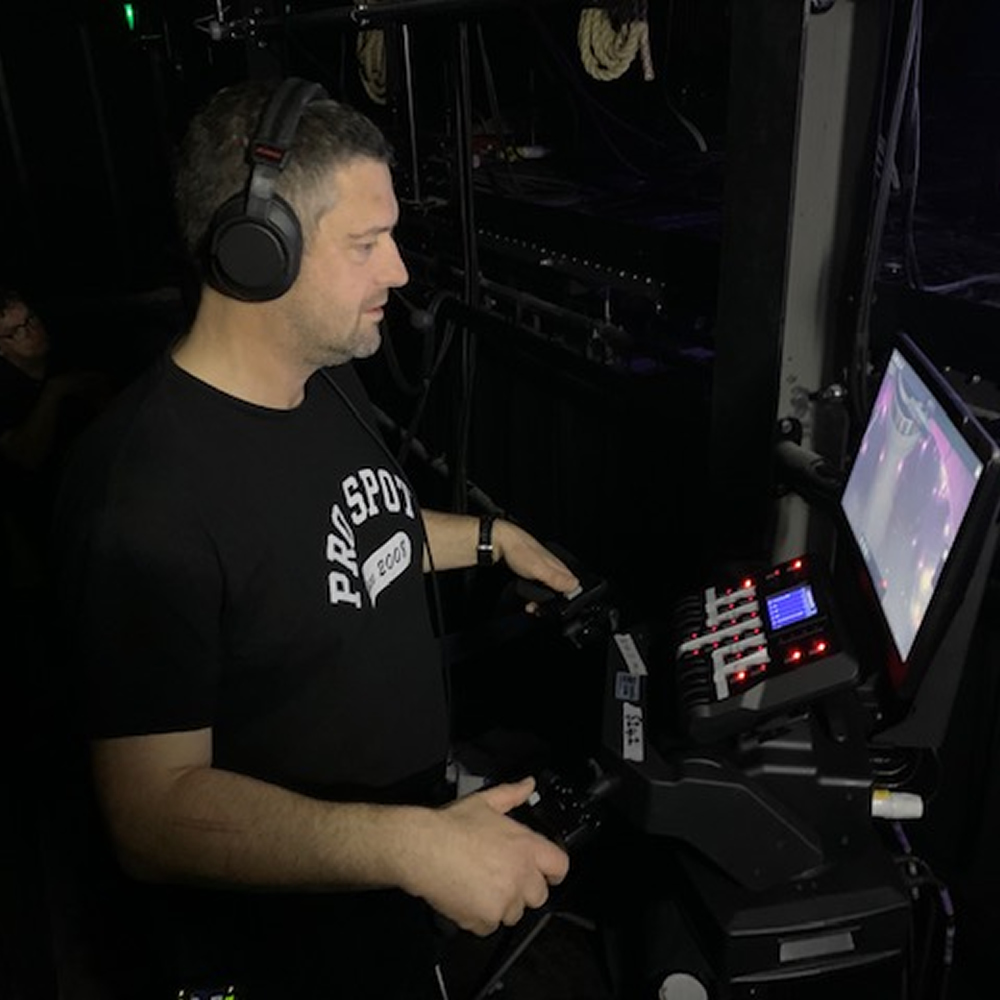

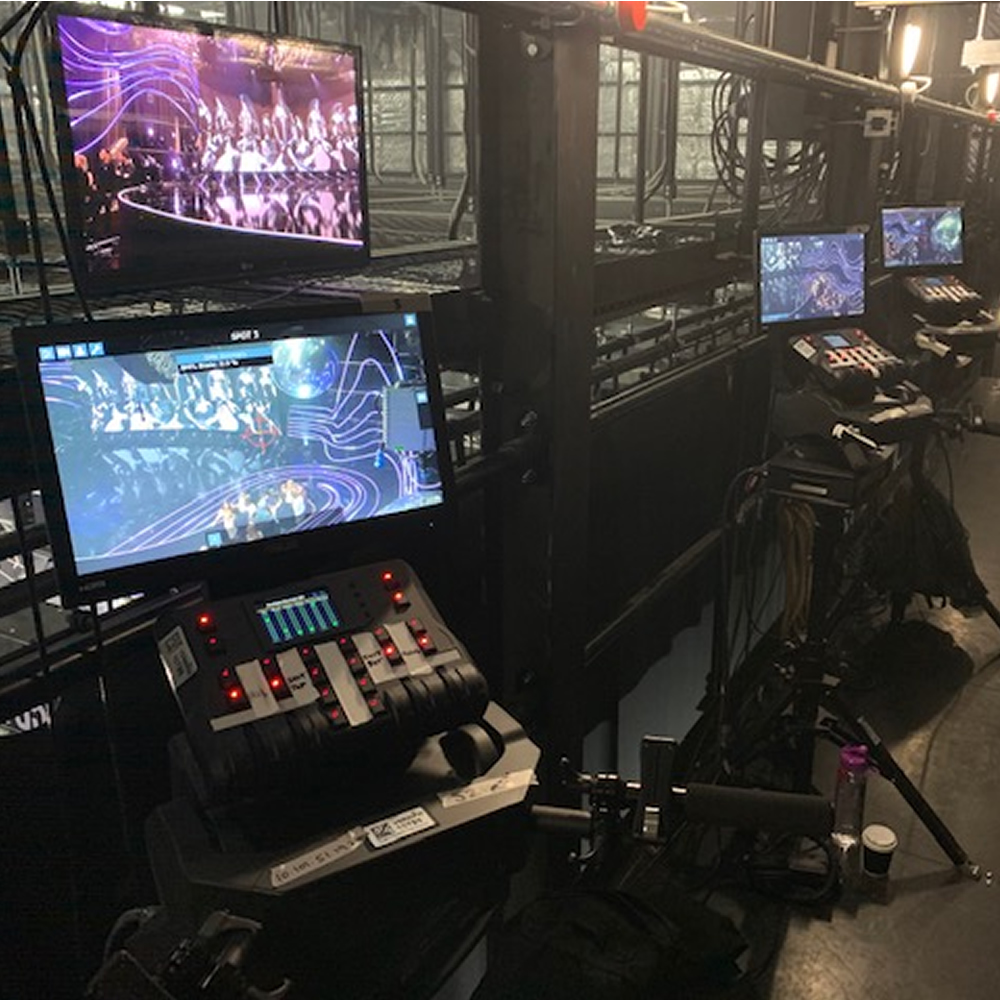

The Robe RoboSpot system features a BaseStation with a large 15.6-inch HD touch screen for the operator to observe the performance from a “first person” viewpoint and a full range of hand controls for operating the fixtures such as pan, tilt, intensity, focus, faders and many others, all of which are fully customisable for the operator’s benefit. The screen receives the live video feed from the RoboSpot MotionCamera or from the fixture-mounted RoboSpot camera and the operator’s commands are instantly transferred to the luminaires via DMX control with no lag for perfect motion tracking across the stage.

Extra controls are available through the touch screen display as well as four programmable jog-wheels with an additional 10 fully configurable buttons for a truly customised user experience. The remote lighting desk still retains control of the internal features of the fixtures such as light intensity and colour. All these features combine to make RoboSpot an innovative follow spot system.

RoboSpot MotionCamera

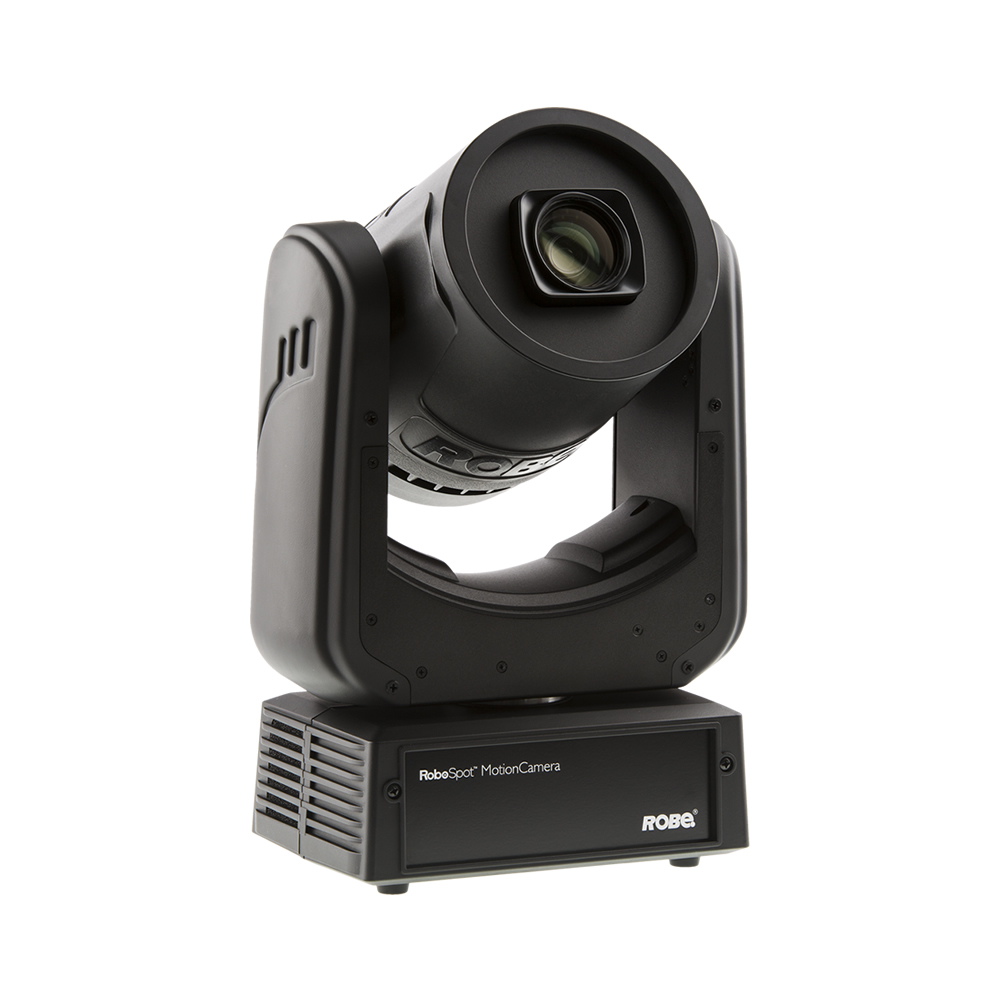

The RoboSpot MotionCamera is a revolutionary moving head fixture featuring an integrated HD camera remotely controlled via DMX to pan, tilt, zoom and autofocus.

Featuring a full HD camera with high light sensitivity capabilities down to 0.3 Lux illumination levels, the fixture provides a “first person view” for the followspot operator to track the performer across the stage. Video signals are instantly transferred to the RoboSpot BaseStation via a high-speed Ethernet cat5 cable.

  • BASE STATION MAIN FEATURES

    • 15.6" monitor
    • QVGA Robe touch screen with battery backup
    • 4 control jog-wheels
    • 10 preset buttons with a direct access of the pre-programmed features
    • Activation & Blackout buttons
    • Pan & Tilt freeze buttons
    • Manual movement control with position indication on the screen
    • 2 faders mounted on the handles with direct control of the key features 0-100% /for example dimmer and iris), assignable to any BMFL properties (focus, zoom, frost, etc)
    • User setting of controllable attributes
    • Saving and uploading of custom settings
    • Compatible with the ROBE BMFL FollowSpot / FollowSpot LT incl. RoboSpot Camera, BMFL Spot, BMFL Blade, BMFL WashBeam, Esprite, T1 Profile, T1 Profile FS, DL7S, DL4S, iPointe, MegaPointe, Pointe, Viva CMY, SilverScan, Tarrantula, Spiider and LEDBeam 150, when the RoboSpot MotionCamera is connected to the RoboSpot BaseStation
    • One RoboSpot can control up to 12 fixture
  • CONTROL AND PROGRAMMING

    • Display: QVGA Robe touch screen with battery backup
    • Movement control: manual
  • ELECTRICAL SPECIFICATION AND CONNECTIONS

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: 15 W
    • Power in connector: Neutrik powerCON TRUE1
    • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
    • Ethernet port in/out: RJ45
  • APPROVALS

    • CE Compliant
    • cETLus Compliant
  • VIDEO INPUTS

    • Ethernet port in: RJ45
  • MECHANICAL SPECIFICATION

    • Height: 606 mm (23.8")
    • Width: 693 mm (27.3")
    • Depth: 472 mm (18.6")
    • Weight: 16.5 kg (36.4 lbs)
  • RIGGING

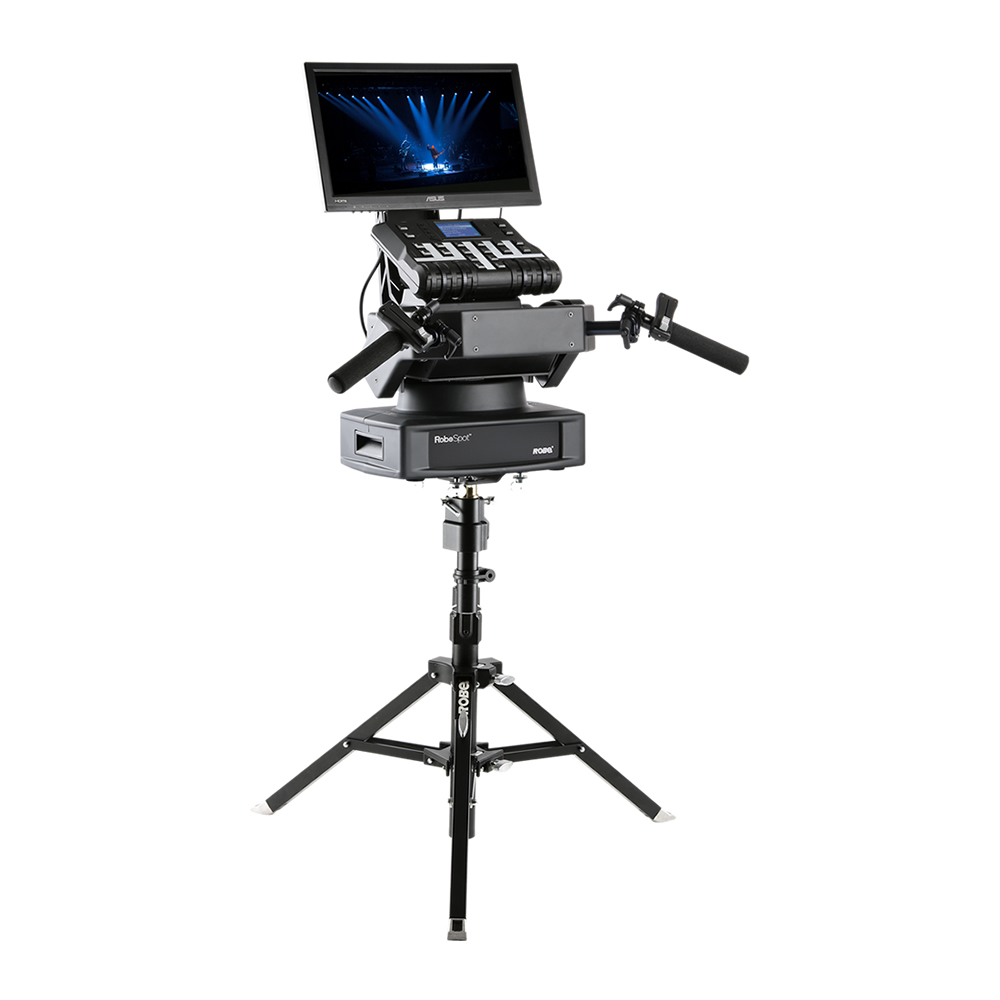

    • Mounting positions: on tripod (supplied with the product)
  • CAMERA

    • Type: SNZ-6320
    • Resolution: 1920x1080, 16:9 Full HD (1080p) resolution support
    • Zoom:
      • 32x optical zoom
      • 16x digital zoom
    • Streaming: H.264, MPEG dual codec, Multiple streaming
    • Vision: Day & Night (ICR), WDR (120dB)
    • Minimum illumination: 0.3 Lux
  • CONTROL AND PROGRAMMING

    • Setting & Addressing: two-row LCD display & 4 control buttons
    • Protocols: USITT DMX-512, RDM
    • Wireless CRMX™ technology from Lumen Radio (on request)
    • DMX Protocol modes: 1
    • Control channels: 8
    • Pan/Tilt resolution: 16 bit
    • Zoom: 8 bit
  • MOVEMENT

    • Tilt movement: 270°
    • Pan movement: 540°
    • Movement control: Standard and Speed
    • Automatic Pan/Tilt position correction
  • THERMAL SPECIFICATION

    • Maximum ambient temperature: 45°C (113°F)
    • Maximum surface temperature: 55°C (131°F)
    • Minimum operating temperature: -5°C (23°F)
  • ELECTRICAL SPECIFICATION AND CONNECTIONS

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: 35 W at 230V / 50 Hz
    • Power in/out connector: Neutrik powerCON TRUE1 in/out
    • DMX and RDM data in/out: Locking 5-pin XLR
    • Camera output: RJ 45
  • APPROVALS

    • CE Compliant
    • cETLus Compliant (pending)
  • MECHANICAL SPECIFICATION

    • Height: 385 mm (15.2")
    • Width: 276 mm (10.9")
    • Depth: 147 mm (5.8")
    • Weight: 5.7 kg (12.6 lbs)
  • RIGGING

    • Mounting positions: Horizontally or vertically
    • 1x Omega adaptor with ¼-turn quick locks
    • Universal operating position
    • Mounting points: 1 pair of ¼ -turn locking points
    • Safety cable attachment point
