Prolights LUMIPIX15IP is a rugged RGBW LED batten conceived to be fully versatile performing both indoors as well as outdoor, delivering advanced brightness and individual pixel control of each cell.

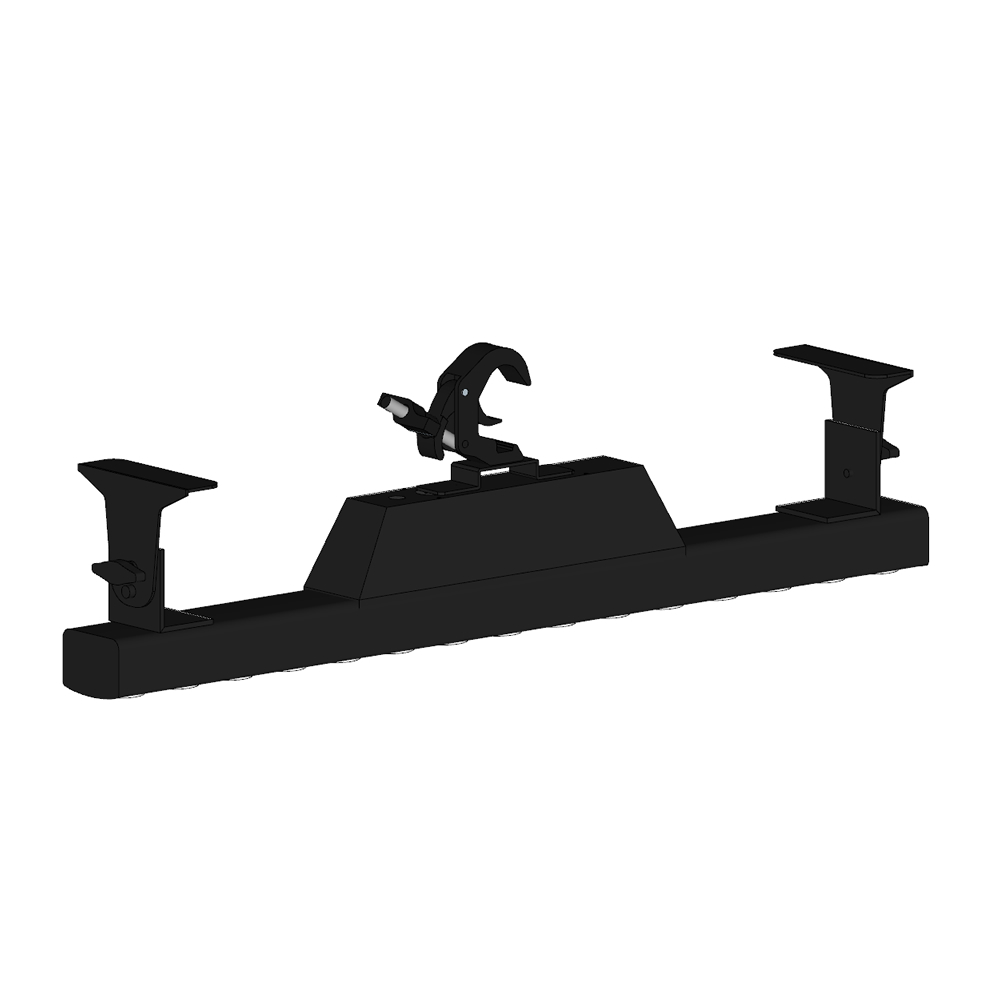

Hanging options include a built in end brackets for floor use or detachable central omega clamp with trigger clamp.
Features:
- 15 Cell x 10W RGBW LED
- Individual Pixel Control
- 16° Beam Angle
- IP65 for temporary outdoor use with noiseless passive cooling
- Inbuilt macro effects generator
LIGHT SOURCE
- Source: 15x10W RGBW LEDs
- Luminous flux: (16° + diffused) 4'983 lm - (16°) 5'394lm @full
- Lux: (16° + diffused) 1'886 lm - (16°) 2'454lx @5 m full
- Source life expectancy: > 30.000 h
OPTICS
- Beam angle: 16°
- Field angle: 31°
- Additional optics: magnetic frost holder on board
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- CCT: CCT control through dedicated DMX channel
- White presets: 2.800 K - 10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
- Pixel patterns: pre-programmed dynamic and static patterns
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
- Body: sturdy die-cast aluminium body
- Body colour: black
CONTROL
- Protocols: DMX512
- DMX channels: 4 / 6 / 10 / 60 / 65channel
- Pixel control: pixel2pixel control
- W-DMX: included, wireless solution receiver
- Display: Graphic User Interface
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 0 ~ 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45°
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 161W
- Output (at 230V): 23 units on a single power line
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installation
- Cooling: passive cooling and fan-free
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Data connection: W-DMX receiver
- Power connection: True 1

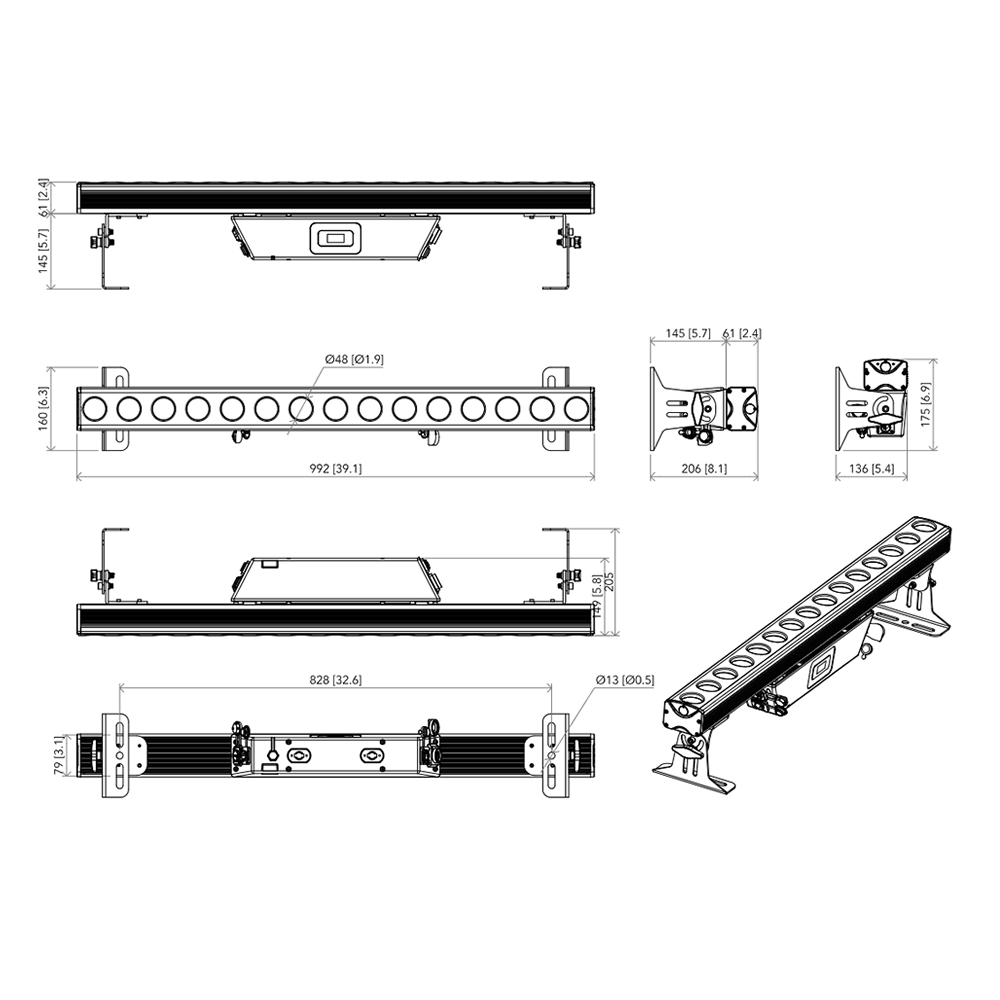

- Dimensions (WxHxD): 992x206x160mm / 39.06''x8.11''x6.3''
- Weight: 8,6kg / 18.96lbs
