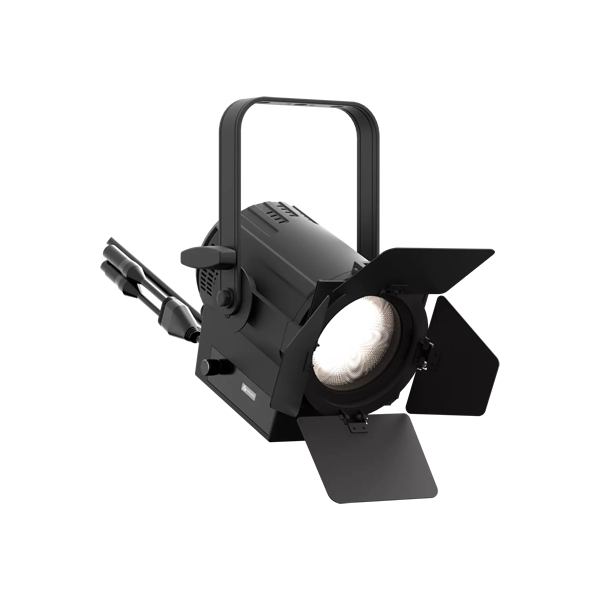

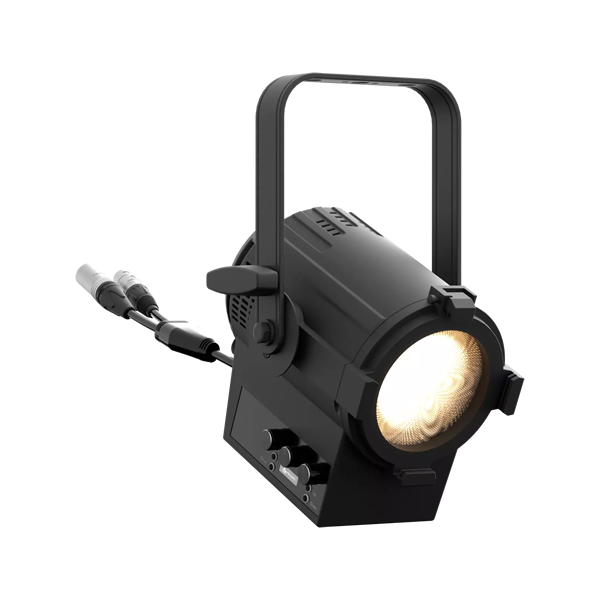

The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).

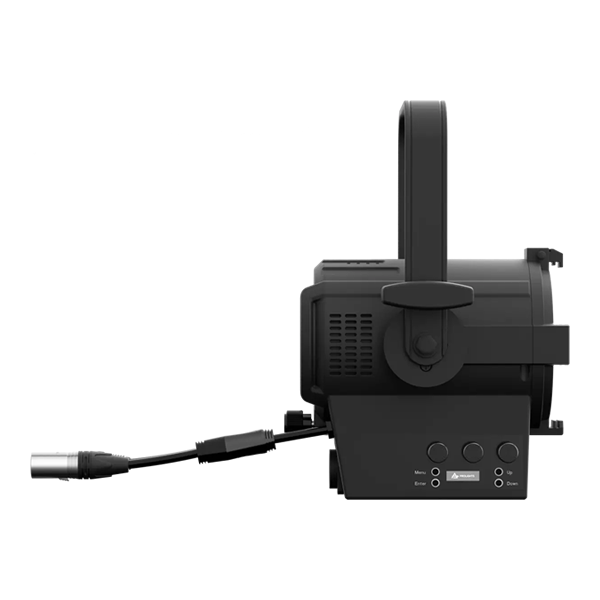

This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.
Main features:
Linear white CCT, from 2,700K to 5,600K
60W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
Barndoor and filter frame included
LIGHT SOURCE
Source: 60W Variable White LED (driven @ 50W)
CCT: 2.700 K - 5.600
Luminous flux: (21°) 877 lm - (83°) 2'320 @Full
Lux: (21°) 630 lx - (83°) 238lx @3 m
CRI: 96 @WW; 95 @CW; 95 @full
R9: 91 @WW; 88 @CW; 86 @full
TLCI: 95 @WW; 98 @CW; 97 @full
TM30 Rf: > 94 @WW; >93 @CW; > 94 @full
TM30 Rg: < 103 @WW; < 104 @CW; < 104 @full
Source life expectancy: > 50.000 h
OPTICS
Zoom range: 21° - 83° manual
Lens diameter: 3.93'' - 100mm / 0.15''
Lens type: fresnel zoom lens
COLOUR SYSTEM
Colour mixing: tunable white
CCT: CCT control through dedicated DMX channel
White presets: 2.700 K - 5.600K
Colour wheel: built-in white presets
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Static mode: selection of static dimmer and color temperature
Manual mode: manual adjustment of intensity and CT from knob
Auto mode: built-in programs with execution speed adjustment
BODY
Hardware on-board: filter frame, 4 doors barndoor, spigot
Body: sturdy die-cast aluminium body
Body colour: RAL 9004 or RAL 9003
CONTROL
Protocols: DMX512, RDM
Stand Alone: 3 rotatory knobs
DMX channels: 1 / 2 / 4 / 5 / 11channel
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 50W
Output (at 230V): 35 units on a single power line
Power factor: > 0,52
PHYSICAL
IP rating: 20
Cooling: active, silent operation
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 191x281x203mm / 7.52''x11.06''x7.99''
Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM
