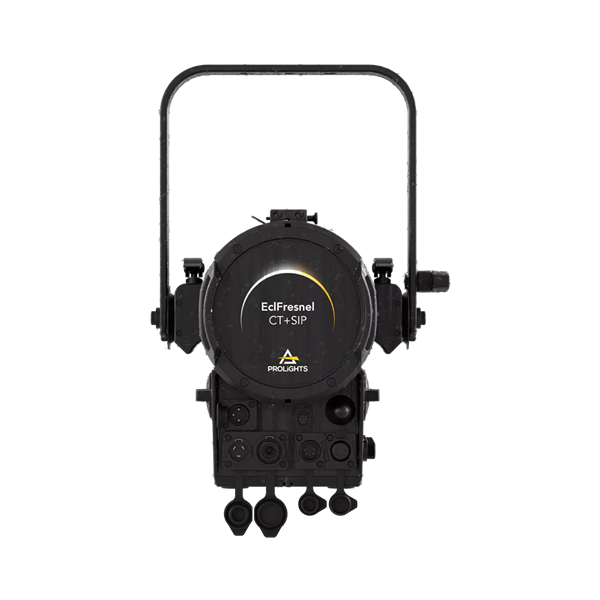

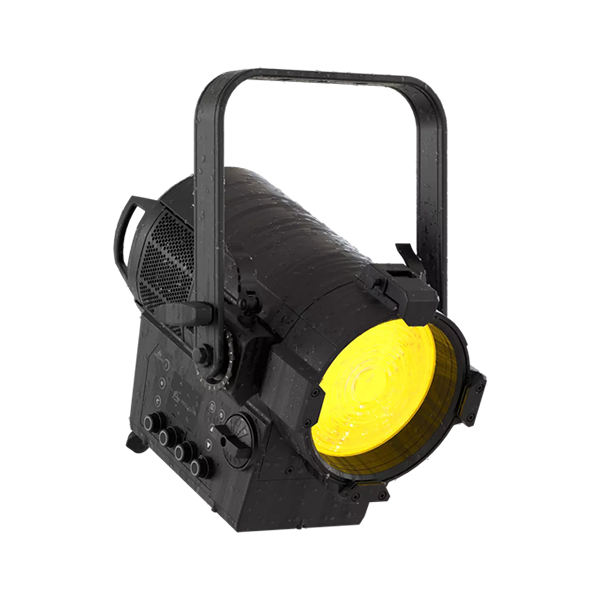

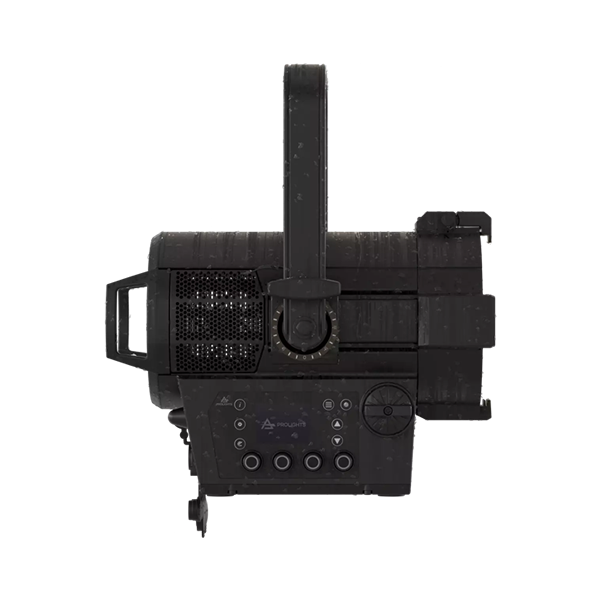

Prolights ECL CT+S IP LED Fresnel
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
EclFresnel CT+SIP is a 200W LED Fresnel, engineered with a new 6 colours light source and a 150mm / 6'' glass Fresnel lens. Being IP65 rated, the unit is both water and dust resistant ensuring safe application in any set or extreme locations, keeping lightweight and not scaling up in sizes.
The newly designed optical system allows a greater zoom range from 9° to 73°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders, and advanced connectivity both wired and wireless.
Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.
Main features:
200 W 6 IP65 colour LED Fresnel with 150mm/6'' glass lens
9-73° Manual zoom system
High quality CCT reproduction and advanced color control
New UI with 2.4'' display and 4 backlit pushable encoder
LIGHT SOURCE
Light source: Proprietary source manufactured in Europe by PROLIGHTS
Source: 200W 6 colour LEDs source
Luminous flux: (9,7°) 1'922 lm - (73,5°) 4'795 @4.000 K
Lux: (9,7°) 2'270 lx - (73,5°) 286lx @5m 4.000 K
CRI: 96,6 @3.200K; 97 @5.600 K
R9: 87 @3200K; 96 @5.600 K
TLCI: 87 @3200K; 94 @5.600 K
TM30 Rf: > 94 @3.200K; > 94 @5.600 K
TM30 Rg: < 101 @3.200K; < 102 @5.600 K
Source life expectancy: > 50.000 h
OPTICS
Zoom range: 9,7° - 73,5° manual
Lens diameter: 6'' / 150mm / 0.24''
Lens type: Fresnel glass lens with AR coating
Lens effect: Glass Fresnel lens providing a classic light fall-off
Additional optics: PC lens available as accessory
Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
Colour mixing: 6 colour LEDs source
CCT: Linear CCT adjustment from 1.850 K-20.000K
BODY
Bracket system: Sliding bracket for adjustable weight balance
Hardware on-board: filter frame, 8 doors barndoor, spigot
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: RAL 9004
Other: Strengthened zoom movement system for enhanced durability and stability
CONTROL
Protocols: DMX512, RDM, CRMX
Stand Alone: 4 pushable RGB backlit encoder
Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settings
Display: 2.4'' Color display
Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 6 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 48V
Max power consumption: 200W
Output (at 230V): 17 units on a single power line
Power factor: > 0,94
PHYSICAL
IP rating: 65 for temporary outdoor use (*)
Cooling: combination of heat pipe cooling system and low noise fan
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 WEIPU SF12 4P-F
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Low Voltage DC connector: XLR 3p for 48V
Dimensions (WxHxD): 286x513x356mm / 11.26''x20.2''x14.02''
Weight: 7,6kg / 16.76lbs
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, cTUVus
