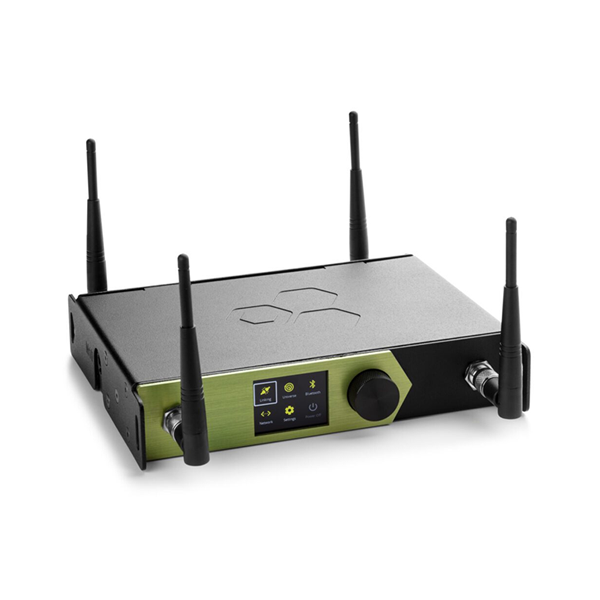

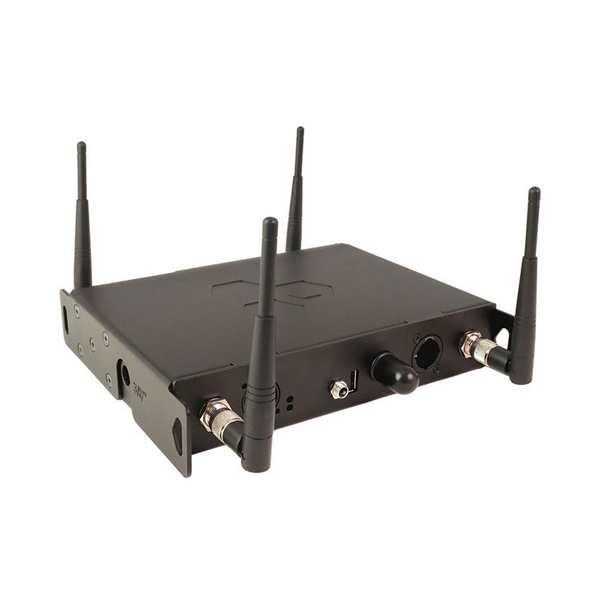

LumenRadio CRMX2 Stardust Transmitter
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
Eight Universe DMX/RDM transmitter with Ethernet and WiFi
Lumenradio Stardust is the problem solver for the most demanding users and situations. Featuring eight universes of CRMX2 and multiple connectivity options, it is the most sophisticated Wireless DMX system on the market. With the introduction of an integrated web portal for full control and configuration it has the reliability you’ve come to trust, with the universes you need.
Tailor your equipment to meet your specific needs with accessories such as V-Lock battery mount, rack mount, and wall mount.
Web portal provides a dashboard accessible from anywhere on the network, giving a status overview and ability to configure the device regardless of location.
Linking Key encrypts the CRMX transmission with user specified keys, making it possible to to add redundancy and move between CRMX networks in a completely new, smooth, way.
• Eight universe CRMX2 transmitter
• DMX/RDM, sACN and Art-Net 4
• Ethernet through 5 GHz WiFi
• Configuration via web portal or front panel
• Transmits CRMX², CRMX Classic, W-DMX G3 / G4S
Supported Protocols
DMX / RDM
sACN / Art-Net 1-4
CRMX
W-DMX G3 / G4s
Ethernet
WiFi 802.11b/g/n/ac
RF Characteristics
Frequency range: 2402-2480 MHz
Radio module: 4 x TimoTwo
5ms latency
128-bit encryption
Forward Error Correction
Connectors
Ethernet: RJ45
Antennas: 4 x RP-TNC
DC: 2.5mm/5.5mm Barrel connector
AC: powerCON Tru1
Power
PoE
DC 10-20 V
Backup Battery (15 min. runtime)
AC 100-240 VAC
Physical
IP20 Aluminium enclosure
Front panel color screen and rotary knob
M10 and ⅜” Threads
Rack and wall mount accessories
V-Lock battery mount accessory
22 x 20 x 4.4 cm
