Litegear LiteMat+ Plus 4 LED Panel

Litegear LiteMat+ Plus 4 LED Panel

Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938

Send Hire Enquiry
Send Hire Enquiry

LiteMat can be used anytime that soft and controllable light is required. As a key light, you can easily mount the unit on a lightweight stand, bar or attach it to a surface with adhesive Velcro®. Because it’s lightweight, LiteMat makes a great handheld fill light or can easily be mounted overhead.

The new LiteMat+ Plus series of LED light fixtures are the ideal flexible luminaire. LiteMat+ Plus incorporates everything you love about LiteMat, features the new CineMitter LEDs and adds some distinctly new features. The most notable change is the PL7 locking connection system, which happens to be the same for every size of LiteMat+ Plus and the new LiteDimmer+ Plus series of dimmers with built-in camera battery mounts.

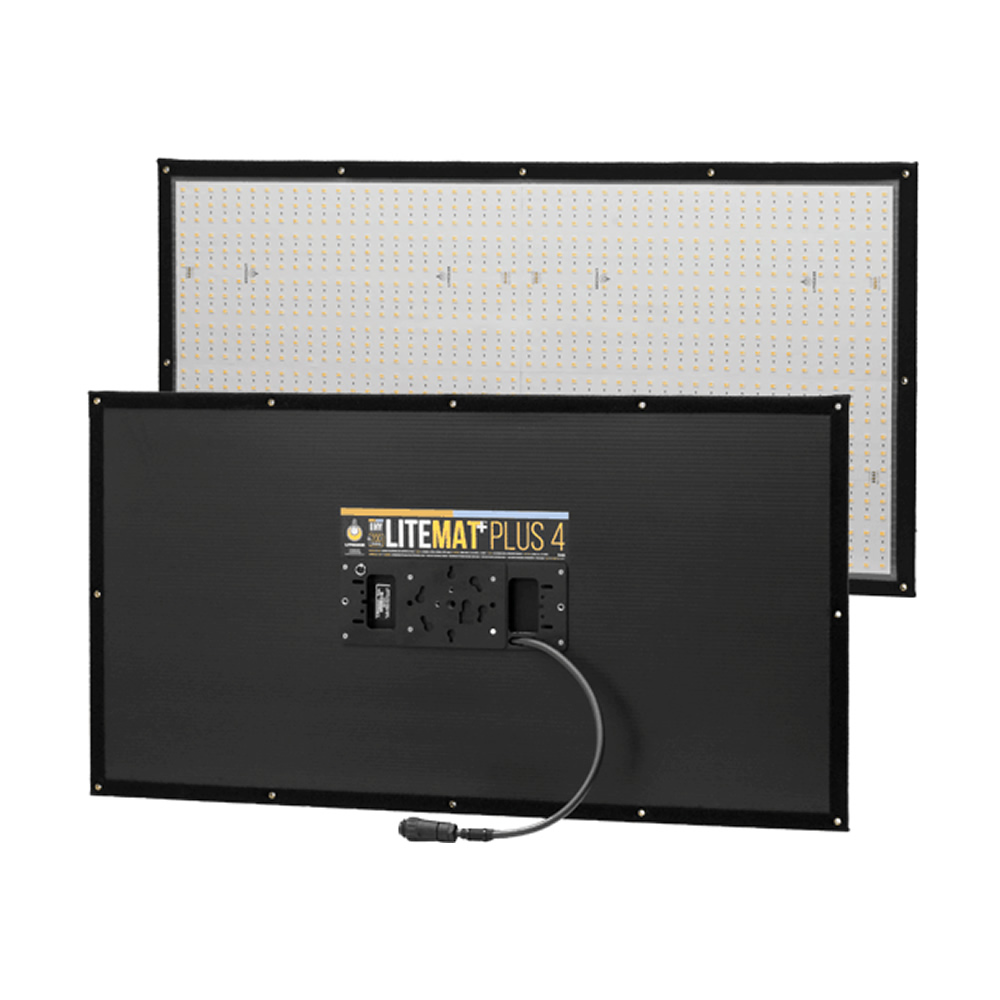

The LiteMat+ Plus 4 is based on three “tiled” light engine measuring 240 mm x 480 mm. The head unit features 2304 new CineMitter LEDs and is covered by a thin, clear polycarbonate layer and bordered entirely with Velcro® “loop” fastener. Mounting is provided with a Kino Flo®-compatible, removable gimbal mount. The “soft-through-pixelization” method allows the LiteMat+ Plus 4 to achieve surprisingly bright light levels.

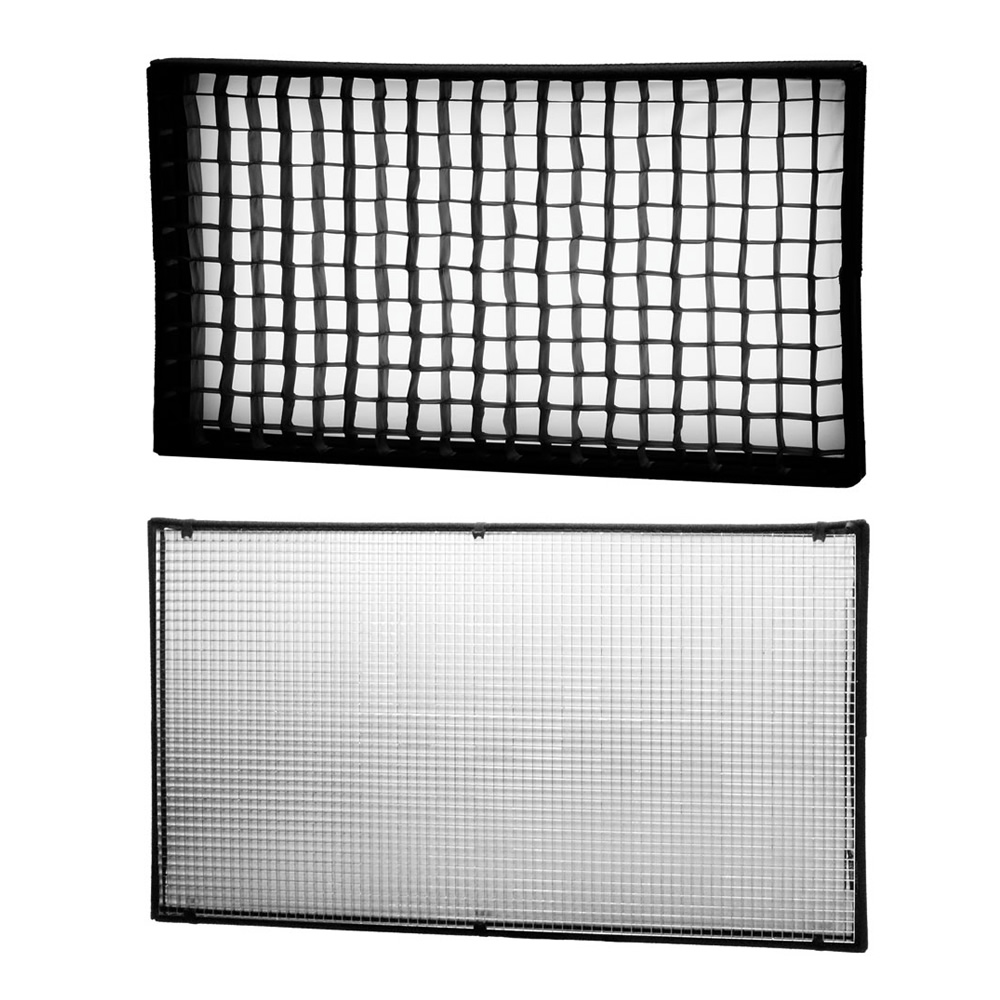

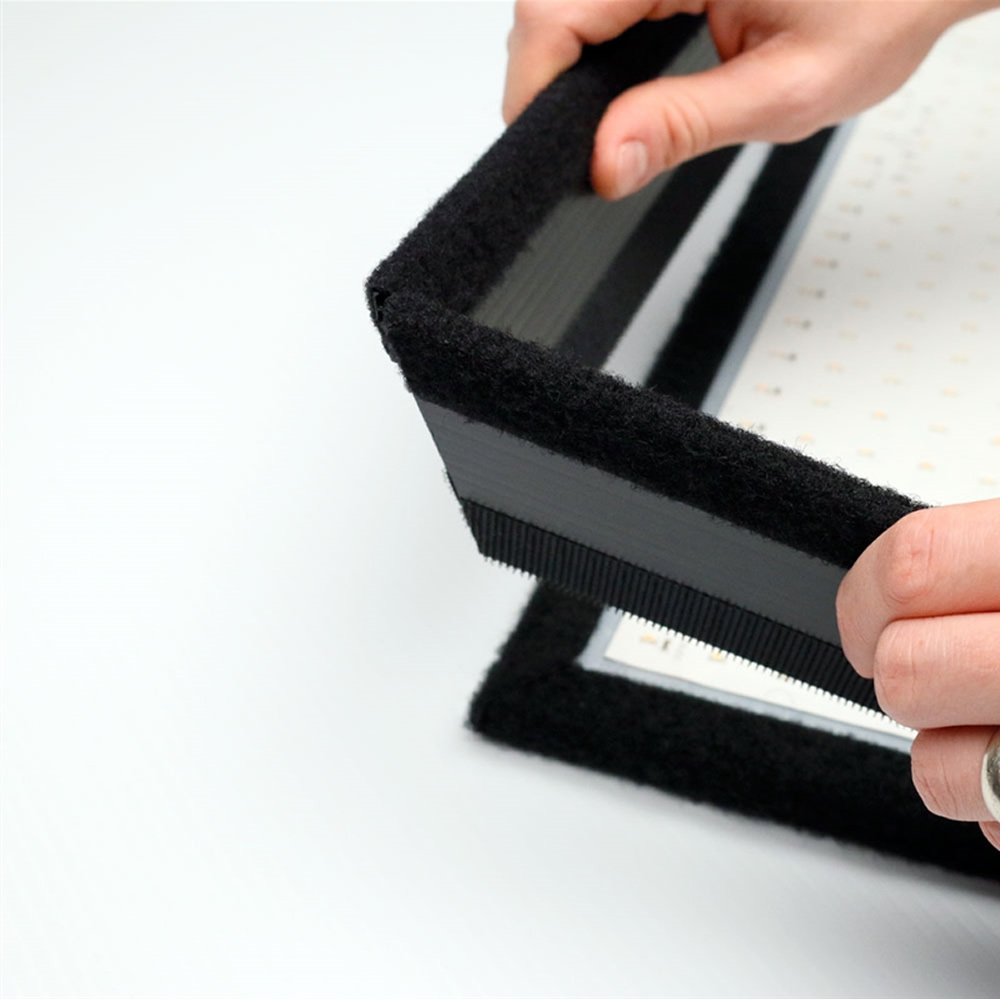

Accessories include a 3-inch PolySkirt that helps control the light output by limiting the amount of light exiting the fixture beyond the 120-degree primary field. There are 3 densities of Velcro®-attached diffusers that mount to the PolySkirt along with a light-control louver. The ParaSquare Louver is an aluminized sheet with parabolic elements within each hexagonal cell. It works well to provide desirable light output with refined edges and an even field. Its unique properties allow for lossless light output while providing outstanding peripheral light reduction.

Comes complete with:

  • LiteMat+ Plus 4 Head

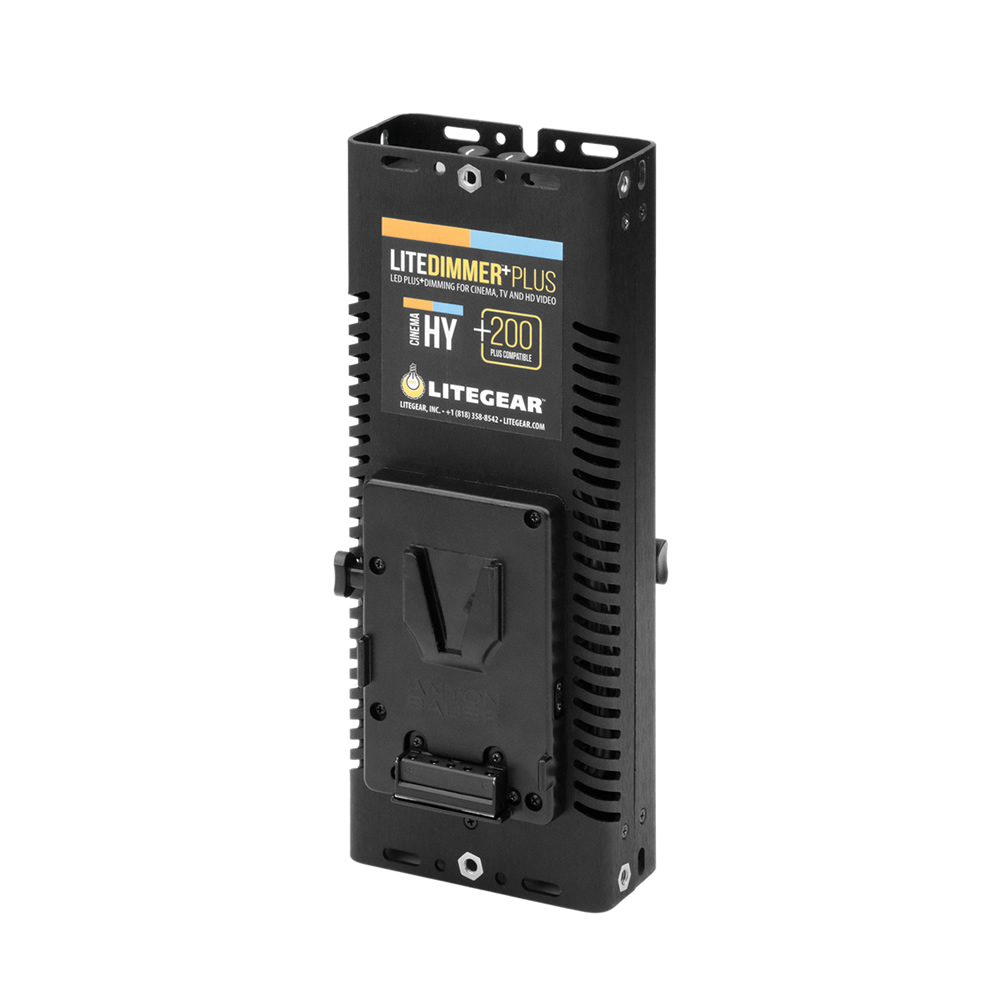

  • LiteDimmer Plus 200W V-Lock Driver
  • LitePower PSU
  • 16A - IEC Jumper
  • LiteMat PL7 Extension 3M
  • LiteMat PolySkirt
  • LiteMat ParaSquare Louver
  • LiteMat Diffuser Full, Half & Quarter
  • LiteMat SnapGrid

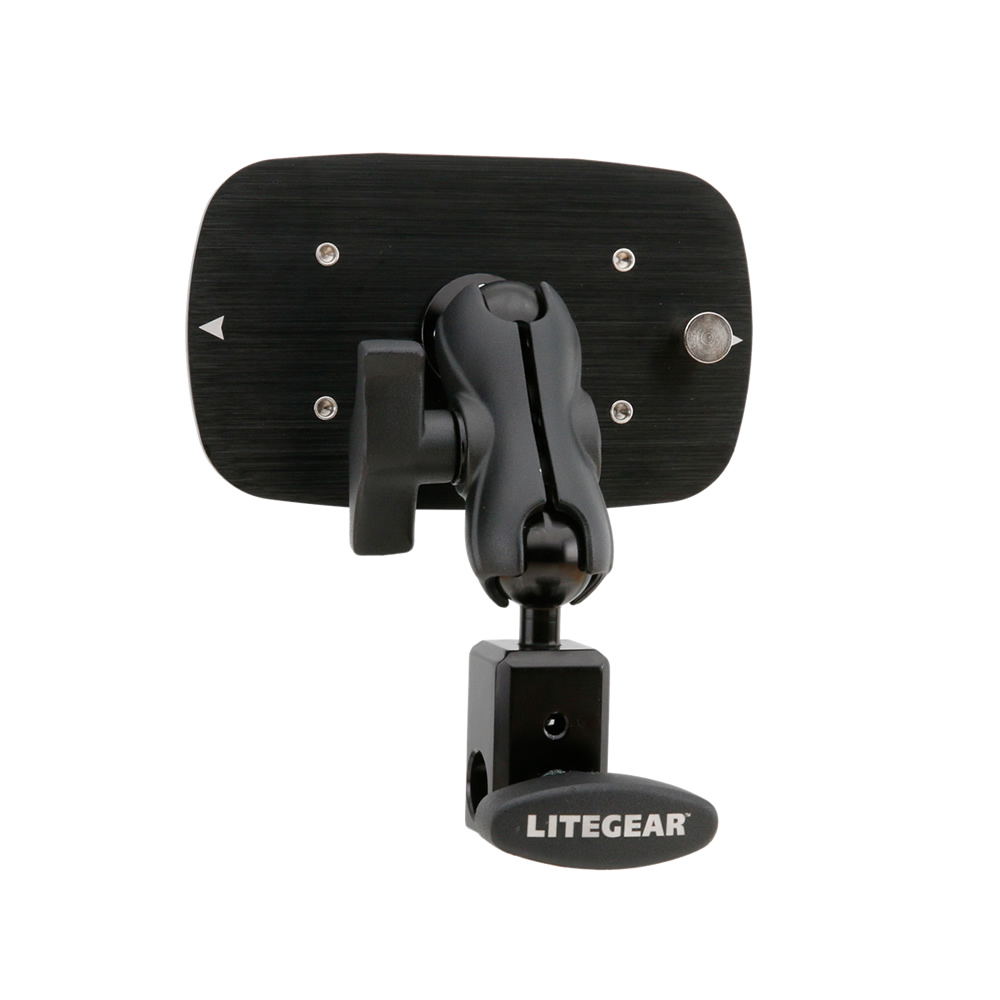

  • LiteMount 16mm Receiver

Optional Accessories

V-Lock Battery Kit

  • Size: H 533mm x W 1016mm x D 23mm
  • Weight: 2.81 kg
  • Voltage: 24V
  • Current: 8.33A
  • Power: 200W
  • Rigging: 16mm Receiver
  • CCT: 2600 - 6200K 95+ CRI, 95+ TLCI
  • Lumens: 10192
  • Primary Field: 120 degrees
