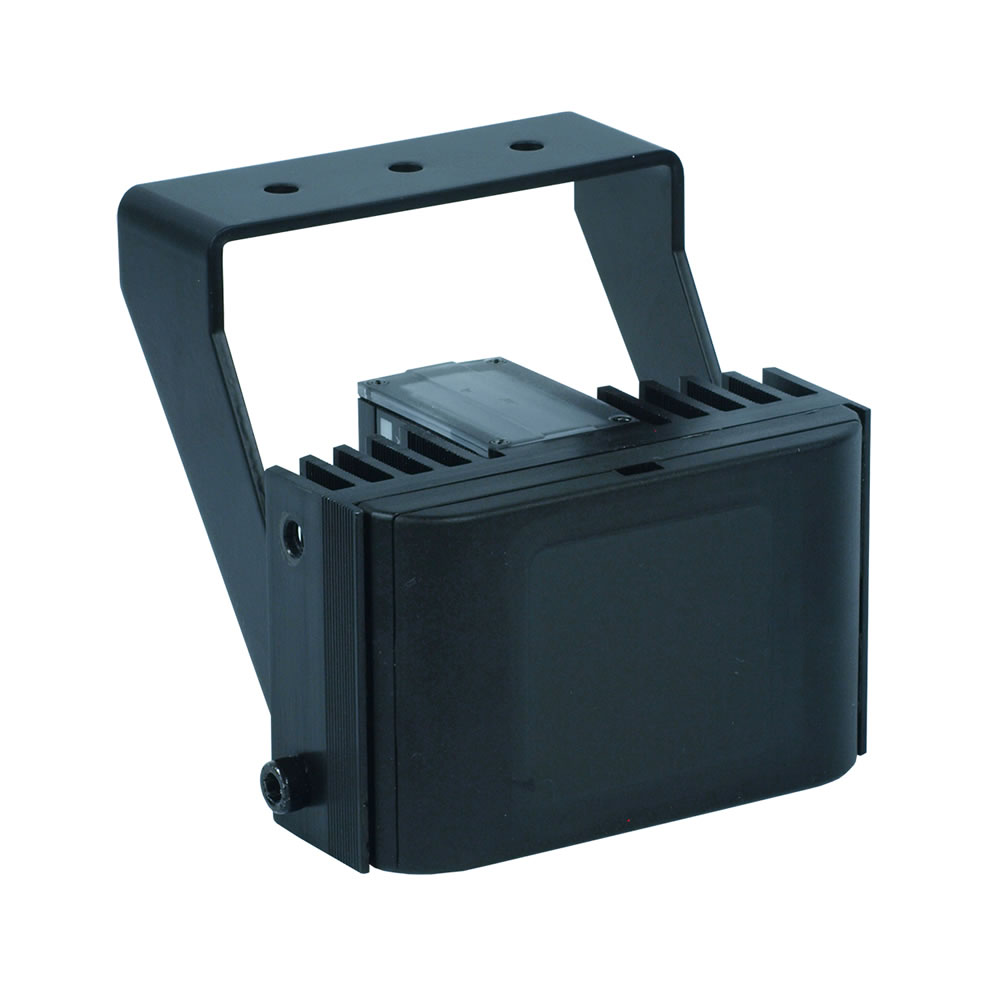

Infra-Red Flood 15W LED
High performance Infra-Red LED illuminators with enhanced optical output and outstanding reliability, delivering excellent night-time images for reality television.

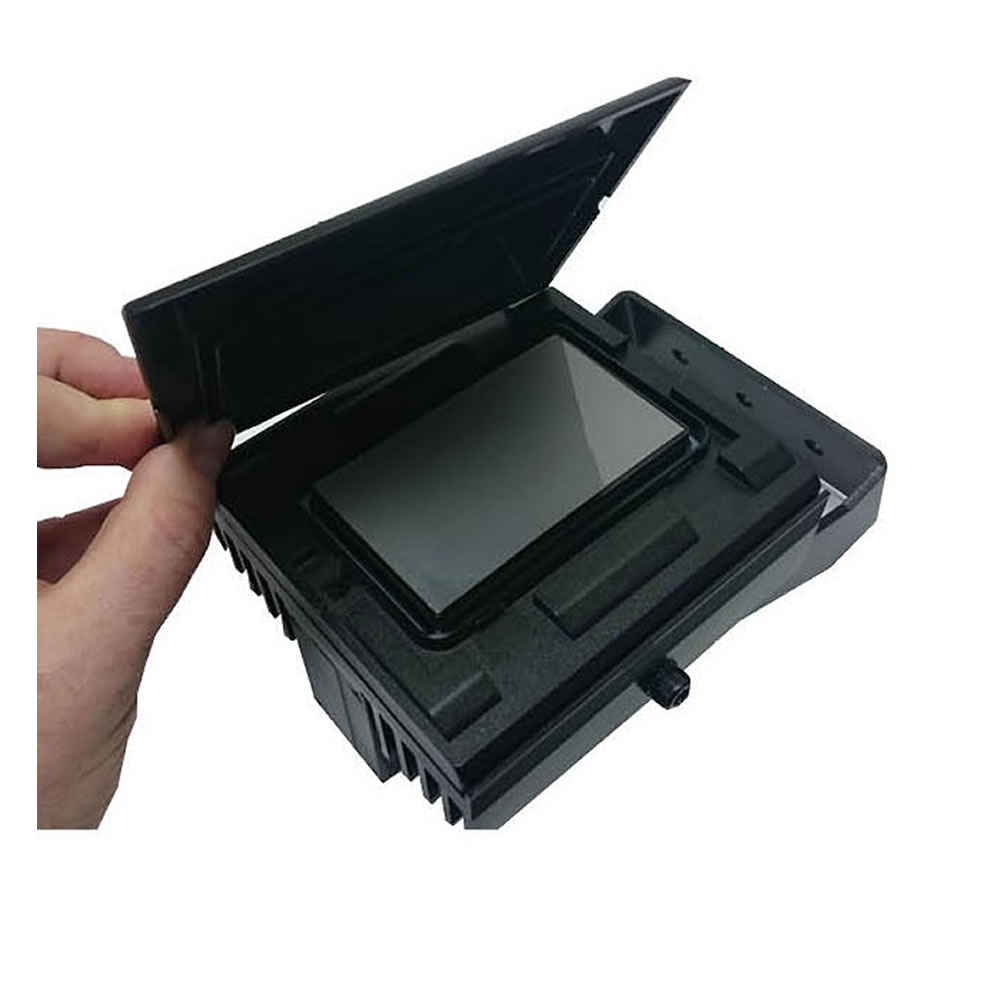

The interchangeable lens diffuser system allows quick and easy alteration the beam angle.
Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
Included lenses: 10° circular, 30°, 60° and 95° elliptical
Operation can be controlled remotely as on/off or via lux level with the in-built photocell sensor for unattended installations.
Power is supplied via our 12V PSUs and LED XLR4 cabling
- Latest SMT dual core LED™ technology
- Distances up to 130m (400’)
- 850nm Wavelength
- Low power consumption (15W)
- IP66 weather proof rating
- Built-in Photocell IR On/Off
- Option for remote switching via contact closure
- 12-32V DC / 24V AC +/-10%
Photocell: Adjustable 20 -70 Lux
Operating Temperature -50° to 50ºC (-58º to 122ºF)
Mounting: 16mm Receiver
Input Voltage: 12-32V DC or 24V AC +/-10%
IR: 850nm (Faint Red Glow Only)
