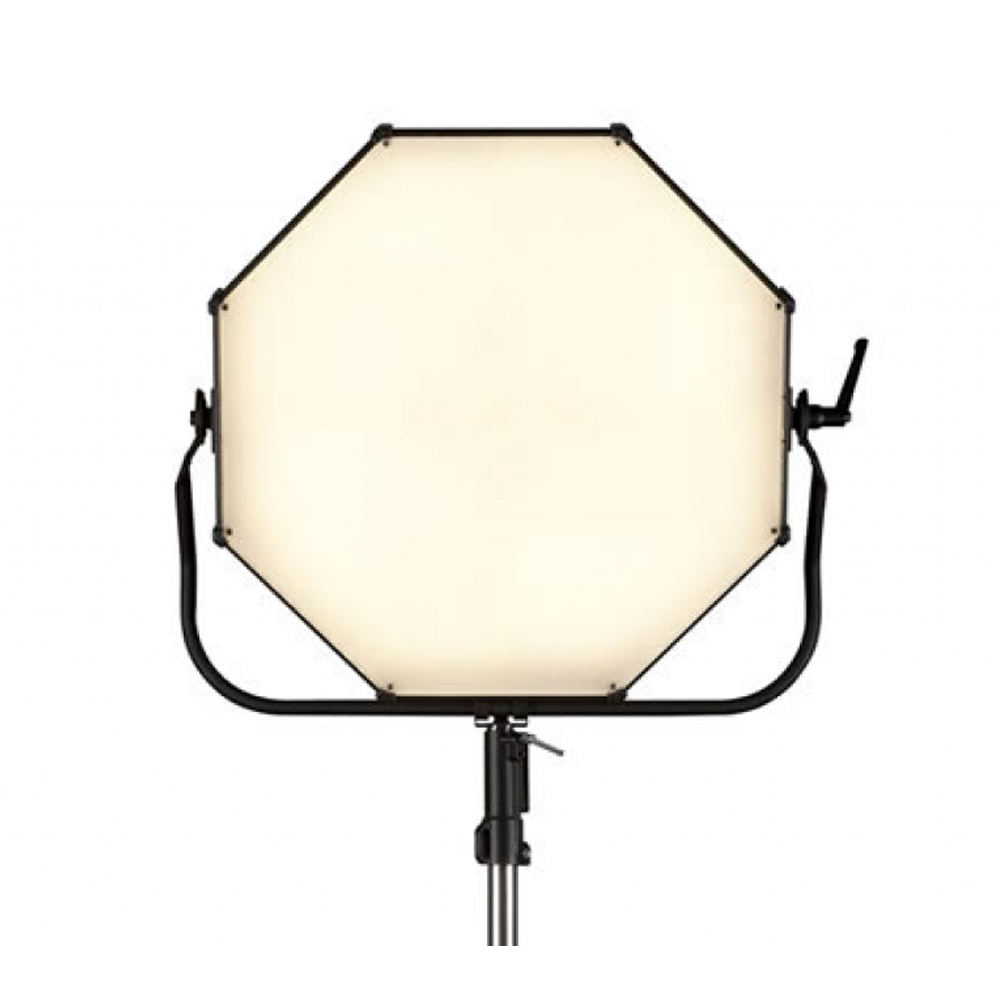

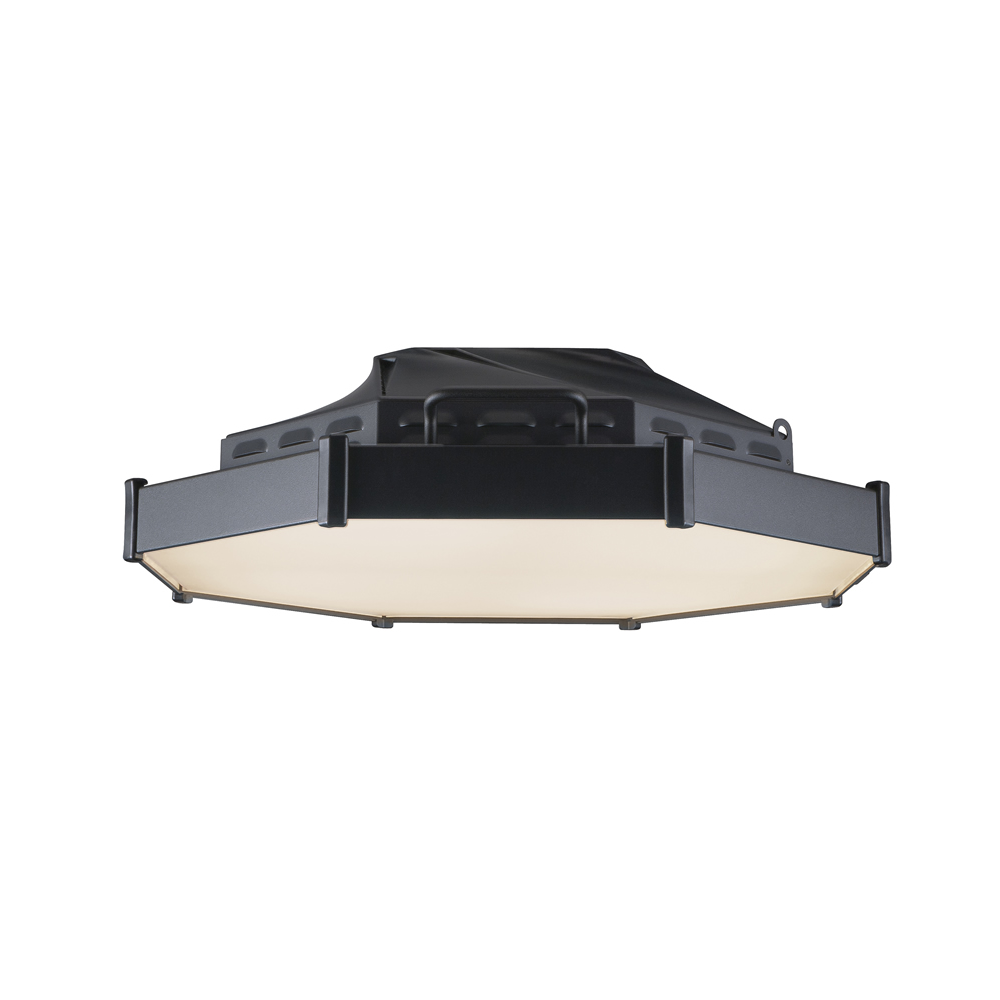

Introducing the new Chroma-Q® Space Force™ octo LED fixture - the next frontier in space lighting.
The Space Force™ octo is a cutting-edge variable white LED Space Light that is a modern replacement for conventional space lights or soft light sources commonly used in film and TV studios around the world. The Space Force™ benefits from cool running, energy efficiency, lightweight design, and minimum maintenance. CCT tuneable between 2,800K and 6,000K, and natively single source, the diffuse nature of its output negates the need for silks or skirts. Extensive RDM functionality is provided through wired DMX connection.
Hanging options include a 3 leg bridle, yoke with 28mm spigot, and a low-profile hanging bracket with spigot or trigger clamp

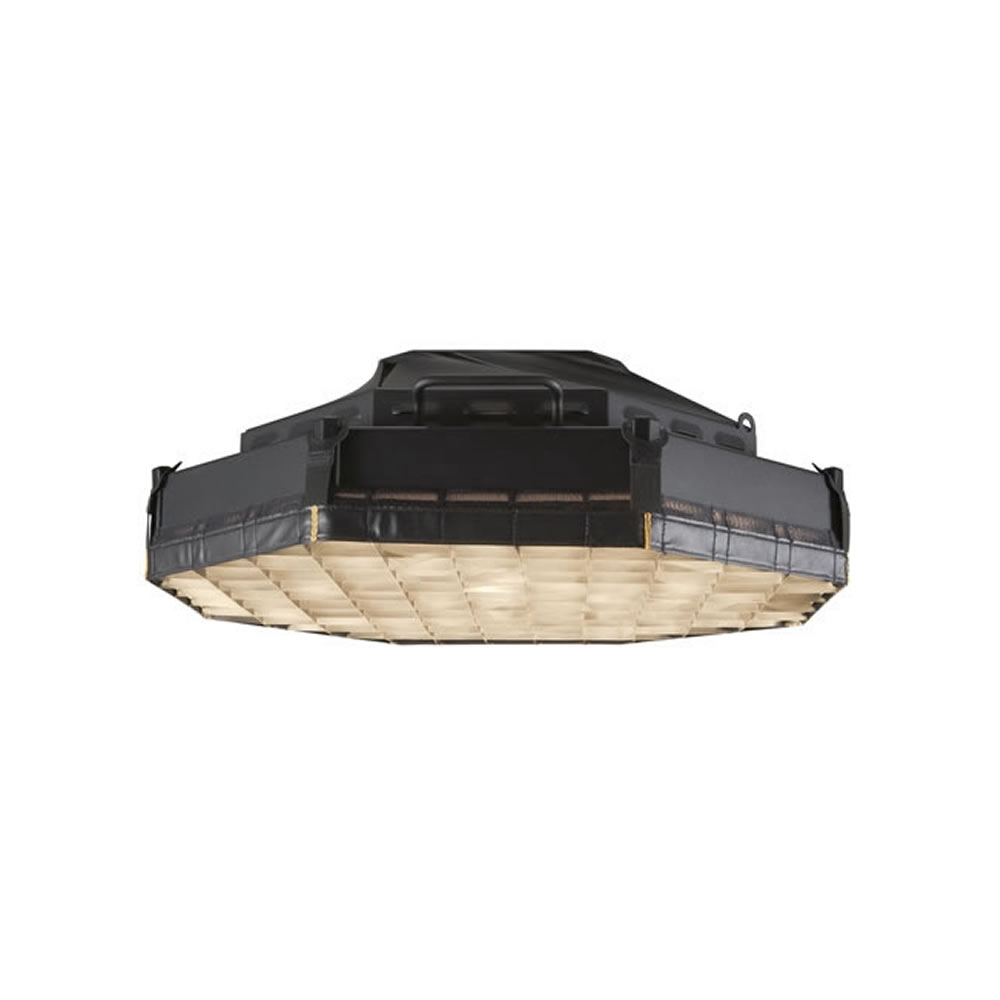

We can also provide an soft eggcrate
| Net Dimensions (WxHxD) | 655mm x 203mm x 655mm / 25.8" x 8" x 25.8" |
|---|---|
| Net Weight | 8kg / 17.6lb |
| Shipping Dimensions (WxHxD) | 737mm x 737mm x 254mm / 29" x 29" x 10" |
| Shipping Weight | 11kg / 24lb |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC 50-60Hz 400VA |
| Power Factor | 0.97 |
| Power Consumption | 333W @ 120V AC, 331W @ 230V AC |
| Inrush Current | 56A @ 120V AC, 82A @ 230V AC |
| Idle Power Consumption | 18W @ 120/230V AC |
| Residual Current (max.) | 0.4 mA |
| Power Connectors In/Out | powerCON TRUE1 |
| Data Connector In/Out | XLR 5-pin |
| Operating Temperature | 0°C to 40°C |
| Control Protocol | ANSI E1.20 RDM over ANSI E1.11 USITT DMX 512-A |
| Cooling System | Convection |
| Construction | Powder Coated Aluminium |
| Colour | Black |
| Built-In Hardware | Suspension Hanger Brackets |
| IP Rating | IP20 |
| Approvals | CISPR 22:2008 / EN55022:2010 (Class A), & CISPR 24:2010 / EN55024:2010, FCC Part 15 Subpart B:2015, ICES-003:2012; UL 1573:2003 / R:2014-01, CSA C22.2 No. 160-M1983 IEC 60598 |
