Birdie Track System
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry

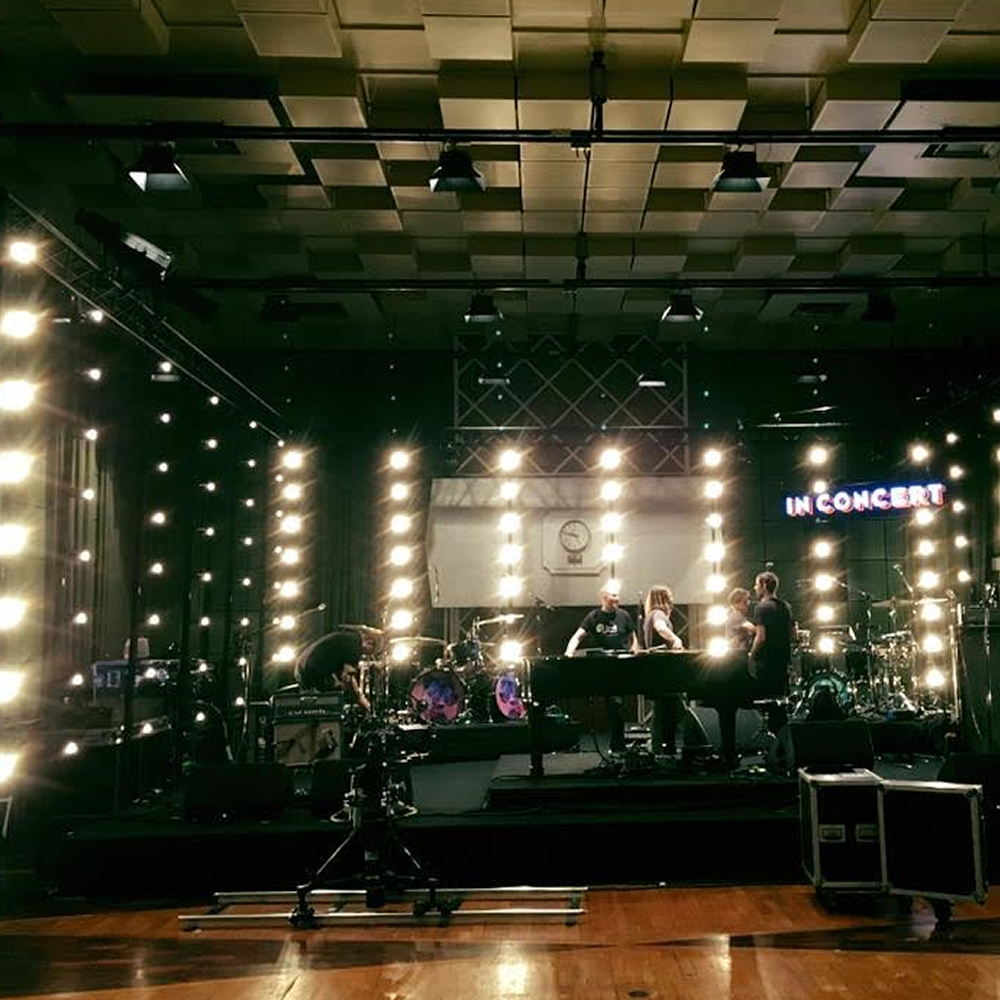

Version 2 Birdie Track is a flexible rigging and power distribution system for PAR 16 Birdies. The system enables birdies to be flown in a variety of orientations from multiple pick up methods. It also offers an aesthetically pleasing solution when providing Theatrical foot lights.
General
- Colour - Black
- Construction - Aluminium / Steel
- IP Rating - IP 20
Electrical
- Voltage - 240v (no transformers required)
- Track Capacity - 16A
- Lamps - GU10 50W 35 Degrees
Track Dimensions
- Length - 2 meters
- Depth - 33 mm (55mm total with supports)
- Width - 41mm

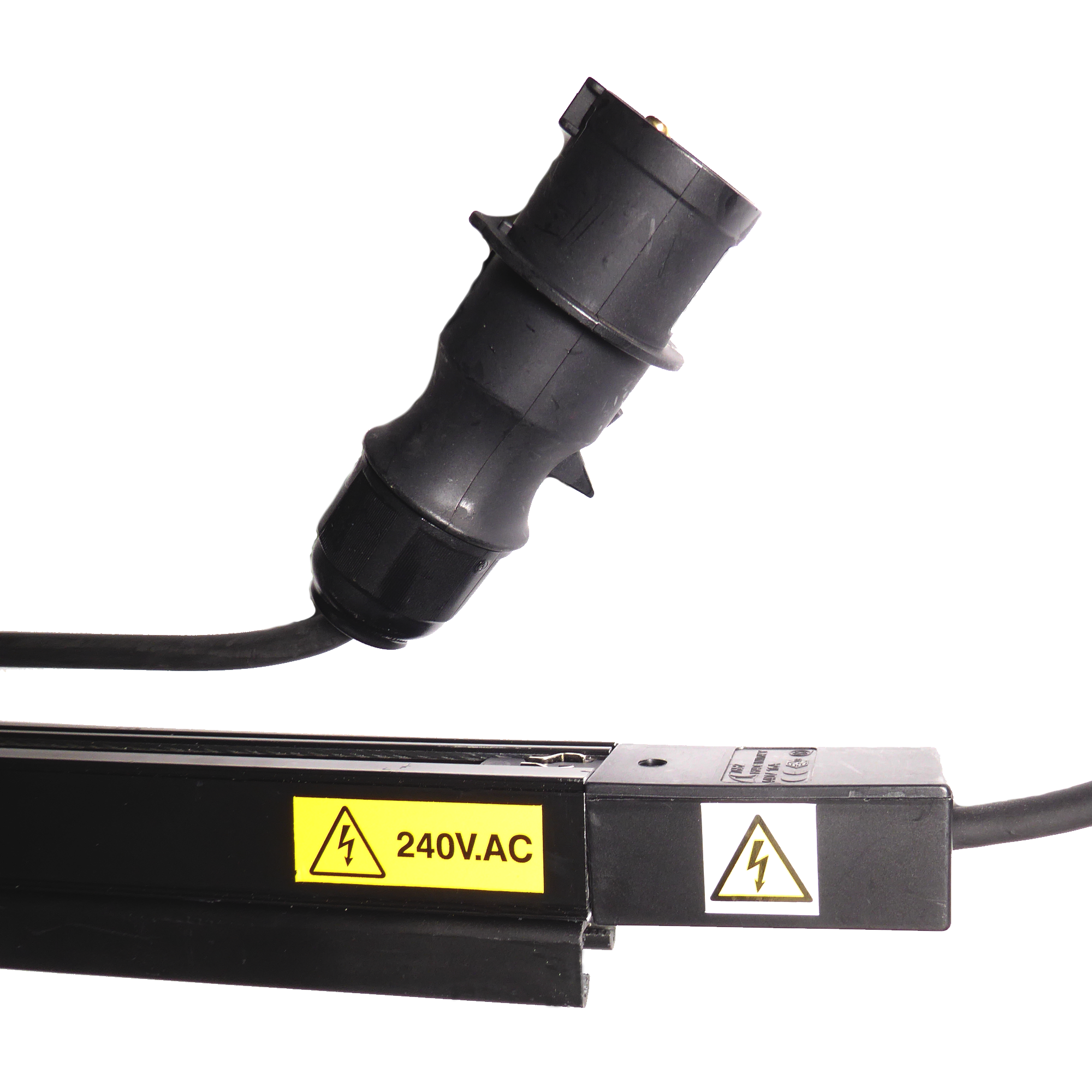

- 1 x Matt Black 16A Ceeform Connector - 3 Meter Input Cable
Hanging Arrangements
- Floor Mounted (Direct to floor)
- Trigger Clamp (Horizontal / Vertical)
- TV Spigot (Horizontal / Vertical)
- Eye Bolt (Horizontal)Track sections can be coupled together electrically and mechanically up to 4 meters vertically or 18m horizontally.
Supplied as standard with 8 heads on a 2m track.
Up to 24 lengths can be transported on a single width meatrack.
Please contact a Version 2 Project Manager to discuss the versatility of this unique system further.

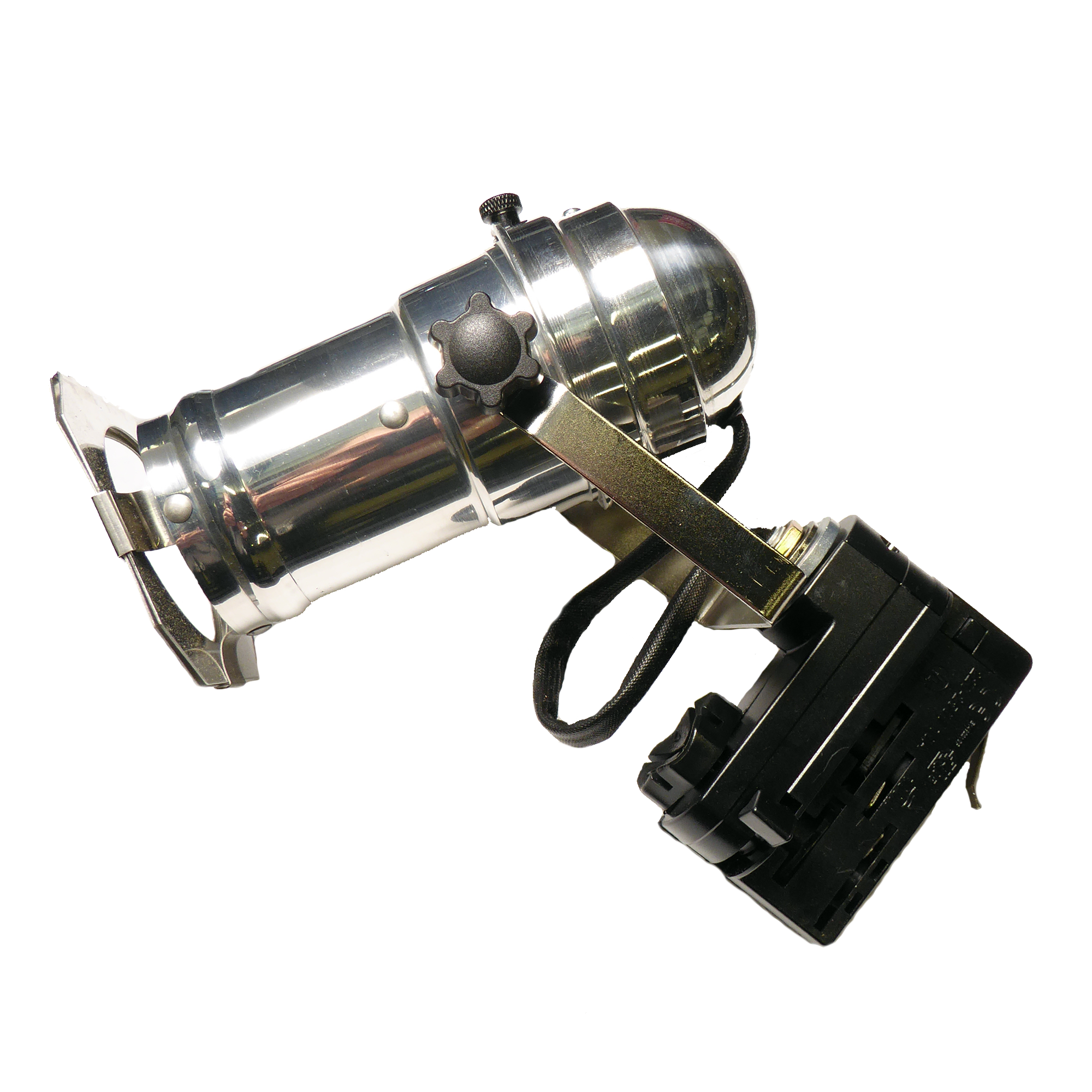

Par 16 Birdie 230v Track Mount
Lamphead Type: | PAR 16 Birdie |
Colour: | Black or Chrome |
Lamp Type: | PAR 16 |
Power Consumption: | 50W |
Voltage Range: | 230 V |
Lamp Base: | GU10 |
Dimmability: | Yes, 0 - 100 % via external dimming system |
Connector: | 3 Circuit Lighting Track Connector |
Correlated Color Temperature: | 3200 K |
Beam Angle: | 35° |
Product Weight: | 220 g |
External Length / Height: | 56 mm |
External Width: | 56 mm |
External Depth: | 130 mm |
External Transformer: | Not Required |
Mounting: | 3 Circuit Lighting Track Connector |
Certifications: | CE |
SHVC: | To be advised |
Cable: | Fitted with high temperature mains cord |
