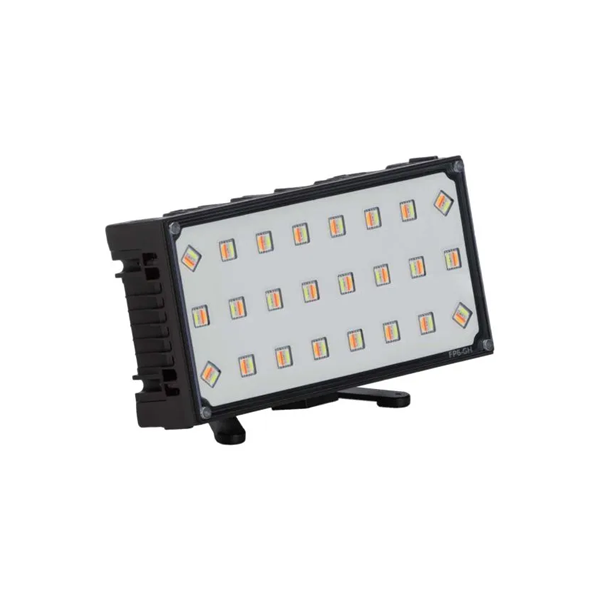

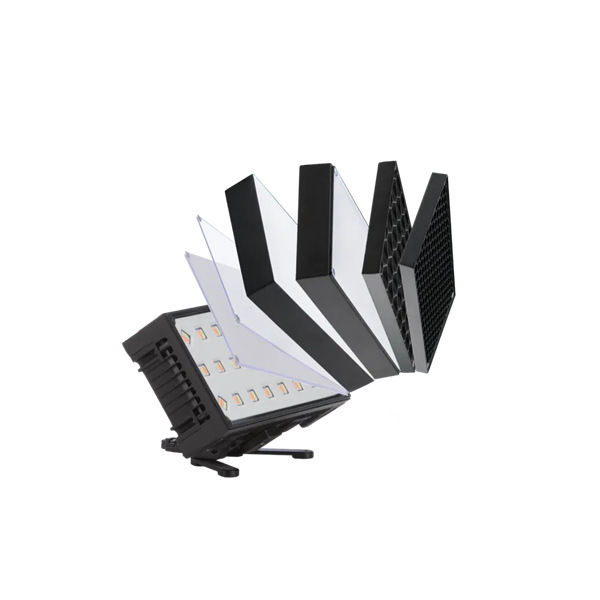

The Astera HydraPanel is a battery-powered LED panel for film, studio and stage lighting. Included with the HydraPanel are six light modifiers consisting of various Diffusors, EggCrates and a GelHolder. The HydraPanel can be mounted with its FlexBase accessory, Babypin and backside magnet. With the ConnectorPlates, up to four panels can be connected to form one bigger panel. For longer installations it can be wired for power and data via an Astera PowerBox.
Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power.
Mount anywhere, Lighting anything
LED Engine - Titan LED Engine
Colors - RGBMintAmber
Total LED Power - 25 W
LED Power Draw -17 W
Luminous Flux 3200K - 1 102 Lumens
Luminous Flux 4000K - 1 287 Lumens
Luminous Flux 5500K - 1 298 Lumens
Light Output 3200 K @ 1m - 443 Lux
Light Output 4000 K @ 1m - 512 Lux
Light Output 5500 K @ 1m - 516 Lux
CRI (Ra)/ TLCI 3200- 6500 K - ≥96
Beam Angle - 110° x 100°
Field Angle -150° x 145°
Strobe - 0 – 25 Hertz
Pixels - 6
Battery Runtime - up to 20 hours
Battery Runtime Max Brightness -1 h 45 m
Battery Lifetime - 70 % after 300 cycles
Charging Time (nominal) - 3 hours
DC Input - 24 VDC – 0.85 A
DC Connector - 5.5 mm x 2.1 mm
Wired DMX -Yes (via FP1-PWB/ FP3-DTL/ PWB-2-86)
CRMX Receiver - Built-in
BluetoothBridge BTB - Built-in
Wireless Protocols - CRMX, UHF, Bluetooth, WiFi
Wireless Range - CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control - Yes
ControlSync - Yes
TouchSlider - Yes
IP Rating unwired - IP65 (only with PB15-PLG)
IP Rating wired with PWB-CAB-5/-10/-15/-0.2 - IP65
Ambient Operating Temperature - 0 – 40 °C / 32 – 104 °F
Weight - 604 g / 1.3 lbs
Dimensions L x W x D - 166 mm x 85 mm x 43.5 mm / 6.53" x 3.34" x 1.71"
Mounting Options - 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet
