Arri M8 800W MSR Par Head

Arri M8 800W MSR Par Head

Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938

Send Hire Enquiry
Send Hire Enquiry

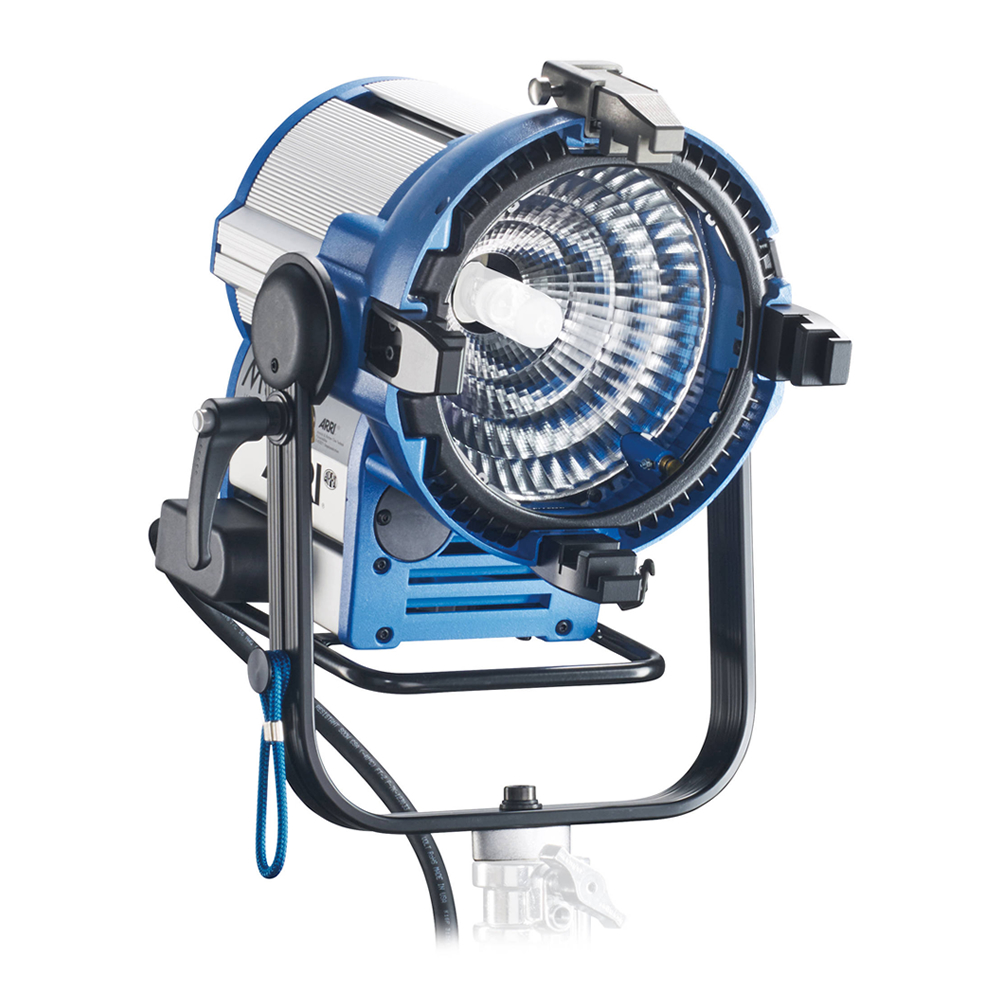

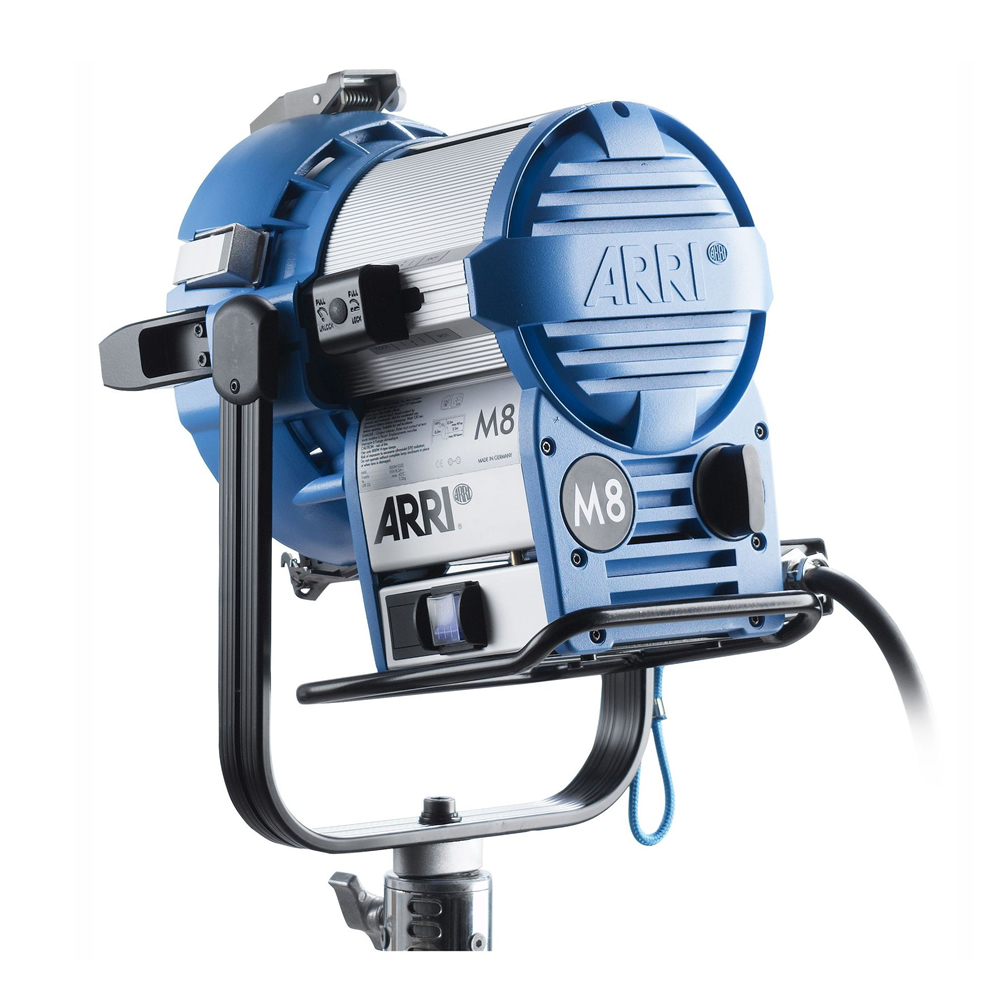

The M8 is the latest and smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15° and 60° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.


  • Lens-less MAX Technology: Easy to use
  • Light output comparable to 1,200 W fixture
  • Smallest lamphead with MAX Technology reflector
  • Highly mobile for a wide range of uses
  • Focusable between 15° and 60°
  • Cross-Cooling allows safe operation even at 90° tilt
  • Uses existing 575 to 1,800 W cables with international connector
  • Suitable for high frame rate images
  • IP Rating IP23
  • Tilt locks to hold heavy accessories stable
  • Mains Plug: VEAM, Schaltbau (GTV-Standard)
  • Lamphead Type: Open Face with Facetted Reflector, 800 W
  • Reflector: MAX Technology reflector made of high purity aluminium
  • Lamp Type: Metal Halide 800 W/SE
  • Power Consumption: 800 W
  • Lamp Base: G22

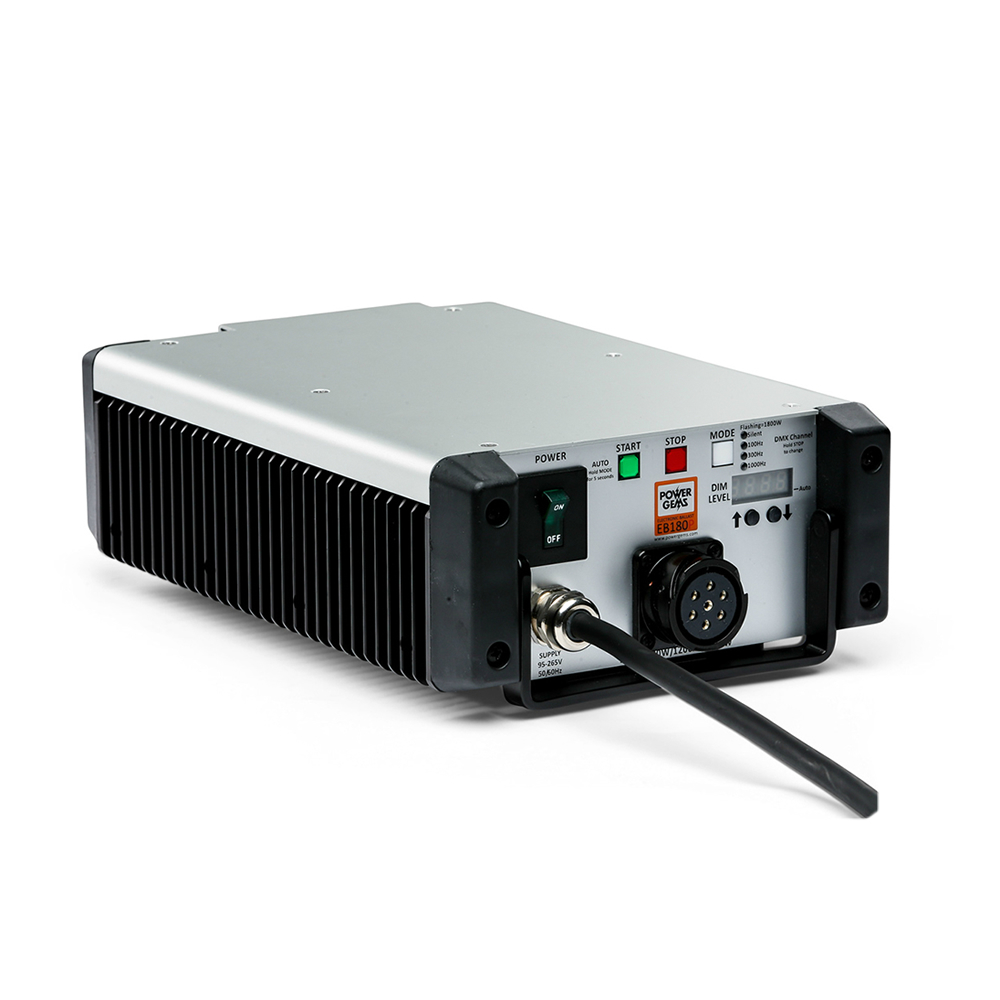

  • Dimming: yes, 50 to 100 % via Ballast Unit
  • Correlated Color Temperature: 6,000 K
  • Beam Angle: 15° to 62°
  • Weight in kg: 8 kg
  • Lens / UV-Protection Glass Diameter: 200 mm
  • Accessory Diameter: 230 mm
  • Mounting: Spigot 28 mm
  • Housing Color: Blue/Silver
  • Protection Class: IP23
