Building on the success of the acclaimed Robe T-Series, the T3 Profile™ elevates high-power multispectral performance to the ultimate level. Designed for long-throw applications, it delivers unparalleled output, light quality and precise colour control.
Delivering over 40.200 lumens (integrating sphere) from its 1.400W MSL™ (Multi-Spectral-Light) LED engine, the T3 Profile™ stays true to its theatrical heritage. Excelling at nuanced colour work, it offers user selectable CMY, RGB or individual colour emitter control for advanced users.
Colour features include a DataSwatch™ virtual colour library; factory calibrated whites; extensive 2.700K to 8.000K CCT range (extended range 1.800K – 10.000K); lamp selectable tungsten emulation; and MCE™ multicoloured effects directly from the LED engine. The virtually controlled CRI of 80-95+ delivers perfect colour rendition and flawless skin tones.
Vital ultra-smooth theatrical dimming is achieved via our L3™ 18-bit dimming system, delivering imperceptible fades-to-black.
The feature set includes high-precision Plano4 FC™ Full Curtain four-plane shuttering system; static and rotating gobo wheels; animation wheel; dual independently control prisms (6-facet linear and circular), and an iris.
Our Robe proprietary optical design, with a zoom range of 6° - 65° delivers crisp projections, with perfect colour homogenisation even when used with shutter and gobo elements. It accommodates the insertion of gobos, diffusion and prisms at any point across the entire zoom range.
T3 Profile™ features our new ProFrost™ progressive frost system. This patented system inconspicuously softens and dissolves projections to whatever level desired-giving designers previously unattainable diffusion control.
A dedicated plus/minus green channel, and Cpulse™ flicker-free management for consistent flicker-free results across all visual systems meet the demands of broadcasters.
Engineered for noise-sensitive environments, T3 features console-adjustable fan modes for consistent output. AirLOC™ (Less Optical Cleaning) technology reduces airborne particle adherence, keeping optics cleaner for far longer, greatly increasing times between maintenance.
The Epass™ ethernet pass through switch safeguards network connectivity, while the REAP™ (Robe Ethernet Access Portal) allows network monitoring via a web interface.
Removing the need for pre-use pan and tilt calibration, MAPS™ (motionless Absolute Positioning System) allows fixtures to calibrate without movement, also removing audience distraction while resetting during a performance.
The T3 Profile™ is the ultimate long-throw multi-spectral profile fixture for today’s leading theatrical and broadcast designers.
Source
Light source type: MSL™ 1400 W Multi-Spectral LED engine (Patented)
LED life expectancy: min. 40.000 hours
Colour rendition: CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94
Typical lumen maintenance: L70/B50 @ 40.000 hours
Light source warranty: 3 years or 20.000 hours
Optical System
Robe’s proprietary optical design
High-efficiency zoom optical system, ratio 11:1
Zoom range: 6° - 65°, covers favoured field angles of most Theatre and TV lights
Fixture total lumen output: 40.200 lm (integrating sphere) 33.000 lm (goniophotometer)
Output lens diameter: 208 mm
Dynamic Effects and Features
Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call
self-re-calibration of the LED engine without the use of any external tool (Patent pending)
Colour mixing: CMY/RGB or RGBAL
White light: Variable CCT standard range 2.700K - 8.000K, extended range 1.800K - 10.000K
DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K,
5.600K and 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K
(red shift and thermal delay)
+ - Green correction function
Adjustable CRI from 80 to 95+
MCE™ - Split and multicoloured effects created directly from the LED engine (Patented)
Full curtain framing shutters: Patented Plano4 FC™ framing shutters module with 4 individually positionable
blades plus rotation of the complete framing system +-60°
Rotating gobo wheel: 6 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos specially
selected for theatrical and TV productions, patented slot & lock system
Static gobo wheel: 8 static, replaceable breakup gobos + open, all gobos specially selected for theatrical and TV
productions, patented slot & lock system
MLP™ - Patented Multi-Level Prisms allow multiple prisms to be "stacked" while retaining individual speed and
direction control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects:
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both
directions at variable speed
Iris: Motorized, stepless, pulse effects up to 3 Hz
ProFrost™ progressive frost system smoothly softens, melts and dissolves projections from 0° to 15°
Motorised zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
CPC™ Convection Passive Cooling Mode disables all fans for completely silent, convectiononly cooling
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical
elements. This increases the overall performance, light quality and time between routine cleaning and
maintenance.
UpLift™: To ease handling, clip on UpLift handles are designed to ease the burden. Handles are easily attached
and removed, greatly easing carrying and lifting of larger fixtures.
BARS™ - Brake Attribute Retention System (Patented) applied for internal movement affecting beam distribution
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe screen with battery backup, gravitation sensor for auto screen positioning, operation
memory service log with RTC, built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to
automatically maintain network connectivity
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 4
Control channels: 52, 36, 56, 57
Pan & Tilt resolution: 16 bit
Colour mixing: 8 or 16 bit (internal 18 bit)
Variable CCT: 8 bit
Adjustable CRI: 8 bit
+ - Green correction: 8 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Animation wheel: 8 bit
Prism indexing & rotation: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Automatic Pan & Tilt position correction
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or
vibration (Patented)
MAPS™ - Motionless absolute positioning system for Pan & Tilt (Patented) - on request

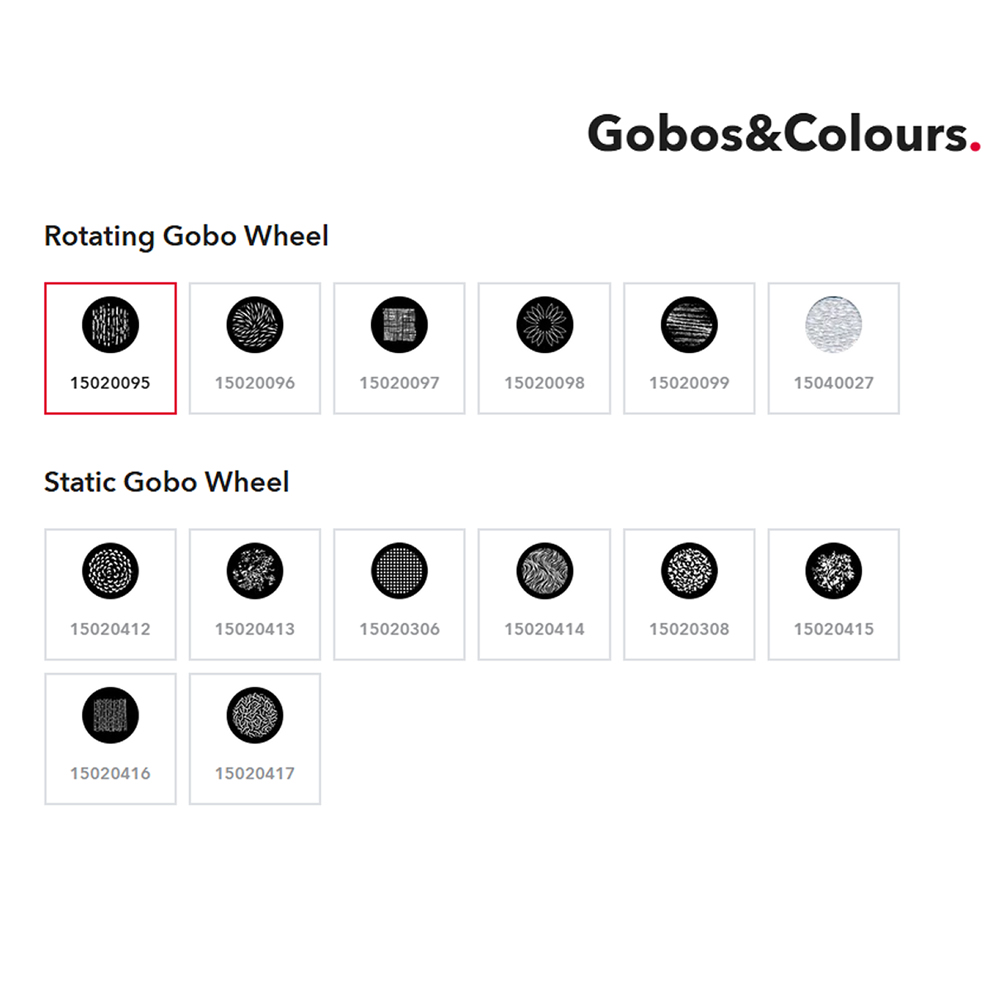

Static gobos
8x static glass gobos
Outside diameter: 30.8 mm
Image diameter: 25 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
patented slot & lock system for easy replacement of gobos
Rotating gobos
6x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 121 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Patented Plano4 FC™ framing shutters module
Full curtain framing shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: smooth with variable speed
Smooth and very precise motion of framing shutters
Rotation: +- 60° of the complete framing system
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5.800 BTU/h (calculated)
Noise Levels
Sound pressure level:
Sound power level:
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 120-240 V, 50/60 Hz
Power consumption: max. 1700 W
Power connector in: Neutrik powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
USB connector (series A) for lightmaster purposes
Approvals
CE Compliant
cETLus Compliant
Mechanical specification
Height: 832 mm (32.7") - head in vertical position
Width: 506 mm (19.9")
Depth: 347 mm (13.7") - head in vertical position
Weight: 46.5 kg (102.5 lbs)
Ingress protection rating: IP20
Rigging
Mounting positions: 0°, 32°, 90°
Universal operating position
Mounting points: 5 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Pan & Tilt transport locks
