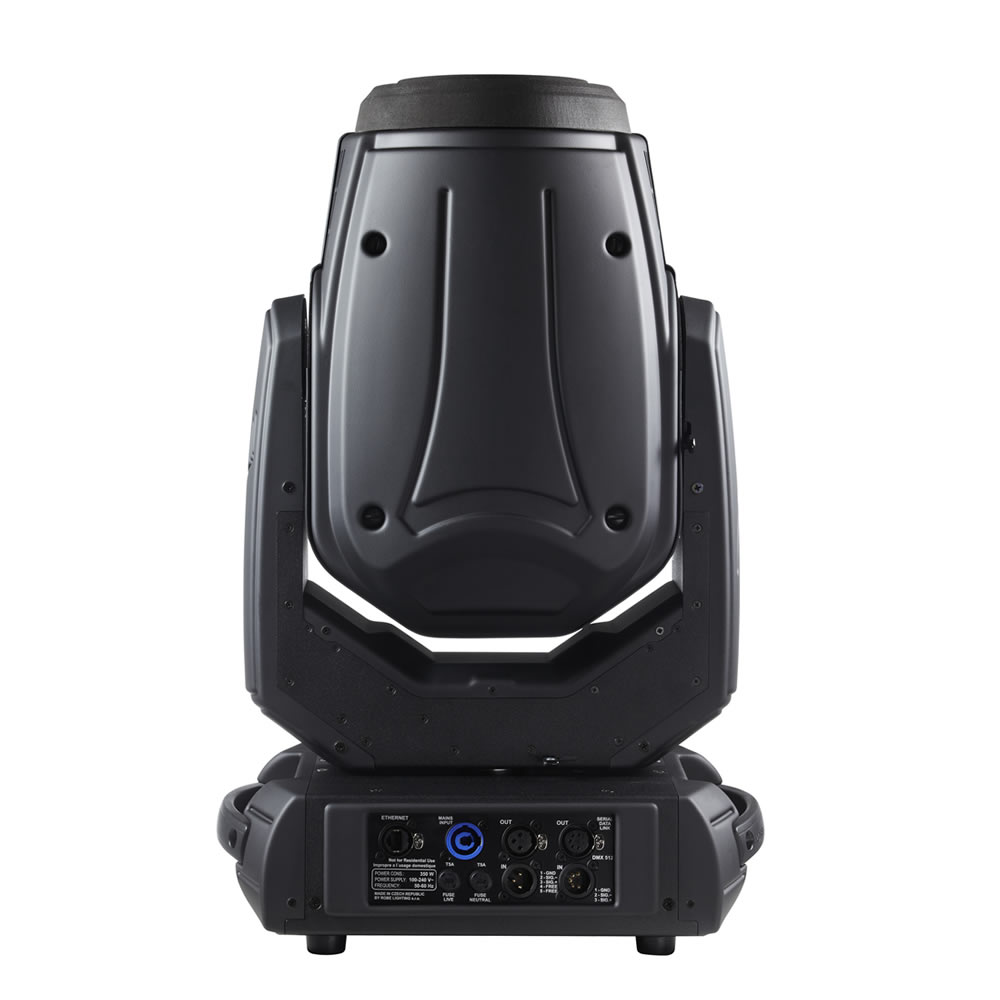

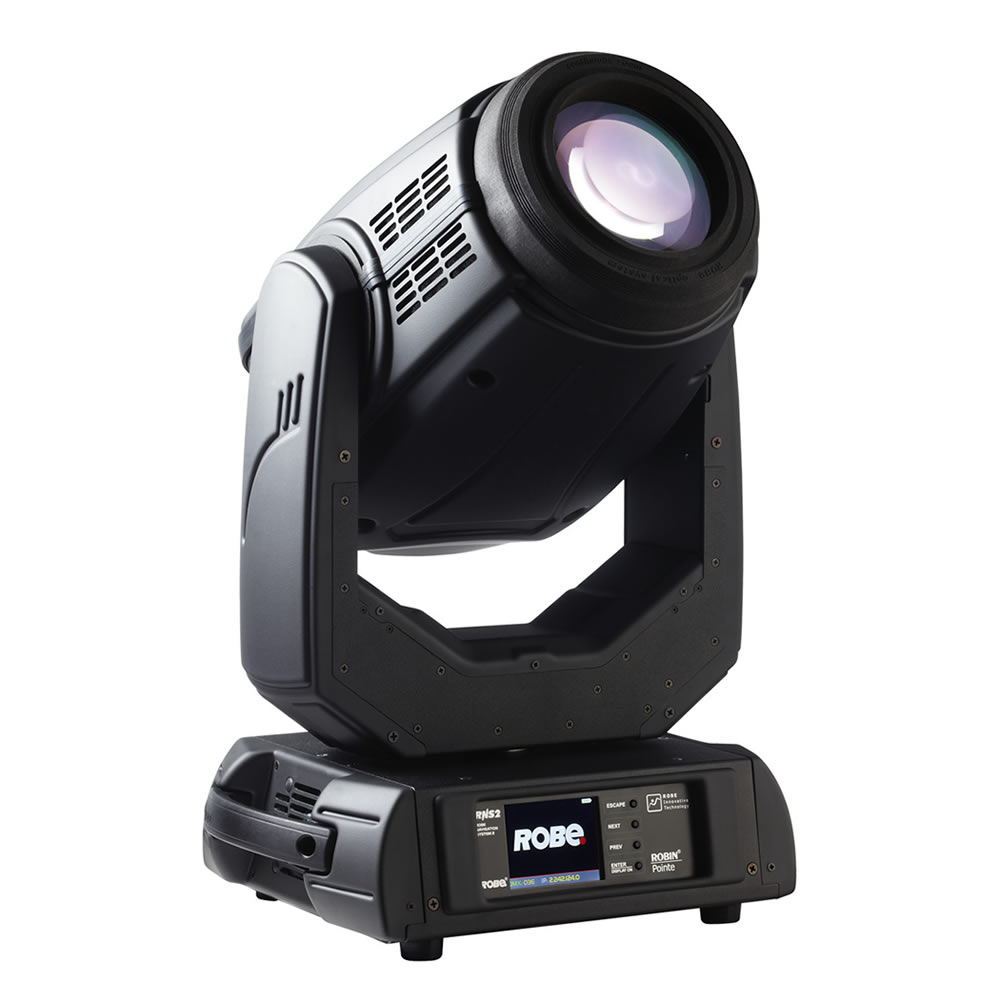

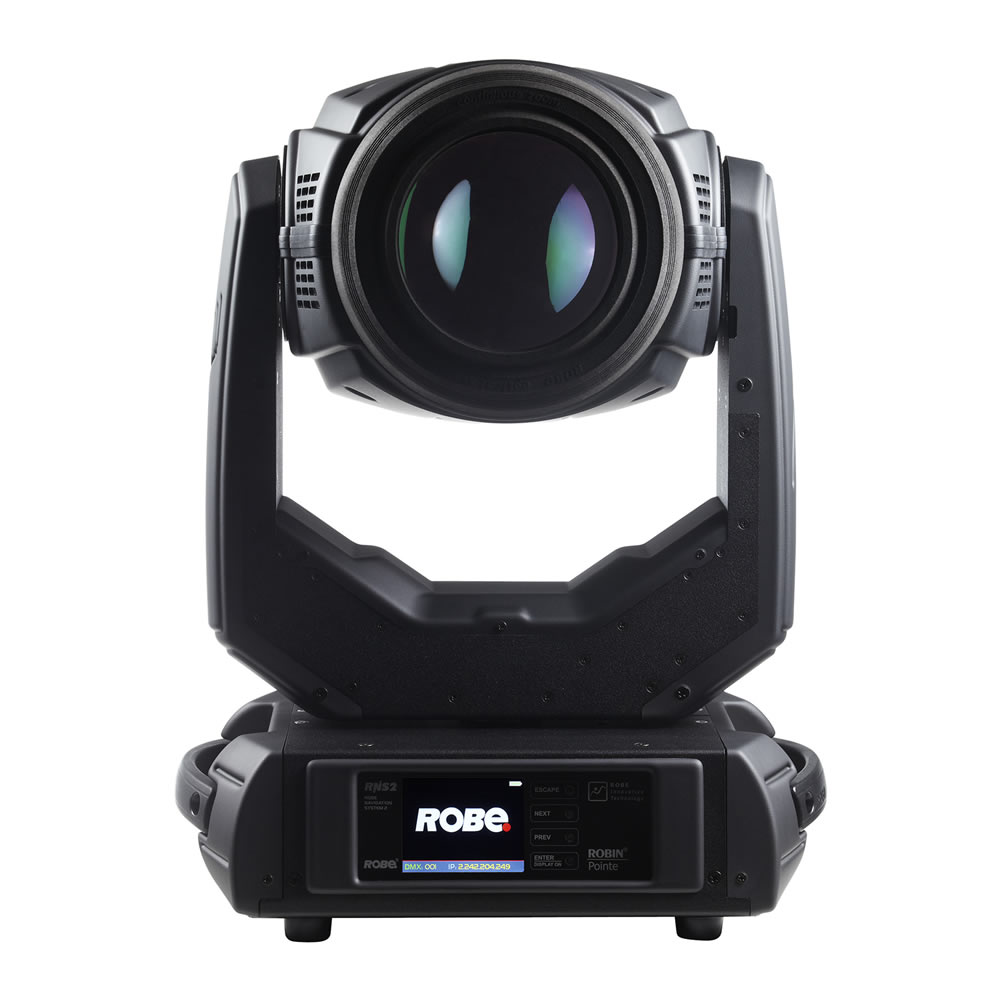

Robe Pointe (Chrome)
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
It’s very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease.
It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6 way linear or 8 way circular, prisms to create wide reaching effects across any set.Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash. The Pointe has an output far greater in size, quality and power than seems possible from it’s small, lightweight body – due to the efficient short arc 280 W discharge source and the Robe optical configuration. This fixture even travels efficiently in a case of 4 and will cover all your needs – Beam, Spot, Wash, FX - there is no point in using any other fixture.
Source
- Lamp: Discharge short arc lamp with integrated reflector
- Approved model: Osram Sirius HRI 280 W RO
- Lifetime: Standard mode (280 W) - 2.000 hrs, Eco mode (230 W) - 3.000 hrs
- CRI: 75
- CCT: 7000 K
- Ballast: Electronic
Optical system
- Robe’s proprietary optical design
- Zoom range:
- 2.5°-10° beam application
- 5° – 20° spot application
- Output lens diameter: 110 mm
- Fixture total lumen output:
- Beam mode: 9.870 lm
- Spot mode: 5.150 lm
- Illuminance:
- Beam mode: 82.400 lx @ 20 m
- Spot mode: 90.000 lx @ 5 m
Dynamic Effects and Features
- Colour wheel: 13 dichroic filters + white
- Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open
- Static Gobo wheel: 14 gobos + open
- Prism 1: 8-facet circular prism rotating in both directions at different speeds
- Prism 2: 6-facet linear prism rotating in both directions at different speeds
- Frost: Separate, variable
- Motorized zoom and focus
- Pre-programmed random strobe & pulse effects
- Dimmer: 0 - 100%
Control and programming
- Setting & Addressing: ROBE Navigation System 2 (RNS2)
- Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
- Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
- Wireless CRMX™ technology from Lumen Radio - on request
- DMX Protocol modes: 3
- Control channels: 24, 16, 30
- Stand-alone operation
- 3-editable programs, each up to 100 steps
- Pan/Tilt resolution: 8 or 16 bit
- Colour wheel positioning: 8 or 16bit
- Rotating gobo wheel positioning: 8 bit
- Static gobo wheel positioning: 8 bit
- Gobo indexing & rotation: 8 or 16bit
- Frost: 8 bit
- Zoom: 8 or 16bit
- Focus: 8 or 16bit
- Dimmer: 8 or 16bit
Movement
- Pan movement: 540°
- Tilt movement: 270°
- Controllable speed of Pan/Tilt movement
- Rotating gobos
- Glass gobos: 9 rotating gobos
- Outside diameter: 15.9 mm
- Image diameter: 12.5 mm
- Thickness: 1.1 mm
- High temperature borofloat or better glass
- "SLOT&LOCK" system for easy replacement of gobos
Static - beam gobos
- Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers
Thermal specification
- Maximum ambient temperature: 45°C (113°F)
- Maximum surface temperature: 90°C (194°F)
- Total heat dissipation: max. 1600 BTU/h (calculated)
Electrical specification and connections
- Power supply: Electronic auto-ranging
- Input voltage range: 100-240 V, 50/60 Hz
- Power consumption: 470 W at 230 V / 50 Hz
- Power in connector: Neutrik powerCON
- DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
- Ethernet port in/out: RJ45
Approvals
- CE Compliant
- cETLus Compliant
Mechanical specification
- Height: 575 mm (22.6") – head in vertical position
- Width: 365 mm (14.3")
- Depth: 250 mm (9.8")
- Weight: 15 kg (33 lbs)
- Ingress protection rating: IP20
Rigging
- Mounting points: 2 pairs of ¼-turn locks
- 2x Omega adaptors with ¼-turn quick locks
- Universal operating position
- Pan and Tilt transport locks
- Safety cable attachment point
