ROBE Patt 2013

ROBE Patt 2013


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

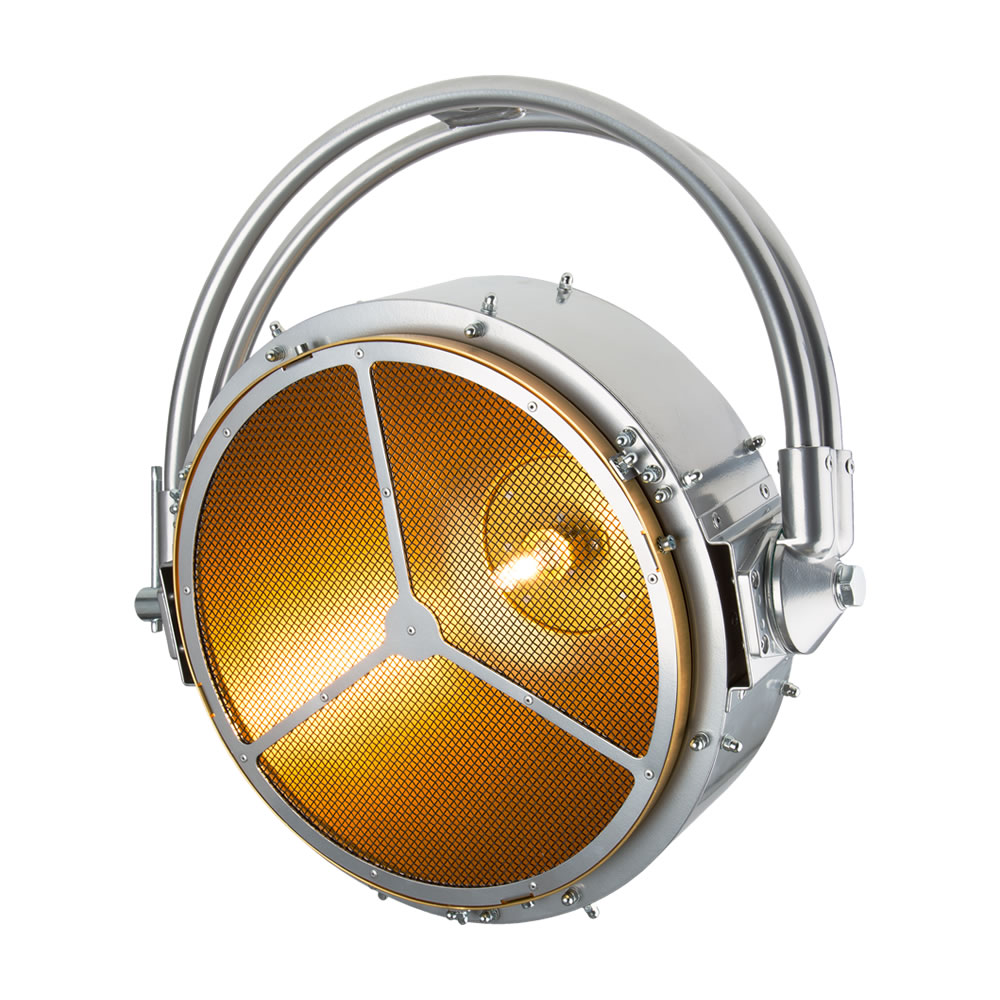

Patt 2013 is the first in a series of retro style lighting – designed specifically to further the current trend for tungsten eye-candy on stage and set - for bands, television, film and general prop lighting.

Lighting fixtures can be more than just a practical neccessity – the luminaires themselves can be a piece of art and create the mood. This fixture, conceived by lighting designer Tim Routledge is a tungsten softlight is formed around a sleek, spun aluminium body which maximises its curves to look as good on stage as the performers it illuminates. Whilst taking inspiration for its appearance from vintage broadcast lighting, the PATT 2013 incorporates the modern, readily available 750W HPL lamp

SketchUp 3D Warehouse Model

SOURCE

  • Lamp: High Performance Tungsten Lamp
  • Base: G 9,5 special (with heat sink)
  • Recommended lamp type: HPL 750/240/X 750W - 240V, HPL 750/120/X 750W - 120V
  • Lifetime: 1.500 hours
  • Colour Temperature: 3.050 K

OPTICAL SYSTEM

  • 550mm parabolic aluminium reflector with high reflectivity coating

THERMAL SPECIFICATION

  • Maximum ambient temperature: 45 °C (113 °F)
  • Maximum housing temperature: 160 °C (320 °F)

ELECTRICAL SPECIFICATION

  • Input voltage range: 120 V or 240 V, 50/60 Hz
  • Power consumption: 750 W
  • cETLus (pending)

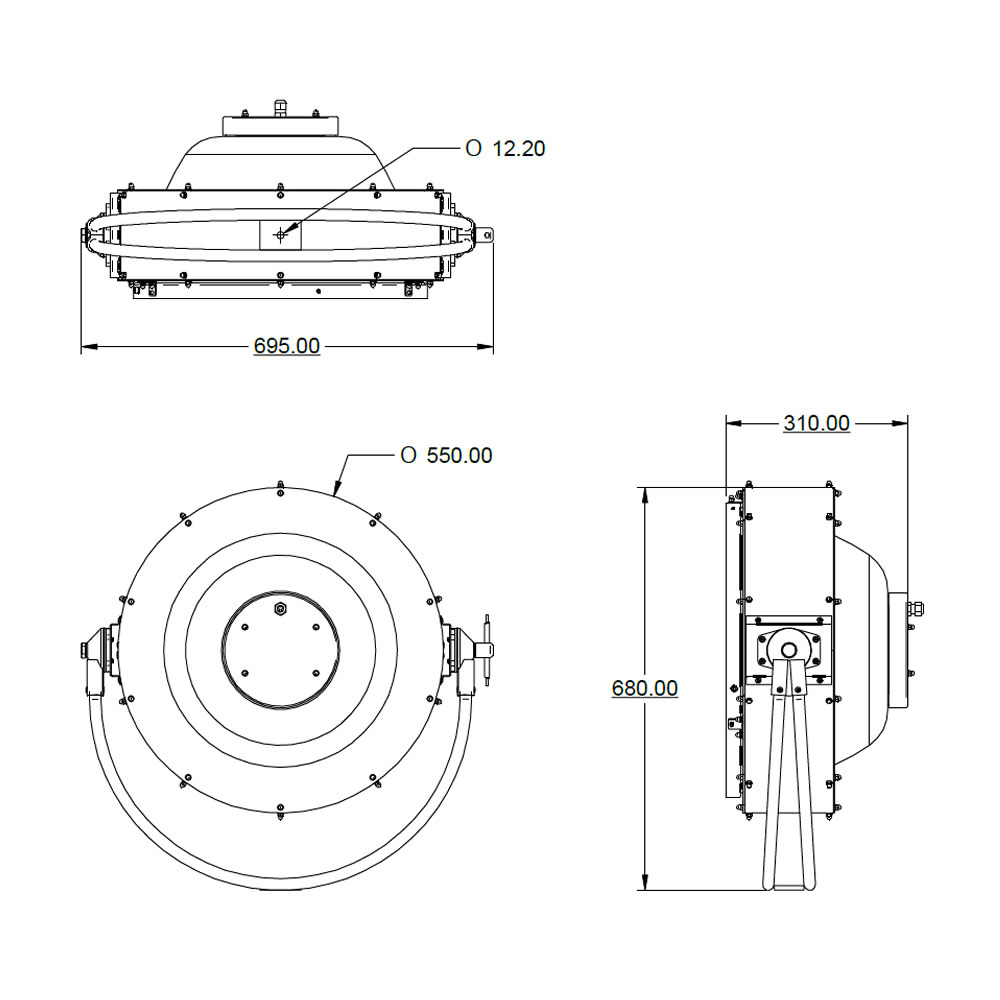

MECHANICAL SPECIFICATION

  • Height: 691 mm (27.2”) – head in vertical position
  • Width: 695 mm (27.4”)
  • Depth: 324 mm (12.8”)
  • Weight: Weight: 7.2 kg (15.9 lbs)

RIGGING

  • Mounting Points: M12 mounting with 28mm Spigot
  • Operational in any position
