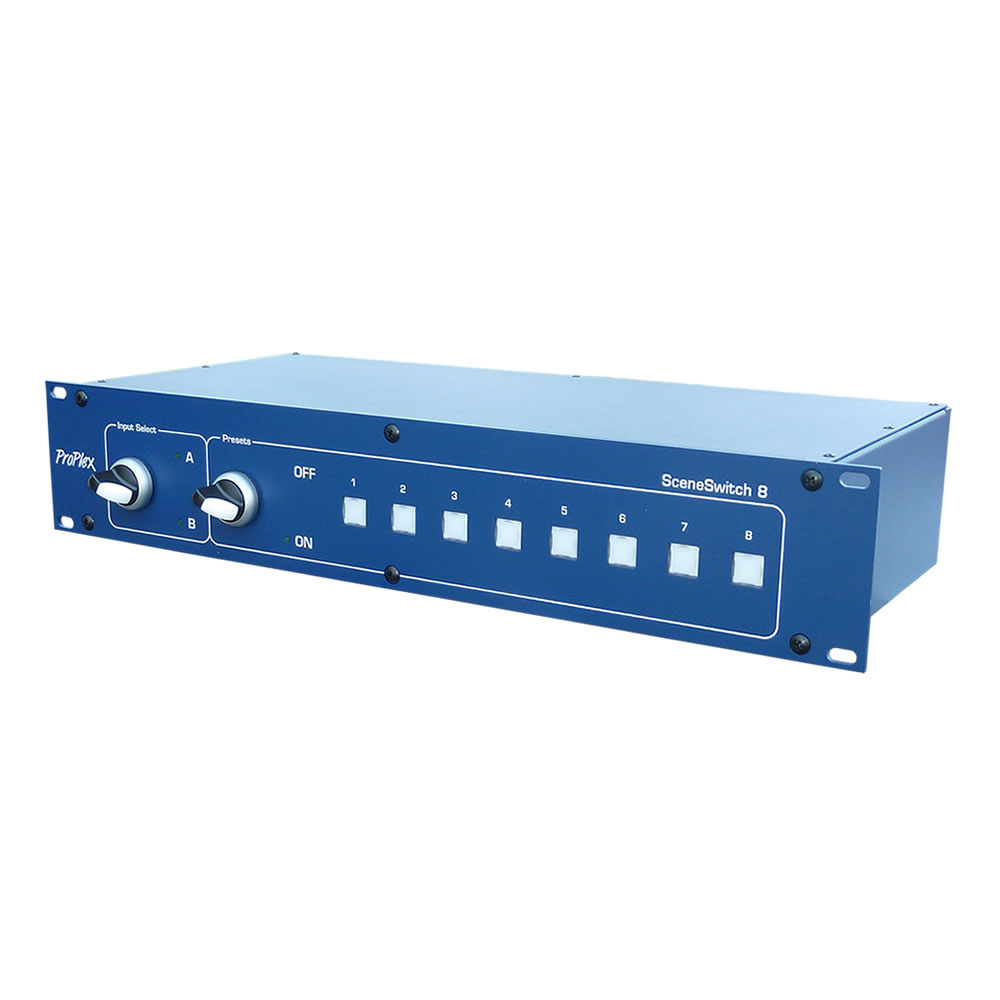

ProPlex SceneSwitch 8 DMX A/B Changeover
The ProPlex SceneSwitch 8 is an 8-channel DMX A/B switcher with built-in 8-scene playback.
Two Redundancy Options:
- Performs reliable, instantaneous switching between two 8-universe DMX sources.
- Unique scene playback feature captures up to 8 looks comprising all 8 universes, for instant playback. Play back up to 8 looks individually or in any desired combination.
DMX source and scene playback functions are selected with rugged rotary switches. Scene playbacks are selected with durable illuminated toggle buttons.
3.65 KG (19” 2U)
100-240V, 50-60Hz - 10W MAX.
OPERATING TEMPERATURE: -20 TO +40°C

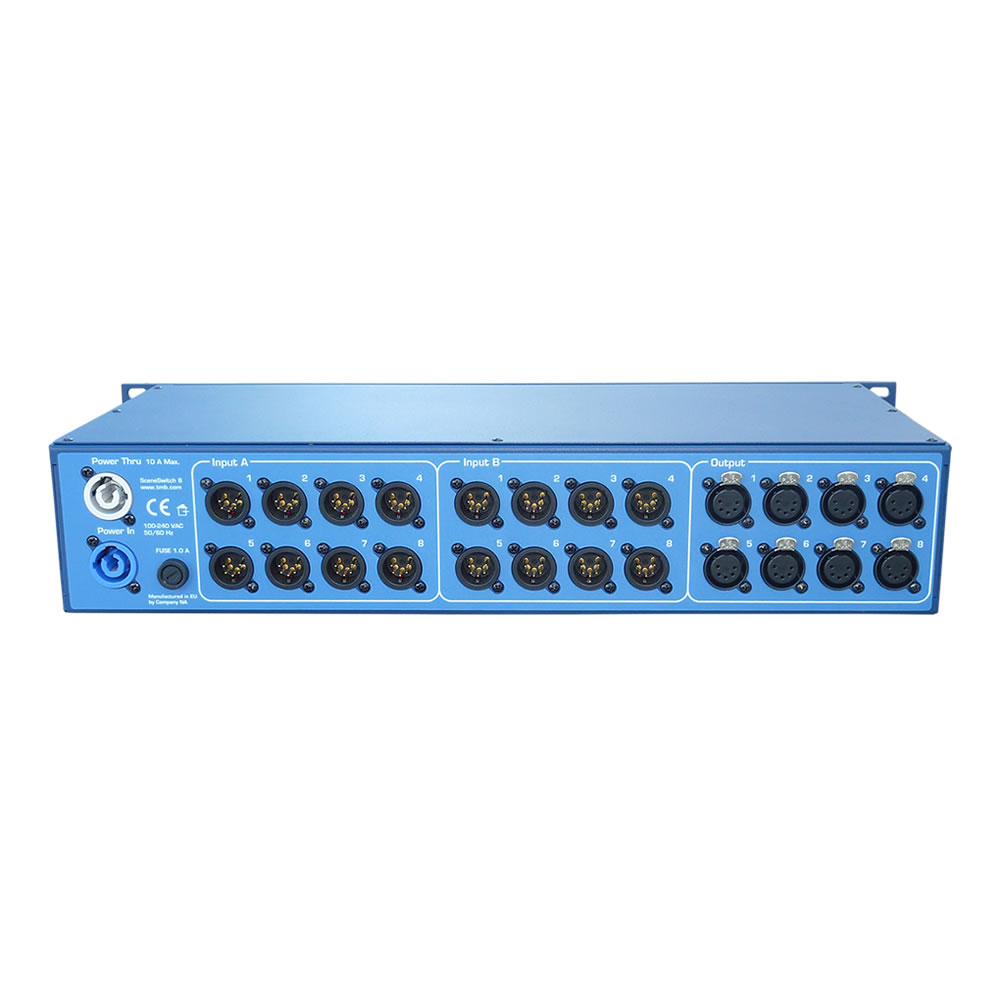

DMX INPUTS: 2 X 8, LOCKING 5-PIN XLR,
DMX OUTPUTS: 8, LOCKING 5-PIN XLR
MEMORY LOCATIONS: 8
