Prolights ArenaCOB 4

Prolights ArenaCOB 4


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

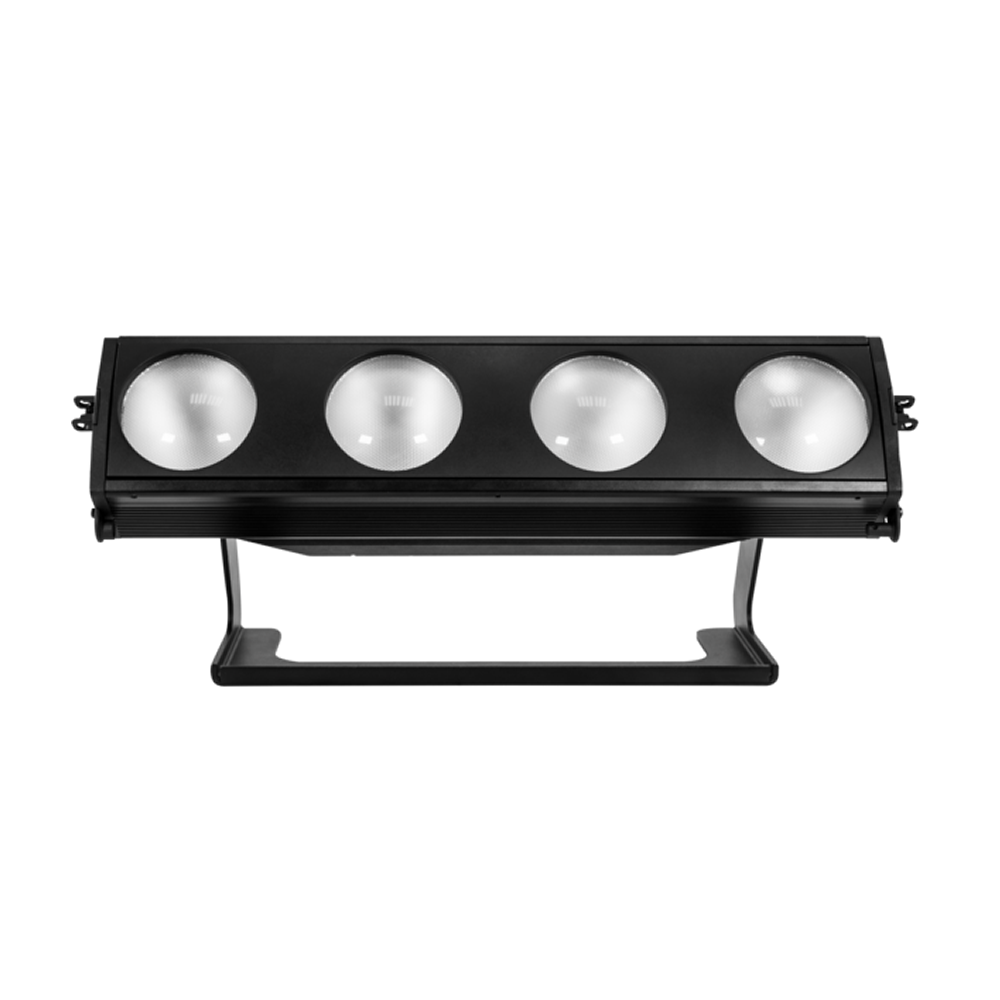

ARENACOB4 FC is a full color replacement for an “old school” 4 cell Blinder.
Each of the ARENACOB4 FC’s LED Pods deliver a consistent, powerful punch with individual control of each cell.

With an IP54 housing, magnetic lens options, individual control of each LED cell and cell spacing that matches a standard blinder the ARENACOB4 is not only powerful but also unbelievably flexible.

Hanging options include a standard bracket suitable for floor use, 28mm spigot or trigger clamp.
An
8 Cell blinder bracket is also available for mounting 2 fixtures, please specify when ordering

    Features:

    • 4x75W RGBW COB pods
    • Magnetic lens options 40°, 24°(inc)
    • Same cell spacing and lens diameter as a traditional blinder
    • IP65 for temporary outdoor use with noiseless passive cooling
    • Inbuilt effects generator

    SketchUp 3D Warehouse Model

    LIGHT SOURCE

    • Source: 4x75w RGBW LEDs
    • Luminous Flux: 6230lm
    • Lux: (24°) 3167lux @3m Full
    • Source Life Expectancy: >50.000 h

    OPTICS

    • Beam Angle: (inc) 24° - (opt) 40°
    • Field Angle: 42°
    • Pixel pitch: 150mm
    • Lens Diameter: 100mm
    • Lens Type: Dichroic parabolic reflector in combination with HD fresnel lens
    • Additional Optics: 40°(opt), 32° without magnetic lens
    • Other: Magnetic replacement of front lens

    COLOR SYSTEM

    • Color Mixing: RGBW/FC
    • CTC: CTC control through independent DMX channel
    • White Presets: 2000~8000K
    • Color Wheel: Virtual color wheel with presets

    DYNAMIC EFFECTS

    • Pixel Patterns: Preprogrammed dynamic and static patterns
    • FX Generator: Adjustable foreground/background color, index, speed, direction
    • Static Color Mode: Selection of static color
    • Manual Color Mode: Manual adjustment of color
    • Auto Mode: Built-in programs with execution speed adjustment
    • Special Features: Halo DWE dimming and amber-shift simulation

    BODY

    • Hardware On-board: On board mechanics for modular assembly of multiple panels
    • Body: Sturdy die-cast aluminium body conceived for long-time durability
    • Body Color: Black

    CONTROL

    • Protocols: DMX512, RDM
    • Dmx Channels: HALO 1/4ch - STD 4/6/15ch - EXT16/21/27ch
    • Pixel Control: Pixel2Pixel control
    • RDM: RDM ready for fixture remote monitor and settings
    • Display: Black OLED touch display
    • Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave: for synchronized operation of more units linked in a chain

    ELECTRONICS

    • Dimmer: Linear 0~100% electronic dimmer
    • Dimmer Curves: 4 Different dimming curves available
    • Strobe/Shutter: 1-28 Hz, electronic
    • Battery Backup: Battery backup for user operation without connecting to the main power
    • Operating Temperature: -20/45°
    • Flicker: Flicker free operation

    ELECTRICAL

    • Power Supply: 100-240V – 50/60Hz
    • Power Consumption (at 230V): 229W
    • Power Consumption (at 120V): 230W
    • Output (at 230V): 15 units on a single power line
    • Output (at 120V): 7 units on a single power line

    PHYSICAL

    • Signal Connection: 5p IP in/out
    • Power Connection: Seetronic Powerkon True IP65 in/out
    • IP: 54 Protective vent to prevent condensation, dust, compensate pressure
    • Cooling: Natural cooling of the peculiar chassis and to absence of fans
    • Rigging: Standard hanging bracket suitable for floor use, 28mm spigot or trigger clamp. 8 Cell blinder bracket also available for mounting 2 fixtures.

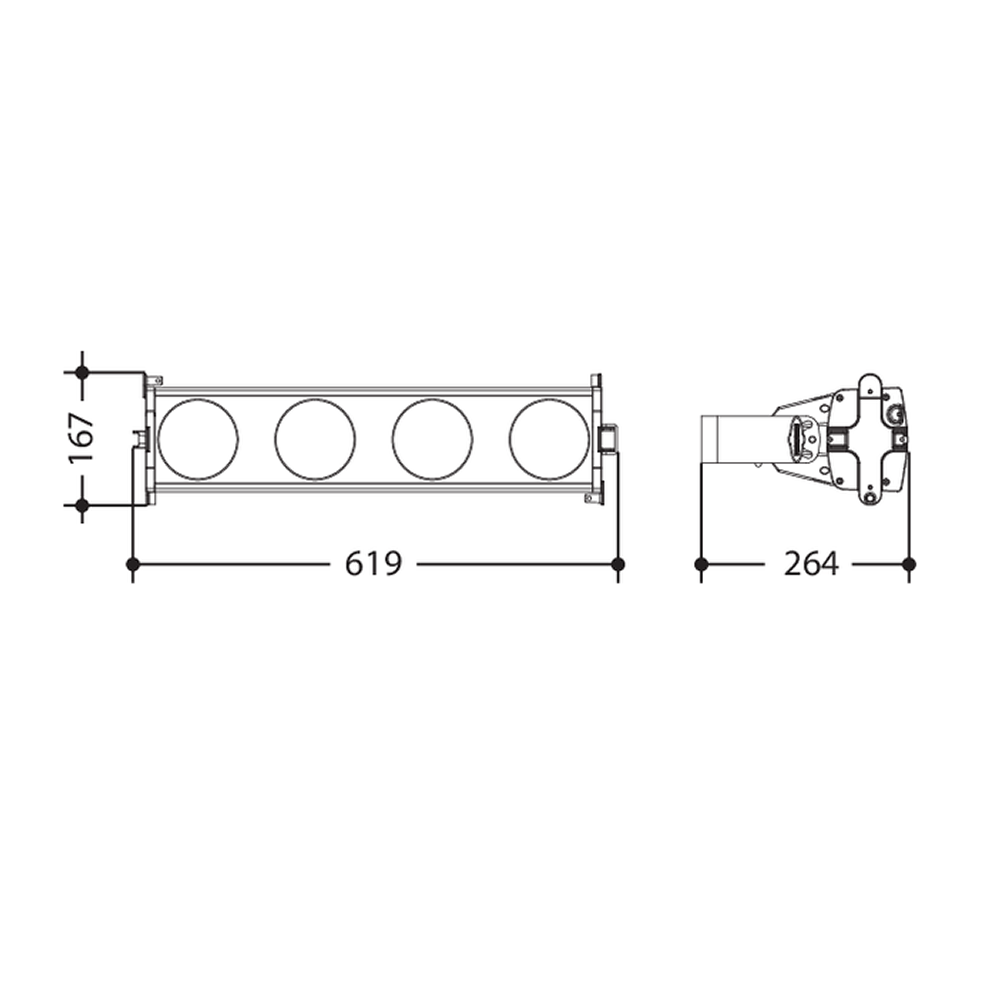

    • Dimensions (WxHxD): 619x167x264mm
    • Weight: 7,9Kg
