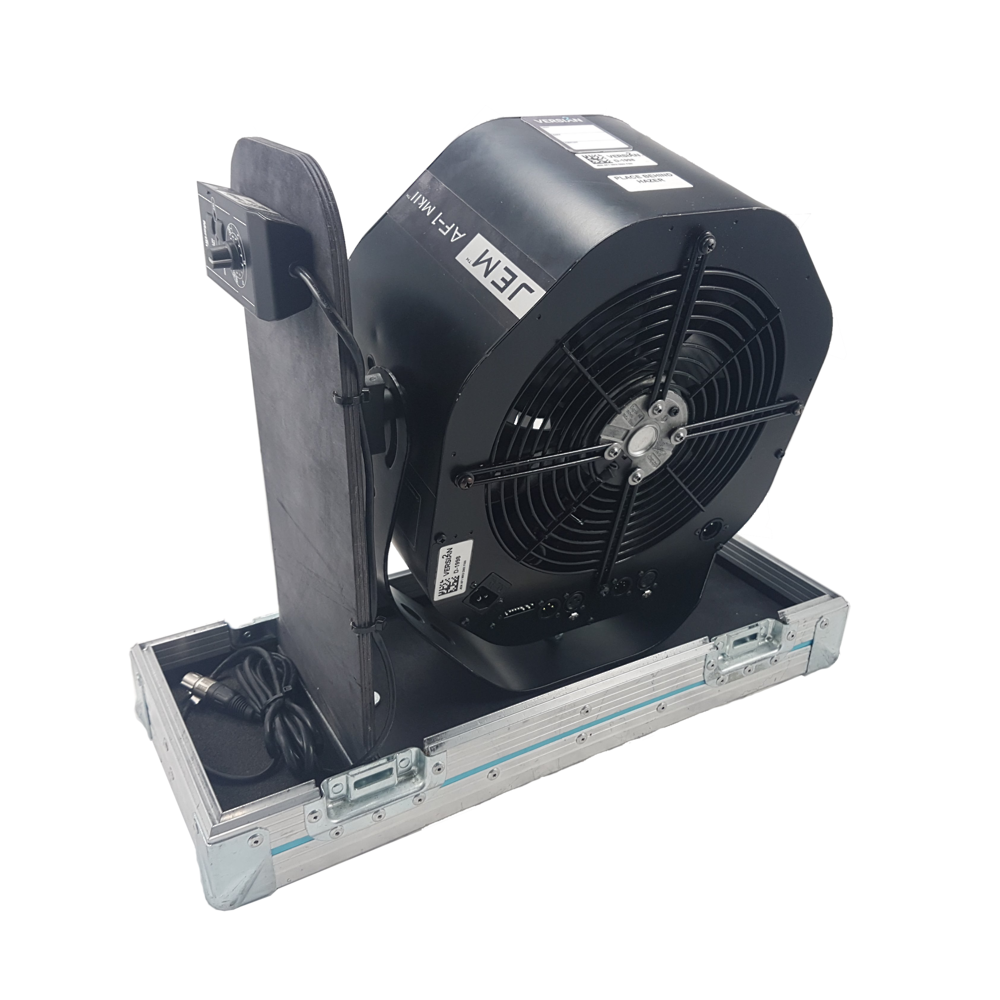

Martin JEM AF1 MKII DMX Fan

Martin JEM AF1 MKII DMX Fan


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

Improvements in digital electronics have made Martin’s industry-standard compact fan more responsive and even more versatile. Advances in control, rotation, speed range and increment adjustment have raised the bar for quality, performance and durability. Fully DMX controllable or using a hand-held remote, it is the ideal fan for a large variety of indoor or outdoor applications from touring and stage to theme parks, cruise ships and much more.

Feature overview

  • Increased speed range
  • Instant response on speed control
  • Lower minimum speed
  • New DMX adaptor with increased resolution
  • Compact remote
  • Reduced motor noise at low speeds
  • Floor standing or hanging


Physical

Width: 380 mm (15.0 in.)
Height: 410.5 mm (16.2 in.)
Depth: 180 mm (7.1 in.)
Weight: 8.5 kg (18.8 lbs.)

Performance

Maximum airflow: 1815m3 per hour
Fan speed: 200-2500 rpm approx.

Control and Programming

Control options: Remote control (supplied), DMX, local test switch
Remote control features: Instant or timer-controlled output, 0-100% adjustable output level
Delay 2/255 seconds, run time 2-255 seconds
DMX channels: 1
Protocol: USITT DMX512-A

Construction

Housing: Steel

Installation

Orientation: Any

Connections

Remote control: 3-pin locking XLR
DMX data: 3-pin and 5-pin locking XLR
Power connection: 3-pin IEC

Electrical

AC power (EU models): 220-240 V nominal, 50 Hz
Main fuse (220-240 V power): 3.15 AT (slow blow)

Typical Power and Current

EU model 230 V, 50 Hz: 120 W, 0.53 A
