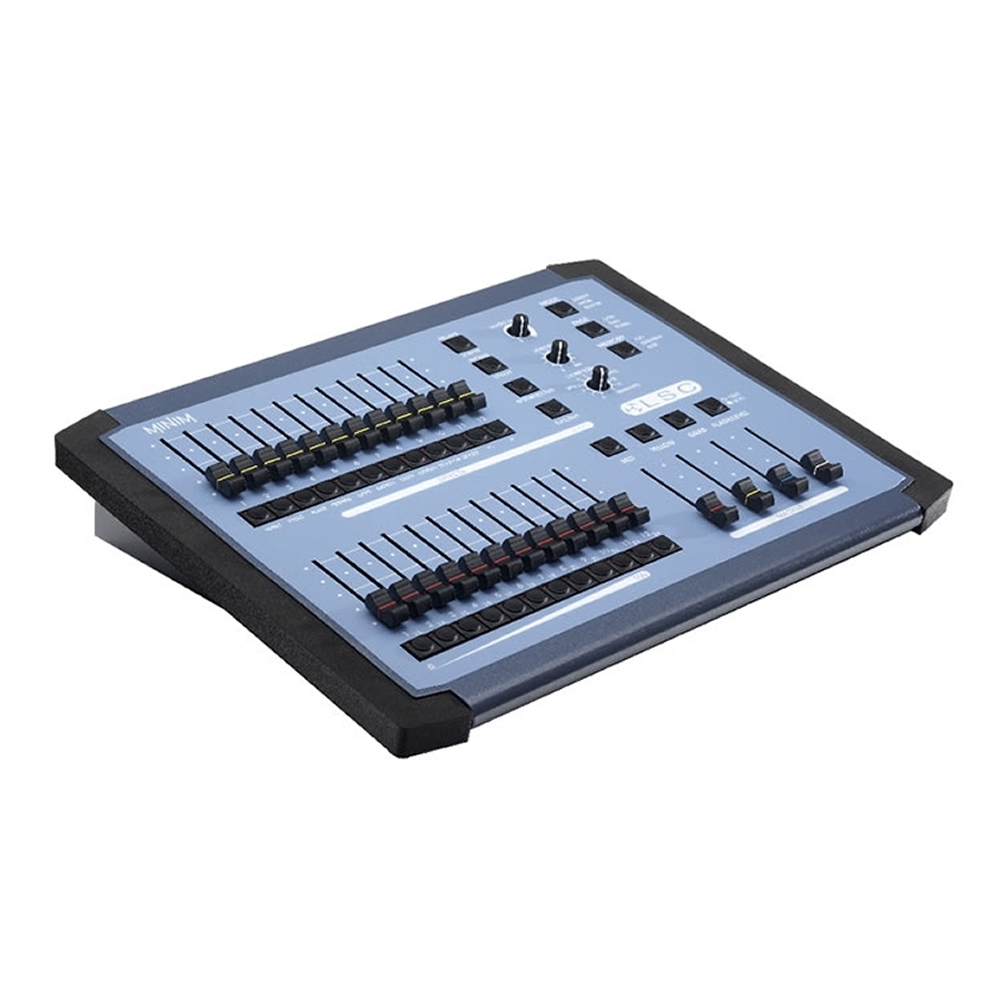

LSC Minim 12/24 Console

LSC Minim 12/24 Console


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

The MINIM has been specifically designed to fill a void for the entry level user both in features and price. Attractively styled and utilizing the familiar programming and playback system popular on all LSC desks, the MINIM delivers a very easy to use platform with quick access buttons to all major functions – no menu driven systems

  • Two banks of faders labeled 1-12 and 13-24, in a typical two preset configuration for setting up general lighting looks and manual operation.
  • Three preset masters labeled Red, Yellow and Grab.
  • Flash/Assign pushbuttons with integral indicator LED for each of the 24 preset faders and each of the 3 masters.
  • Add/Solo button with Flash level master.
  • A page button with three LED indicators to show current page.
  • Three rotary knobs labeled Audio level, Speed and Crossfade.
  • Pushbuttons for selecting Memory Run, Memory Preview, Memory Edit, Function Select, Back, Forward, Stop Step, Bounce, Random, External trigger,
  • Delete step, Add step, Record Scene, Record Chase, Console Operation Mode and Playback Page.
  • A Bass-Step-Chase facility for the triggered synchronization of Chase steps with the regular repetitive beat of an audio source.
  • An external trigger input for the remote stepping of chase sequences.
  • Integrated power supply factory selectable for 110V or 240V operation.
  • Slim line construction, with heavy duty compressed rubber sides, strong metal chassis with durable polycarbonate rear-screened outer panel.

Output Channels

24

Fader Channels Normal Mode

12

Fader Channels Wide Mode

24

Pages

3

Playbacks

13

Scenes

37

Chases

37

Steps/chase

24

Chase speed

0-999 BPM

Page Freeze

Yes

Fade times

0-30 seconds

Grab master

Yes

Base step

Yes

External chase step trigger input (1/4" Phono socket)

Yes

"In field" Software upgrade

Yes

Product Dimensions:
Height x Width x Depth

Shipping Dimensions :
Height x Width x Depth

90mm x 440mm x 352mm
3.54" x 17.3" x 13.85"

210mm x 580mm x 500mm
8.3" x 22.9" x 19.7"

Product Weight:
Shipping Weight (Australia):
Shipping Weight (except Australia):

6.0kg / 13.2lb
16kg
13kg / 29lb
