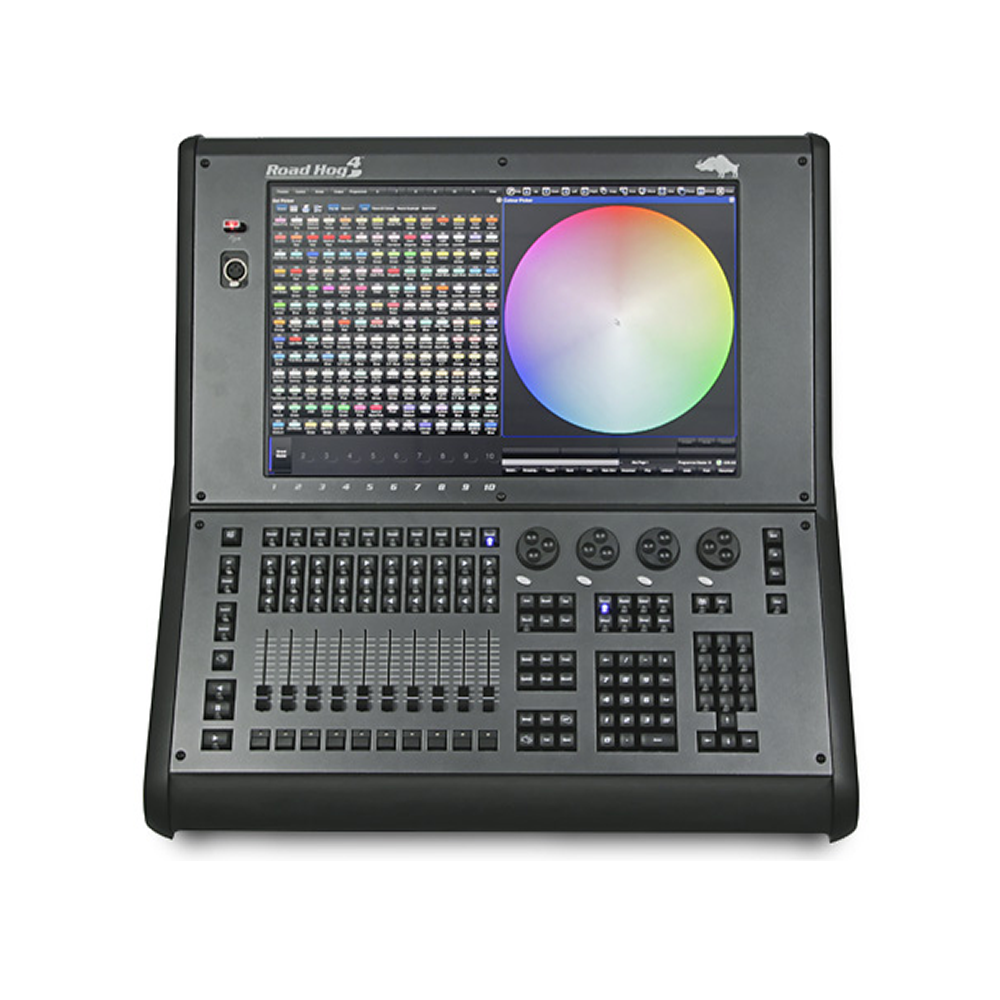

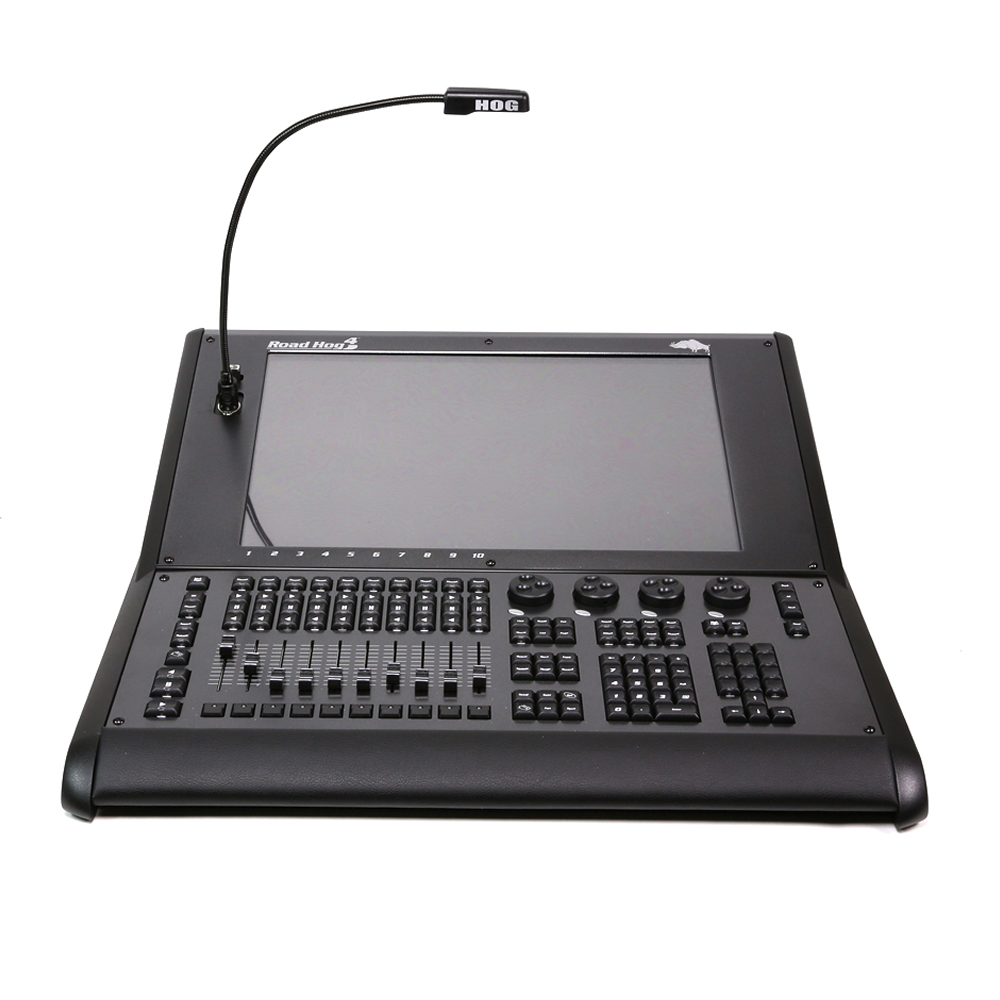

High End Hog 4 Road Hog Console

High End Hog 4 Road Hog Console


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

With it's market leading single 22 inch multi touch display, the Road Hog 4 is unparalleled in the industry. Allowing full expansion in a compact package with networking and Art-Net outputs.

Continuing on from the award-winning Wholehog III ® platform, the Hog 4 line of consoles, developed by High End Systems, provides state of the art hardware coupled with a tried and tested backbone. Building on our user friendly and intuitive GUI based software, the Hog 4 line is built for the future. 10 point multi touch displays, motorized faders*, solid state hard drives, User Kind keys and extremely fast load times allow for a superior user experience. The Hog 4 systems are fully scalable, fully network-compatible, and offer full network failover.

Compatibility is key and across the Hog 4 range you are able to load shows created in Hog 3 software. You are also able to connect Hog 3 wings to a Hog 4 platform. Doing this ensures you get the most out of your current fleet while allowing you to invest in the latest platforms with total peace of mind.

Features

  • Robust Hog 4 Operating Software
  • Unlimited number of simultaneous crossfades
  • One internal 22-inch wide screen touchscreens with 10 point multi touch
  • One external monitor or touchscreen supported*
  • 4 encoders for an expanded wheelset
  • Twelve User Keys
  • Ten playback faders
  • Four fixed universes of DMX 512 and up to 8 universes of DMX 512 over ArtNet or sACN
  • Hog-Net Ethernet connector
  • Fixture-Net Ethernet connector
  • Internal Solid State Hard disk drive
  • Five USB ports for Wholehog wings and external touchscreens
  • Desklights, feedback LEDs, and integrated worklight all dimmable
  • Auto-ranging mains input (90-250VAC)
  • Dust cover included

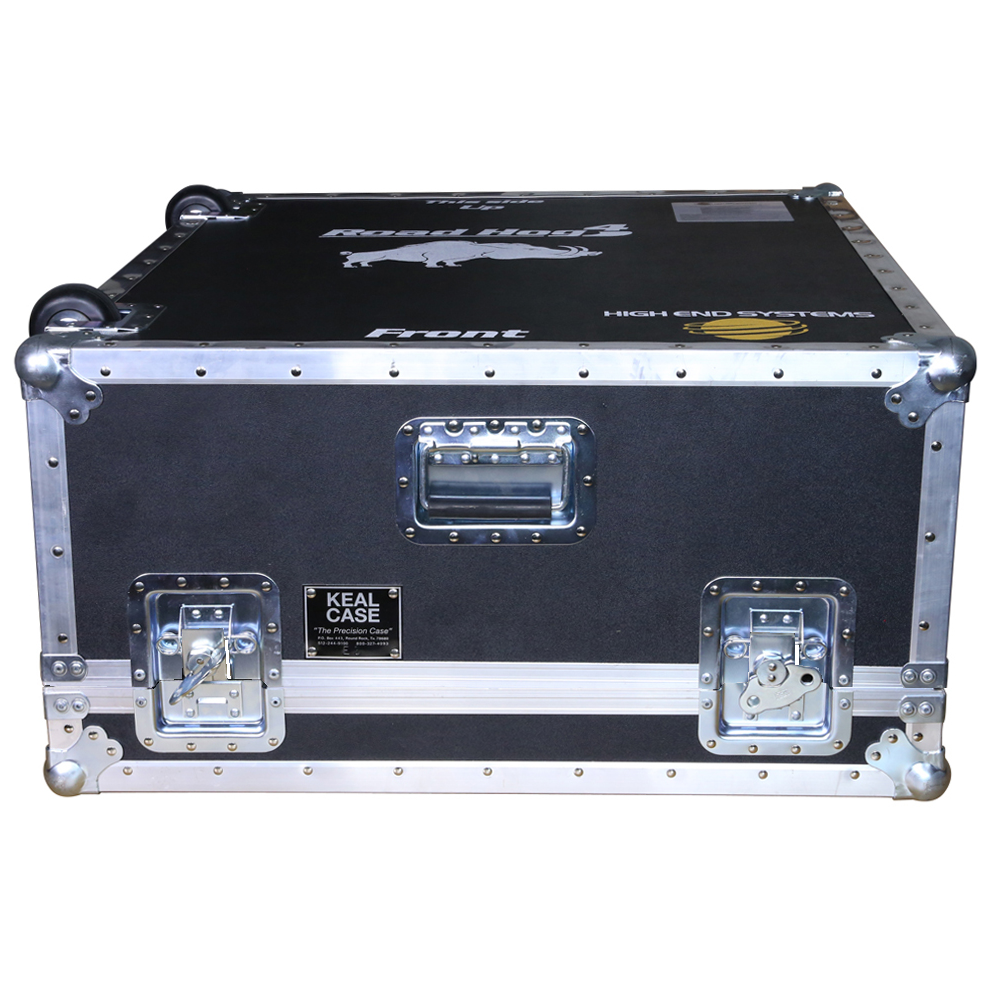

  • Custom Road Case

Connectivity

  • Unlimited number of DMX channels via Ethernet DPs
  • Unlimited number of Art-Net and E1.3.1 (sACN) universes via Ethernet DPs
  • MIDI Input and Output, MIDI Show Control and MIDI Time Code via optional external widget
  • Multiple LTC input via via optional external widgets
  • Connectivity with many visualizers via Ethernet
  • Wired and wireless networking ability with multiple Wholehog console systems
  • Remote Focus capabilities when networked with a tablet PC running Hog 4PC software
  • Supports USB Playback and Master Wings

Dimensions

  • 26.7” (678.18mm) wide by 27.61” (701.32mm) deep by 8.10” (205.8mm) high
  • Weight: 38.6 lbs (17.5 kg)
