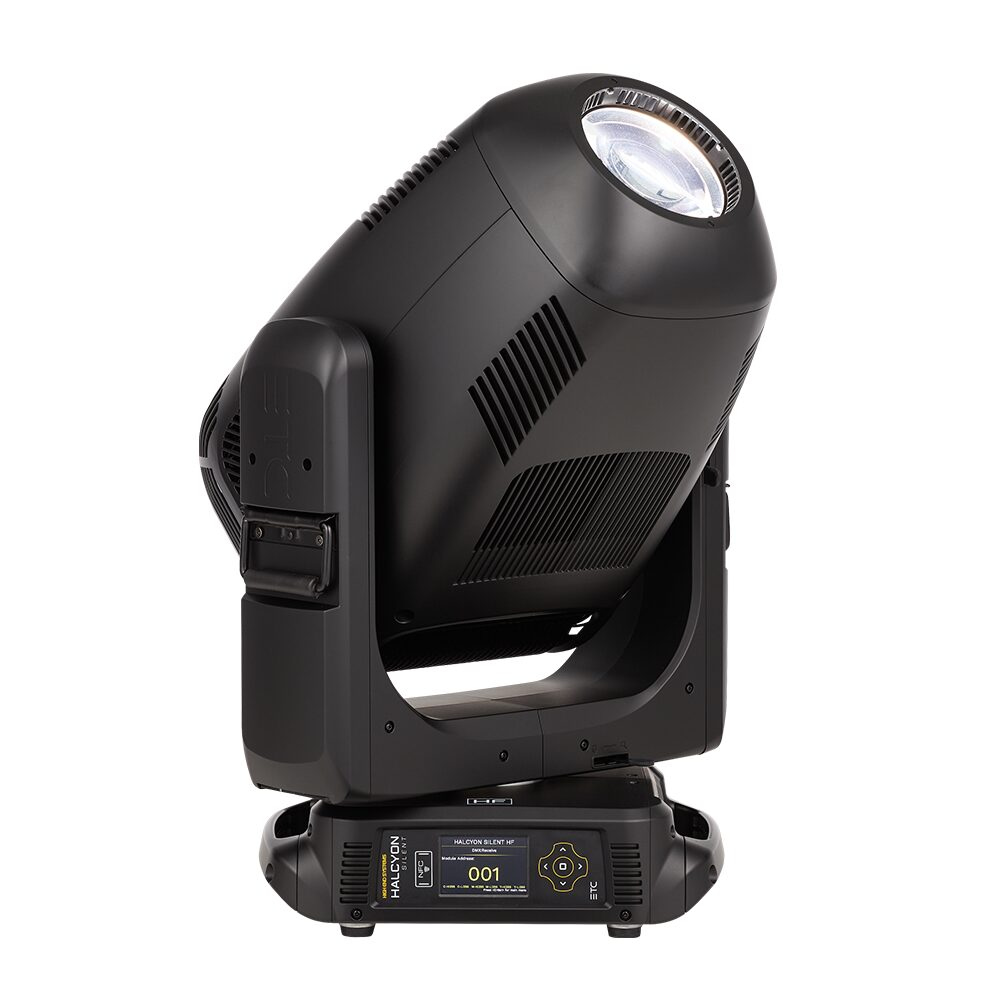

High End Systems Halcyon Silent, ETC raises the bar for what users can expect from fanless automated luminaires. For acoustically sensitive venues like theatres or concert halls, Halcyon Silent provides fanless operation without compromising output or features. The convection-cooled fixture packs 18,400 lumens of output in a 41 kg frame. Halcyon Silent’s patented ADM system features twelve color flags to increase color brightness and saturation while decreasing color shift. Design possibilities are endless with full curtain framing, a host of gobos, a Trifusion system for even frost distribution, and a continuously rotating animation wheel.
Applications
• Concert Halls
• Opera Houses
• Theatres
• Lecture Halls
• TV Studios
Product Features
• Bright white LED engine
• 580 W High Fidelity engine
• Fixture output exceeding 18,400 lumens
• High quality 13-lens optic system
• Extremely powerful 5.5°–60° zoom
• Advanced Dichroic Mixing System utilizing 12 color flags with
simplified combined color modes
• Six-position plus open color wheel
• Full-curtain framing system for total control of beam shaping
• 16-blade iris for extremely tight beam effects
• Trifusion frost system with linear insertion from light to heavy
and everything in between
• Two, 7-position plus open Rotating Gobo Wheels
• Dual prisms for with individual insertion for beam and
projection effects
• Rotating Animation Wheel with linear positioning and
angular control
• Patented Whisper Home technology for quiet pan and tilt
calibration/homing at boot with minimal movement
• Optional RigPOV camera kit provides livestream NDI feed
from the fixture’s perspective
Source
Engine: Custom High Fidelity White LED Engine
LED Details: 580 W
Max Integrating Sphere Lumens: 18,400
LPW: 37
LED Life: 50,000 hours
Native CCT: 5800 K
CRI: 93
TLCI: 93
Colour
Colour Mixing: Patented 12-flag Advanced Dichroic Mixing System with combined CMY and individual mode
Colour Temperature: Variable from 2200 K to 10000 K via CCT channel
Colour Wheel: Six (6) dichroic colors plus open
Optical
Beam Angle Range: 5.5°–60°
Gate Size: 26 mm
Aperture Size: 144 mm

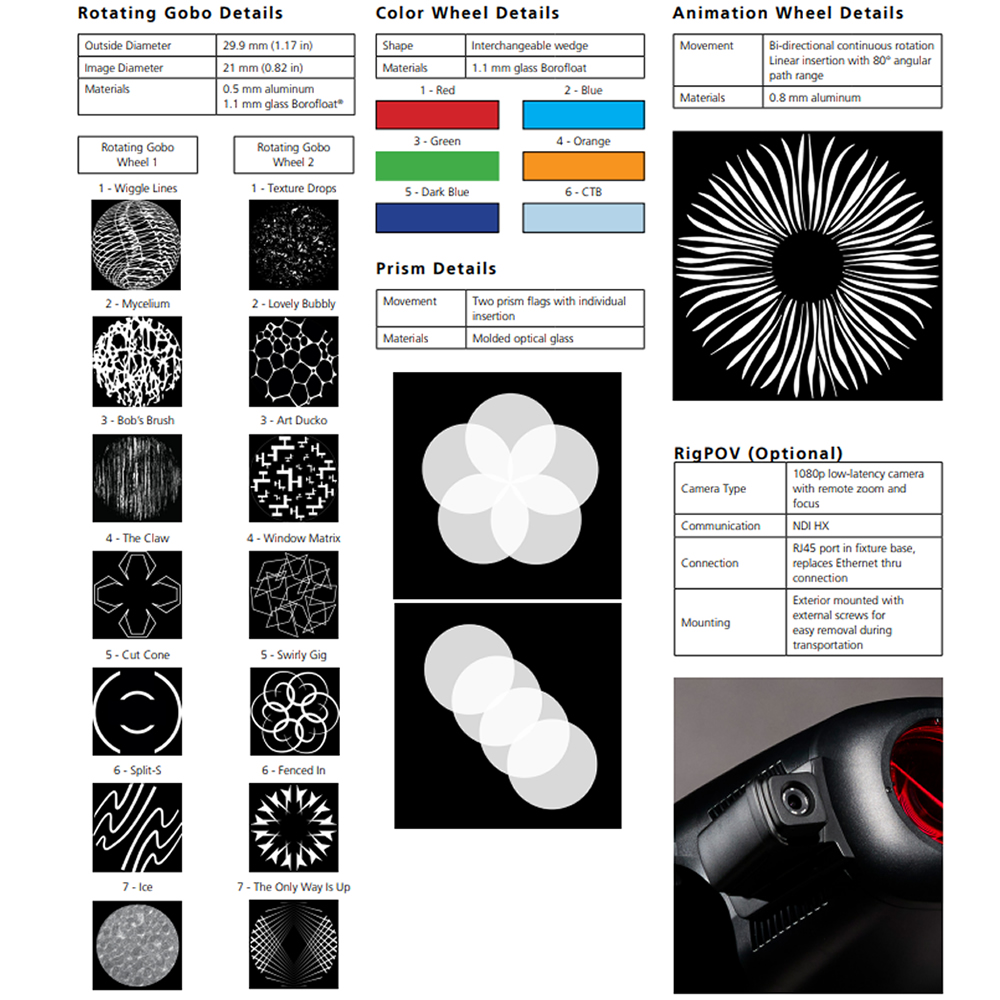

Pattern Projection: Two rotating and indexable wheels with seven (7) interchangeable patterns plus open on each
Animation: - Bi-directional rotating animation wheel with linear insertion, and variable angle - LED Animation
Prism: Five-facet star and four-facet linear rotating prism with individual insertion
Diffusion: Light, Medium, and Heavy frost seamlessly controlled with Trifusion control
Iris: 16-blade iris
Framing: Four-plane, full-curtain framing system with180° module rotation
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control
Input Method: DMX (5-pin) or Ethernet
Protocols: DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru: Passive Ethernet in and thru with and without power
Data Conversion: Patented data conversion system for Ethernet to DMX
Modes (Footprint): Standard or Combined (61 channels)
RDM Functions: Yes
UI Type: Full-color graphical UI with touch screen and 5-button navigational control NFC Configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical
Voltage Range: 100–240 V 50–60 Hz
Input Method: powerCON TRUE1 TOP
Wattage: 931 W
Current (Max): 9.35 A @ 100 V 3.69 A @ 240 V
Inrush (First Half Cycle): 120 V: 88 A 230 V: 94 A
Fixtures per Circuit: 1 fixture (R20 module or similar) Note: TRUE1 TOP connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal
Ambient Operating Temp: -10° to 35°C (14° to 95°F)
Fan Mode: No fans, convection cooled
Physical
Pan and Tilt Range: 540° pan, 260° tilt
Max Pan/Tilt Speed: 360° in 2.15 s/180° in 1.74 s
Encoders: Whisper Home, absolute encoders
Materials: Steel and aluminum frame with molded plastic
covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Weight: 41.3 kg
Regulatory & Compliance
Approved regulatory standards: cETLus. Listed Listed to UL 1573Certified to CSA STD. C22.2 No: 166 CE Compliant. UKCA Compliant
Complies to the ROHS directive: Yes
Safety
Safety: Minimum distance to illuminated surface = 2.0 m (6.6 ft)
Minimum distance from fixture head to combustible materials = 0.1 m (4.0 in)
