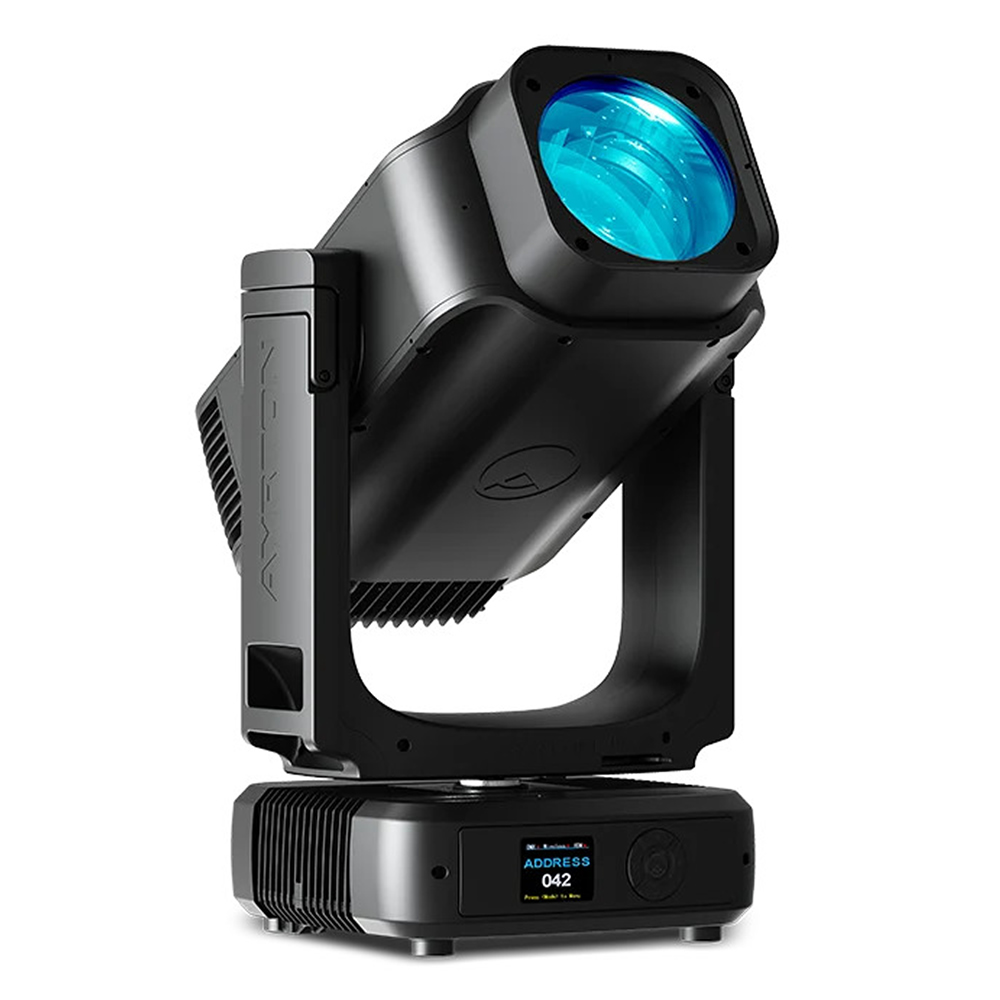

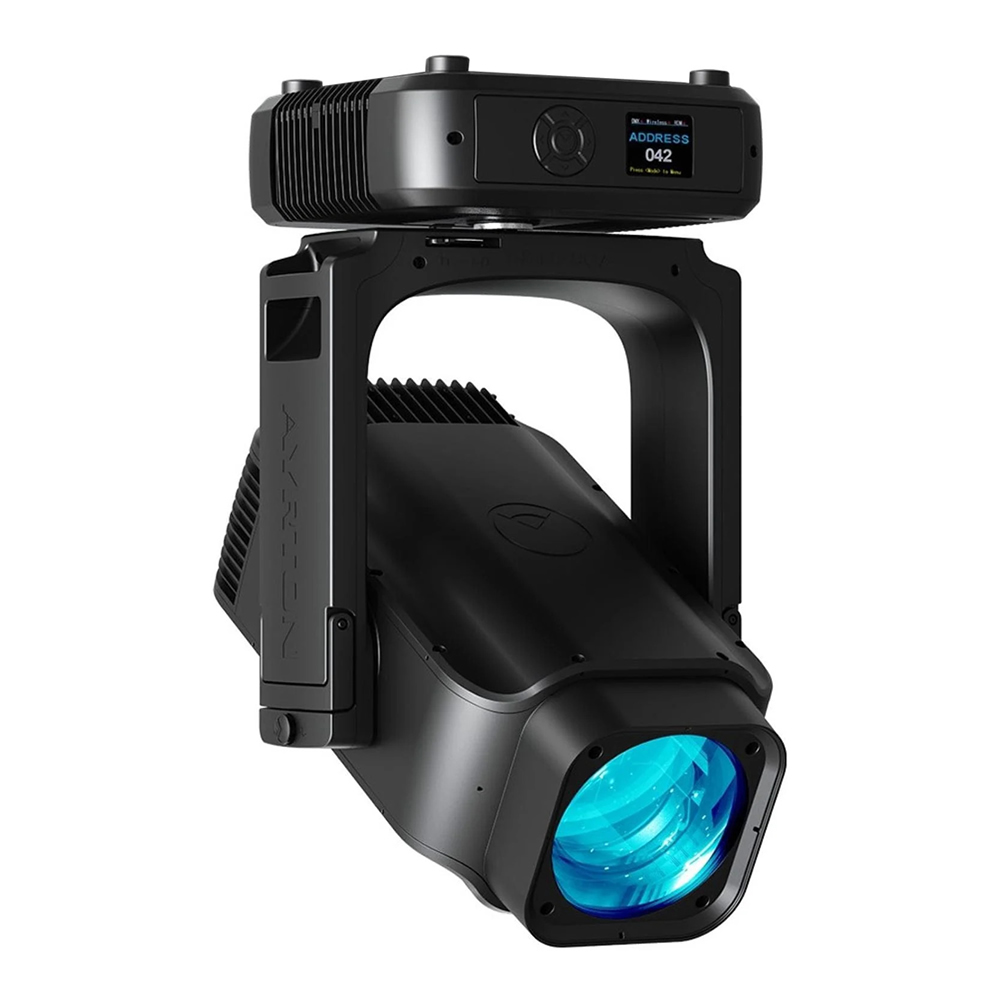

Rivale Profile is the first ultra-equipped luminaire in Ayrton’s brand new “ULTIMATE“ series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.

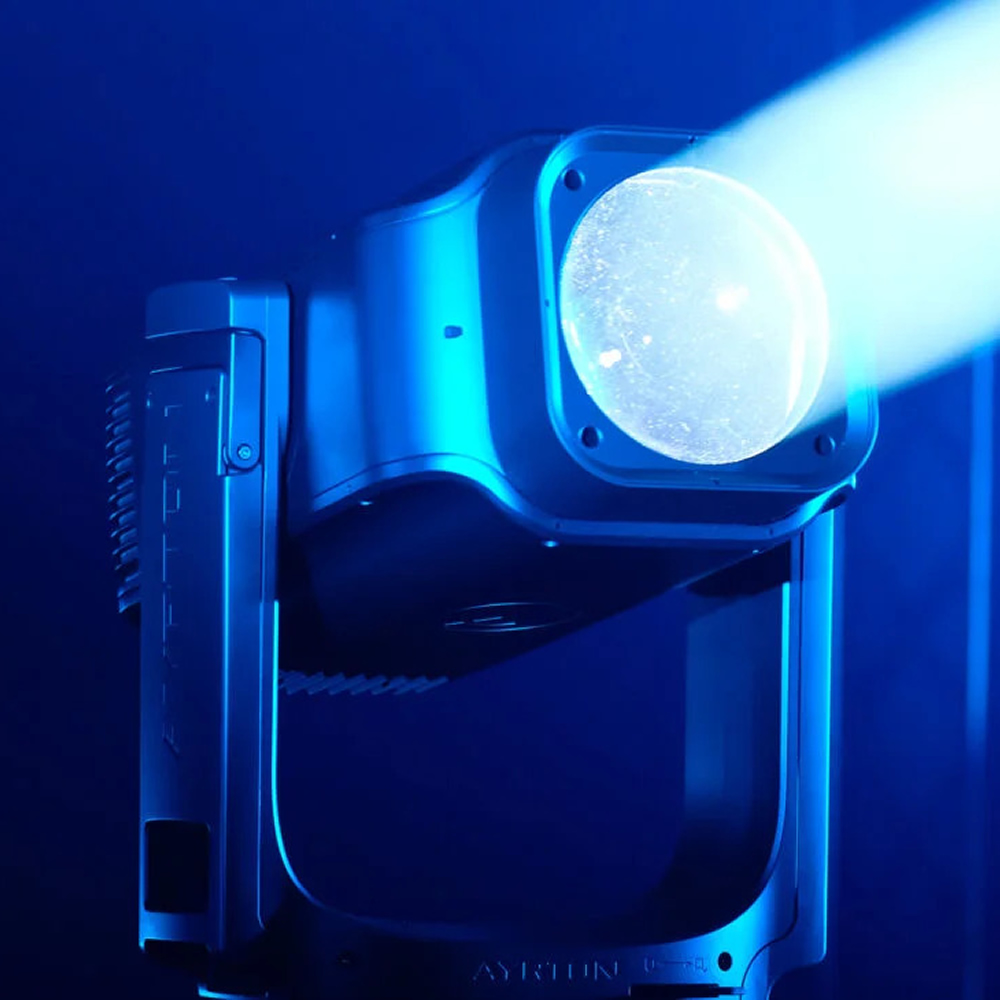

Developed for mixed use indoors and outdoors, and in all conditions, Rivale Profile, with its unique visual signature, is unparalleled on the market. Weight determines performance, and Rivale Profile weighs only 30.8 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, Rivale Profile has been provided with continuous rotation of the pan and tilt movement. Rivale Profile is fitted with a brand new high-efficiency 430-watt sealed mono-block LED module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4° to 52°. Equipped with a 160 mm frontal lens, Rivale Profile can produce an ultra-intensive beam of 4°, close to that of Ayrton’s famous “LT“ versions.
Rivale Profile has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.
An extended progressive CTO lets you fine tune the colour temperature from 2900 K to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, Rivale Profile allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90°. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of Rivale Profile includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. Rivale Profile, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by Ayrton to date. A truly innovative luminaire with no equivalent on the market.
OPTICS
13-element 13:1 zoom high-resolution optic system
Zoom aperture: 4° to 52°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
160 mm frontal lens
LIGHT SOURCE
35,000 lumens white light engine
Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode)
Colour temperature output: 6500 K
Variable CRI: 70 to 86
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CTP
Fixed colour wheel with seven complimentary colours

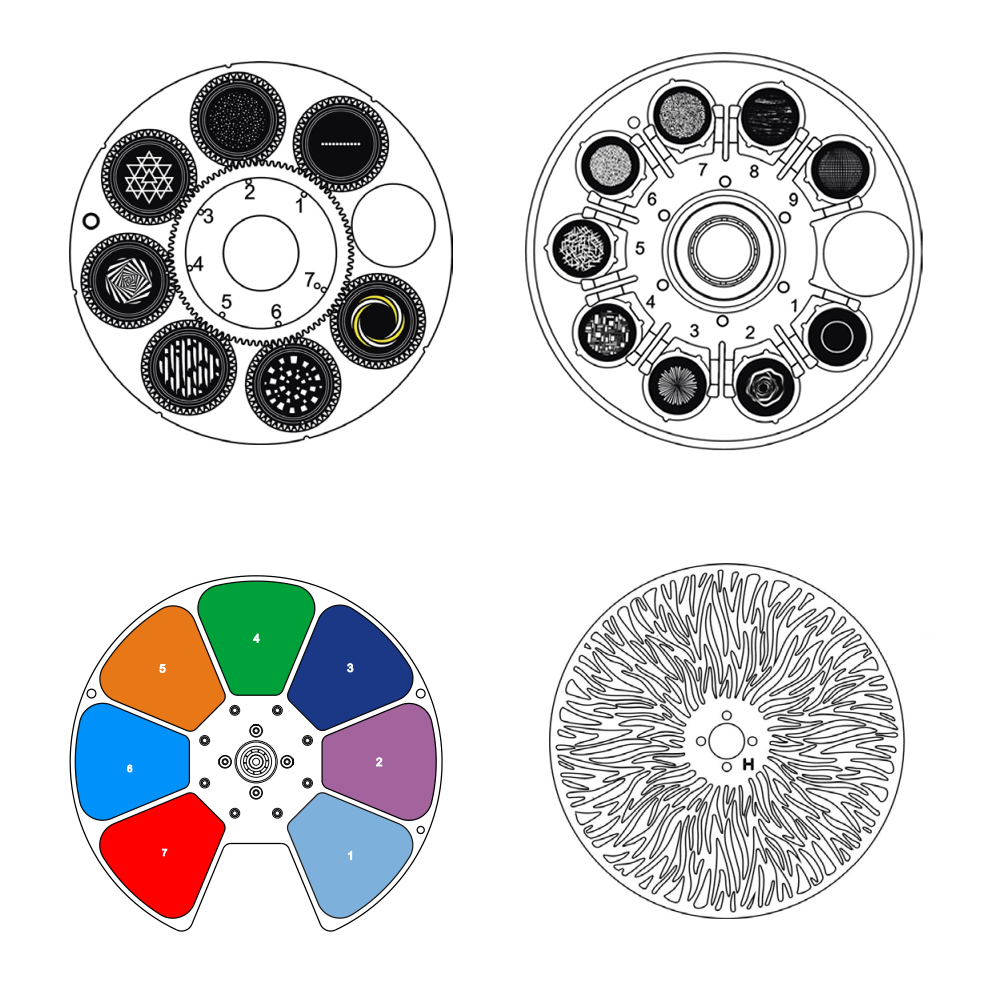

GOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed gobo wheel with 9 high-precision glass gobos, plus open position
Gobo diameter: 25.5 mm
Image diameter: 18 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: ± 90°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions
2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set the functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

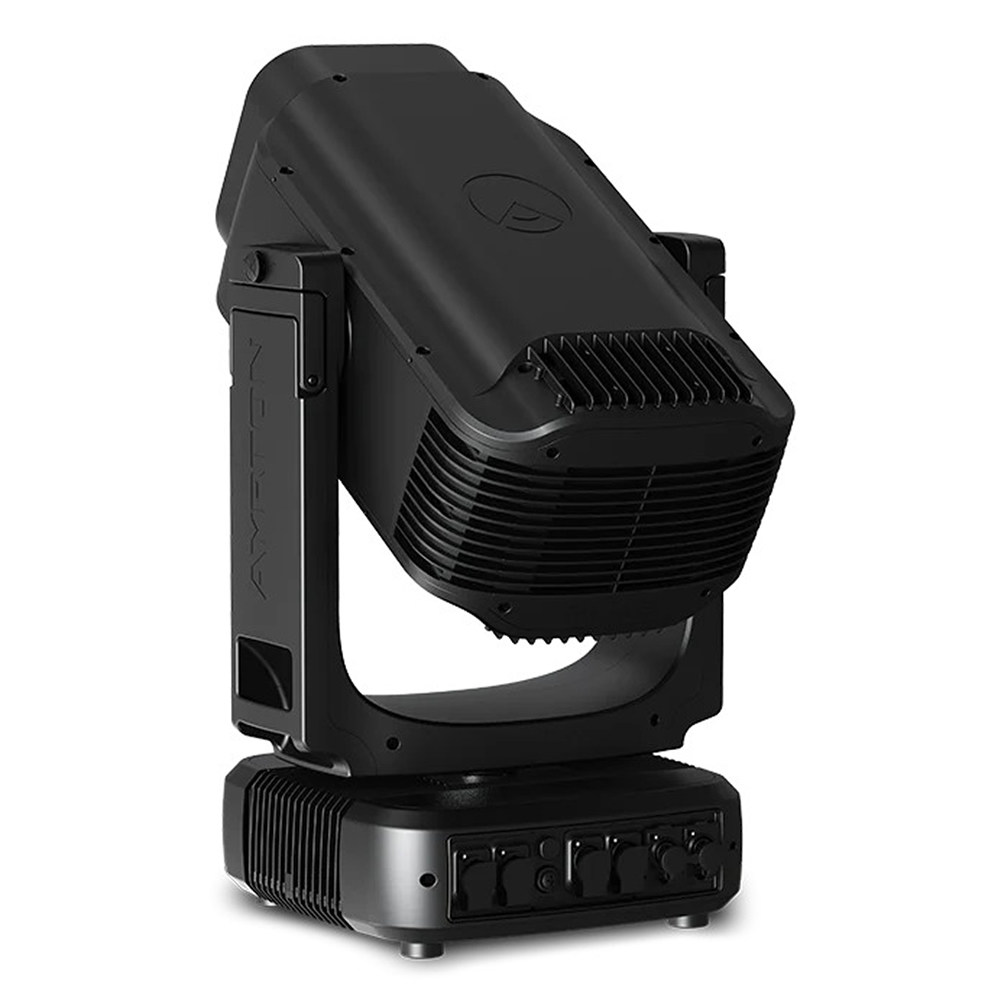

IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male and female connectors for power connection
Maximum Current available at the output socket: 12 A
CONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 2 DMX modes (from 42 to 65 DMX channels)
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 700 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Super Silent Mode
Safety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45°C (113°F)
Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
Minimum usage distance: 3 m (9.84 ft)
COMPLIANCE
EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2018
SUBSTANCE REGULATIONS
RoHS
REACH
CP65
SIZE
Product: 360 x 676 x 316 mm (l x h x d)
Flight-case foam: 560 x 565 x 485 mm (l x h x d)
WEIGHT
Product: 30.8 kg
