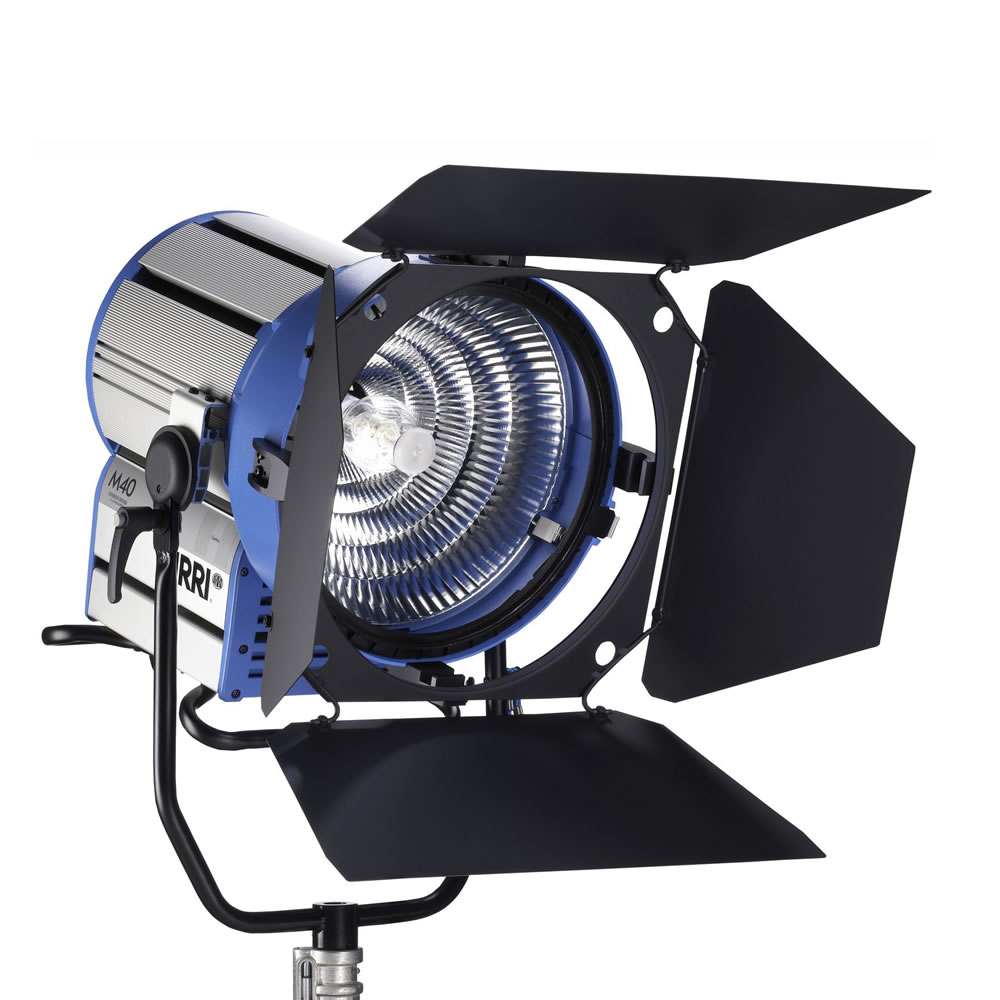

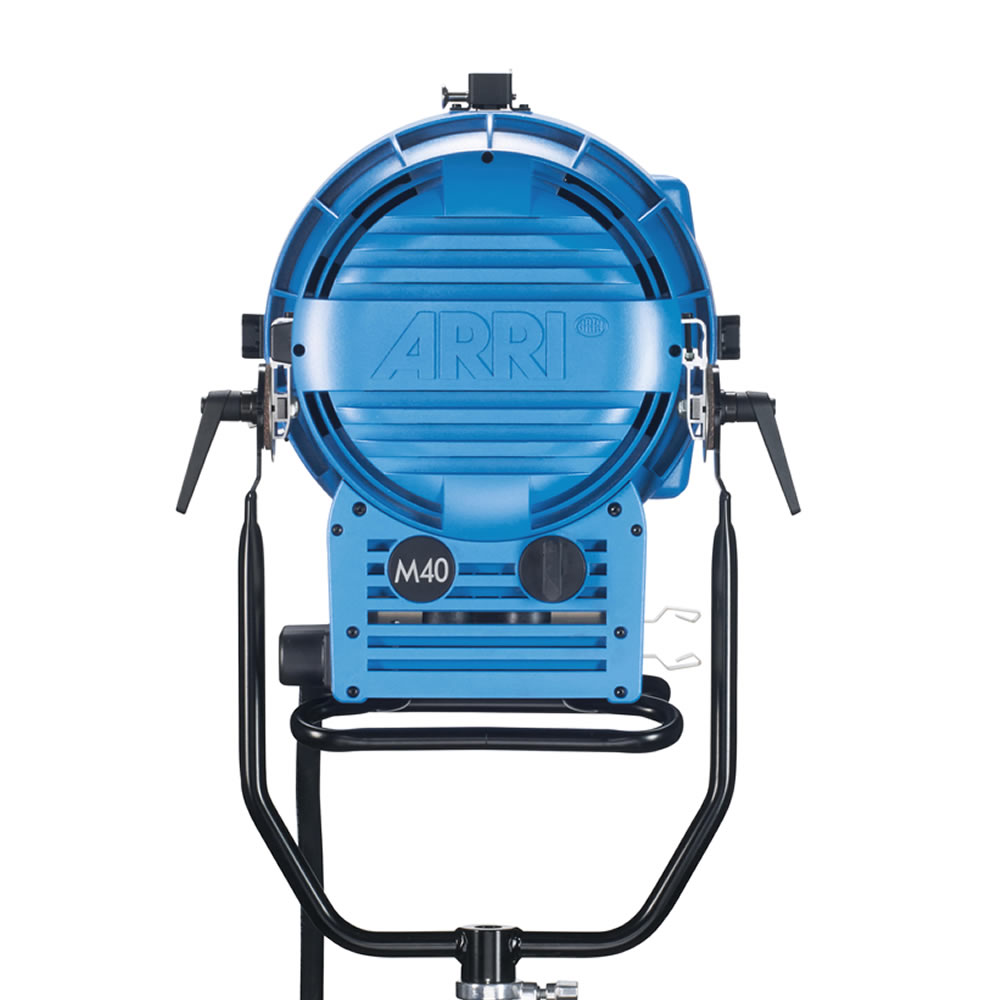

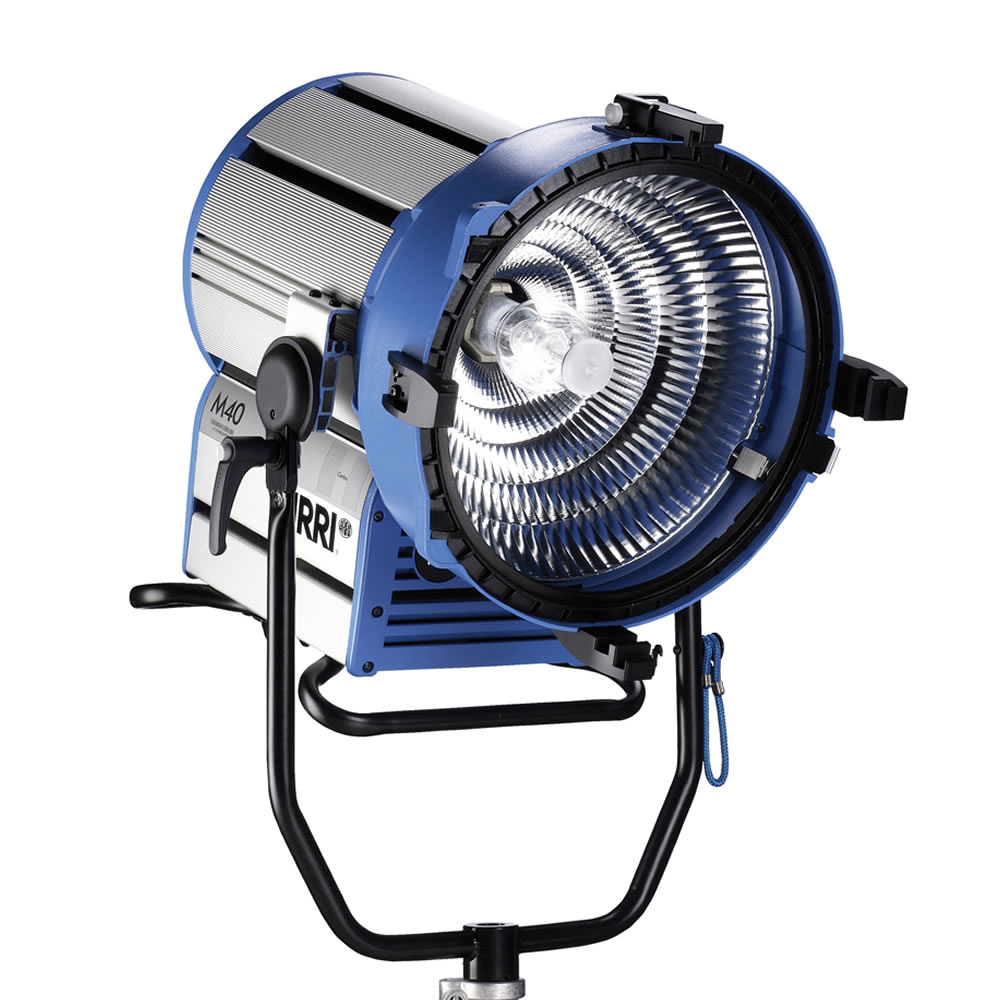

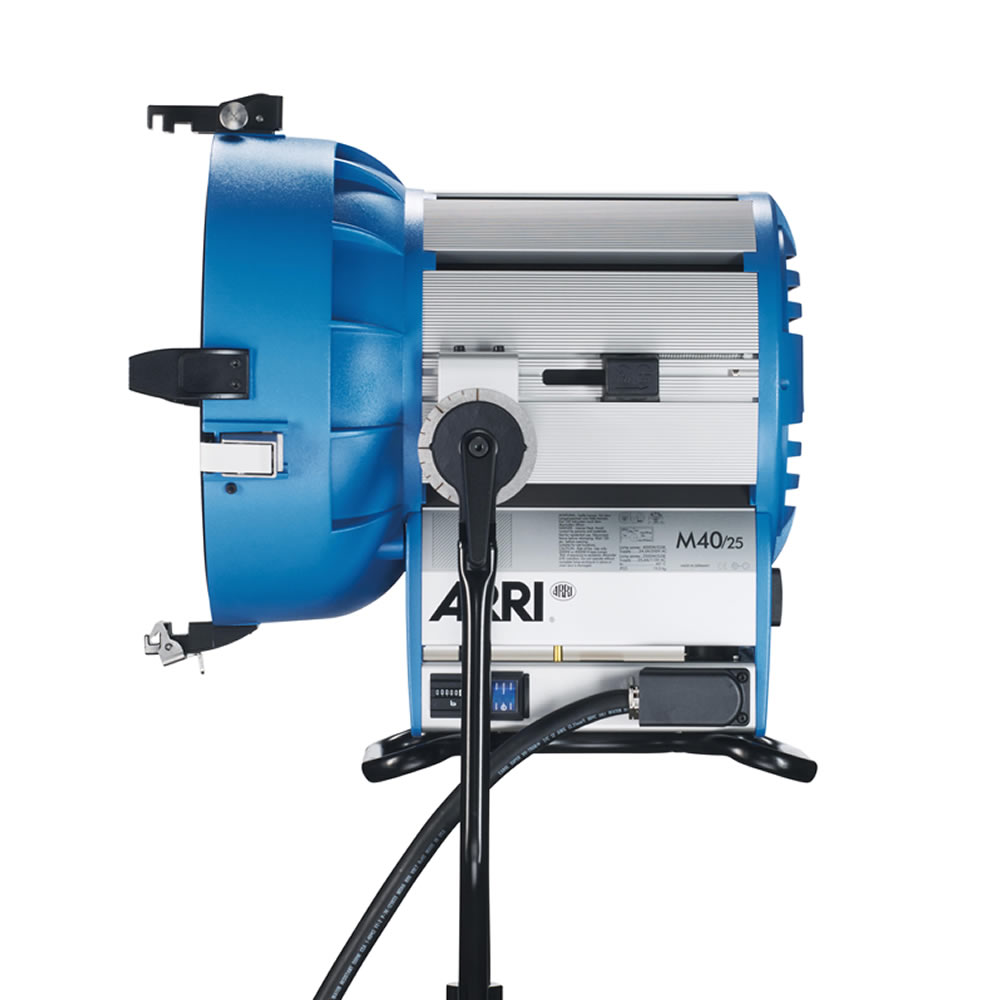

Arri M40 4000W MSR Par Head
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focusable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.
Features
- Lens-less MAX Technology: Easy to use
- Around 30 % brighter than AS 4
- Can also be used with 2,500 W lamps and ballasts
- Cross Cooling allows safe operation at any tilt angle
- Suitable for high frame rate images
- Protection class IP23
Comes complete with:
- Head
- Barndoors
- Spill Ring
- Scrim Set
- Header Cable
- 1200/1800W/2500W/4000W Electronic Ballast
- Mains Plug: VEAM, Schaltbau (GTV-Standard)
- Lamphead Type: Open Face with Facetted Reflector, 2500 / W
- Reflector: MAX Technology reflector made of high purity aluminium
- Lamp Type: Metal Halide 4,000 W/SE; Metal Halide 2,500 W/S
- Power Consumption: 4,000 W / 2,500 W
- Lamp Base: G38
- Dimming: yes, 50 to 100 % via Ballast Unit
- Correlated Color Temperature: 6,000 K
- Beam Angle: 18° to 52° (with 4000 W lamp)
- Weight in kg: 20 kg
- Lens / UV-Protection Glass Diameter: 350 mm
- Accessory Diameter: 400 mm
- Barndoor: 413 mm
- Mounting: Spigot 28 mm / 1 1/8" (1.1")
- Housing Color: Blue/Silver
- Protection Class: IP23
