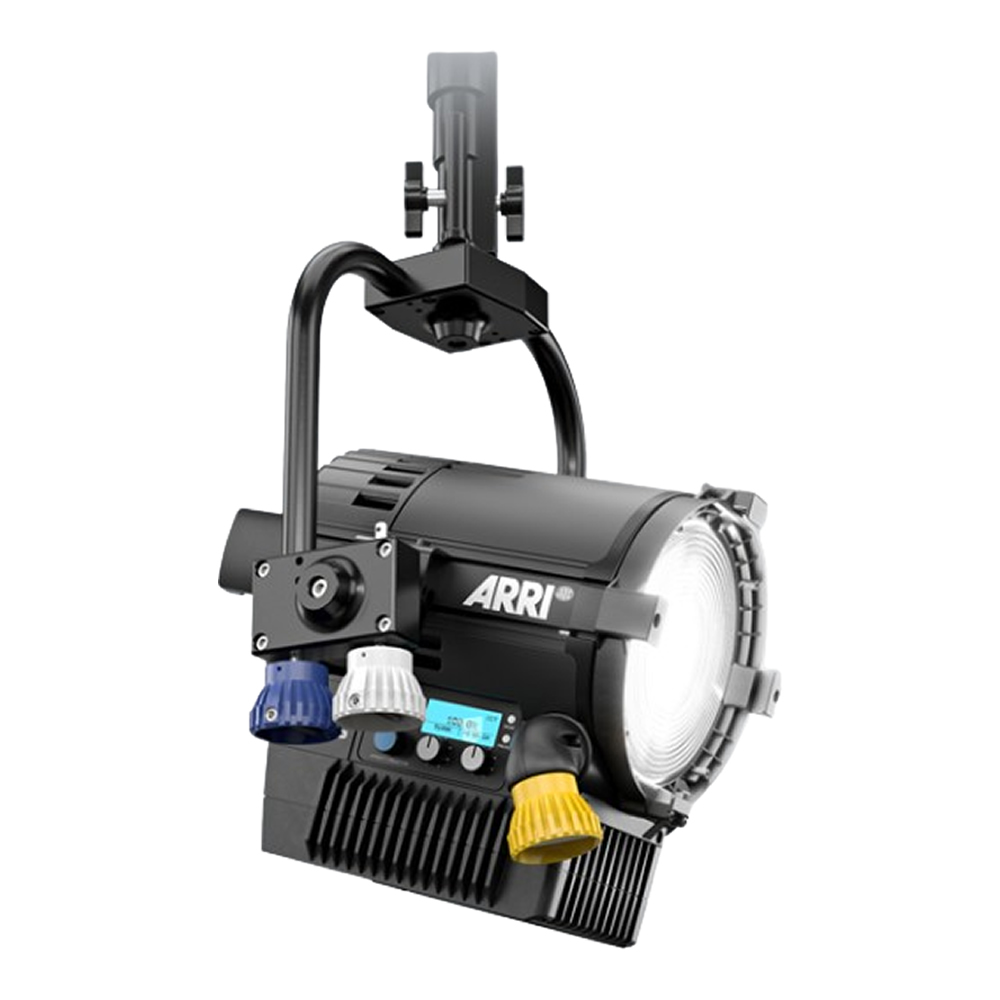

Arri L7-C LE 2 LED Fresnel P/O
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry
The ARRI L7-C is a 7-inch LED Fresnel spotlight that combines the focus-ability and beam-shaping qualities of a traditional tungsten Fresnel with the energy efficiency and color control of modern LED technology.
Key Features
True Fresnel Optics: Features a 7-inch lens with continuous focusability from spot to flood, producing crisp, defined shadows.
Tunable Color: Continuously adjustable color temperature from 2,800K to 10,000K with full plus/minus green correction.
RGBW Color Mixing: Offers full hue, saturation, and RGB+W color control, making physical gels obsolete.
Energy Efficient: Draws a maximum of around 220W while outputting a comparable light level to a traditional 1kW tungsten Fresnel.
Cool Operation: Emits a completely cool light beam, lowering studio air conditioning costs and ensuring crew comfort.
Control: Fully dimmable from 0 to 100% without color shifting, with onboard controls and integrated 5-pin DMX in/through.
LIGHT ENGINE 2 - L7-Cs with the new LE2 are 25 % brighter than previous L7-C versions.
Optical System: Focusable Fresnel
Light Aperture / Lens Diameter in mm: 175 mm
Beam Angle15° to 50° Half Peak Angle
Pole Operated Version Weight: approx. 10.0 kg
Measurements (HxWxL) incl. Pin: Pole Operated Version: 582 x 357 x 351 mm
Handling: Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus)
Mounting: 28 mm Spigot
Tilt Angle: +/- 90°
Lamphead Voltage Input: 100 - 240 V ~, 50 - 60 Hz
Power Consumption: 220 W Maximum
Power Connection: PowerCON TRUE1
White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition: CRI Average > 94, TLCI Average > 90
Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % continuous
Control: 5-Pin DMX In and Through, On-Board Controller, Mini-USB
Wireless Control: Not integrated, via SkyNode
Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB Interface: DMX Setup, Fixture Status and Firmware Upgrade through PC
Housing Color: Black
Ambient Temperature Operation: -20 to +45° C (-4 to +113° F)
Protection Class / IP Rating: I / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime (CCT): +/- 5 %
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE
